Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
STC4D-140C |
1.4M/ICX285AQ(C) |
6.45x6.45 |
1240mv with 1/30s |
15@1360x1024 |
1x1 |
0.12ms~240s |
|
STC4D-140M |
1.4M/ICX285AL(M) |
6.45x6.45 |
1300mv with 1/30s 11mv with 1/30s |
15@1360x1024 |
1x1 |
0.12ms~240s |
|
STC4D-44M |
0.44M/ICX829AL(M) |
8.6X8.3 |
2800mv with 1/30s 2mv with 1/30s |
46@748X578 |
1X1 |
0.20ms~3600s |
|
STC4D-30M |
0.3M ICX618AL(M) |
5.6x5.6 |
1200mv with 1/30s 4mv with 1/30s |
72@640x480 |
1x1 |
0.06ms~40s |
|
Other Specification for STC4D Cameras |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment /NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTM Color Engine /NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System |
Natural |
|
Operating Environment |
|
|
Operating Temperature(in Centigrade) |
-10~ 50 |
|
Storage Temperature(in Centigrade) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
USB Port:USB2.0 High-speed Port |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|
Dimension of STC4D

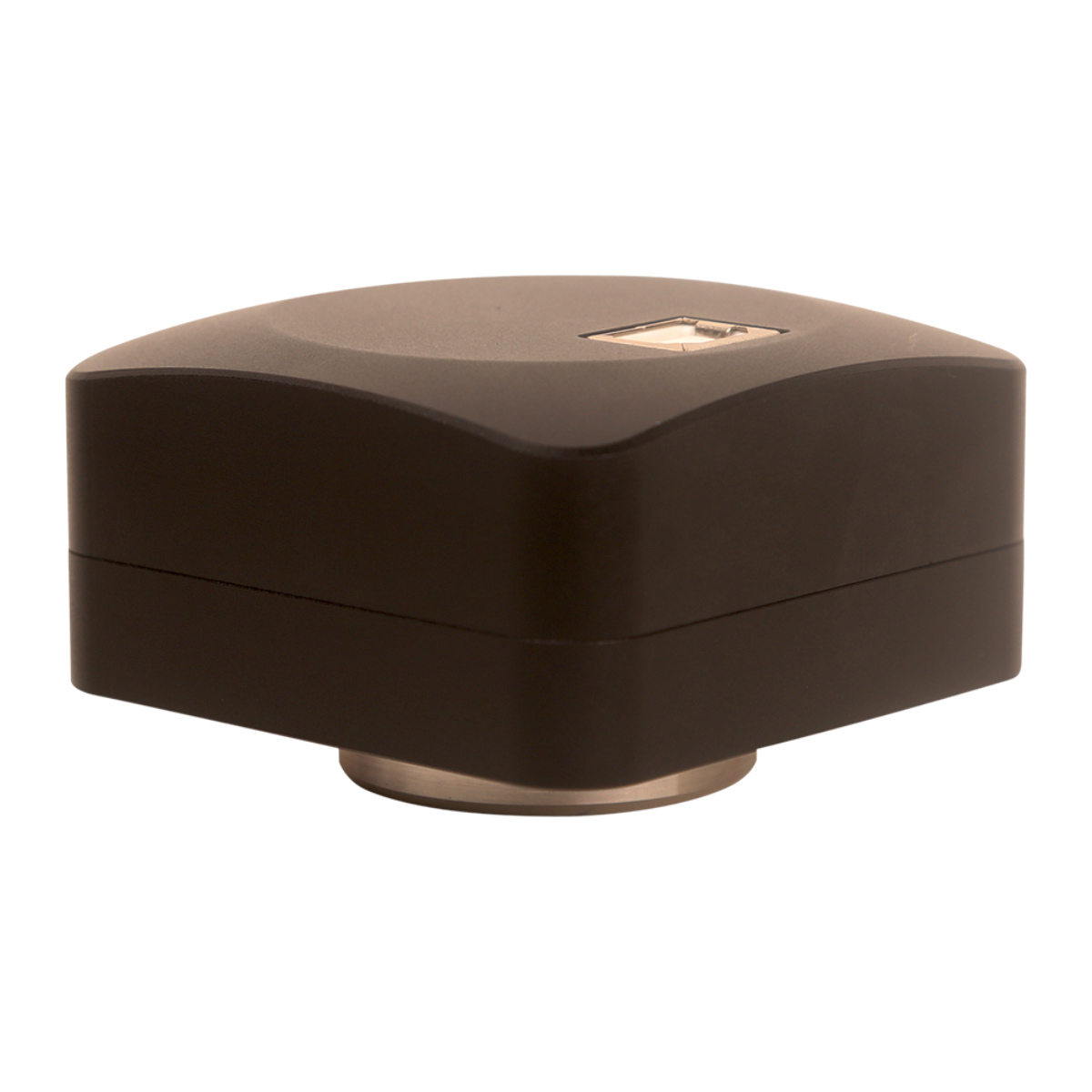

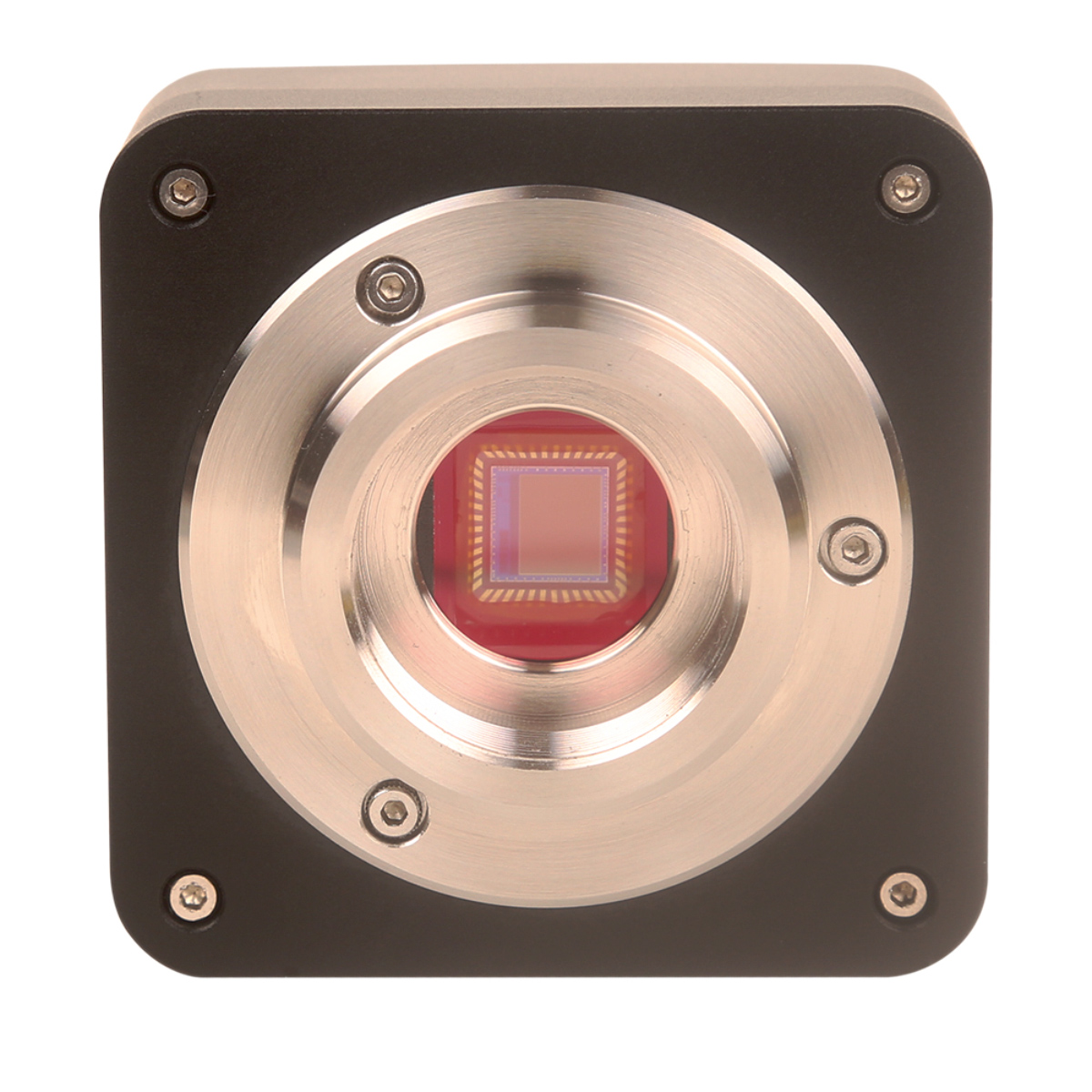

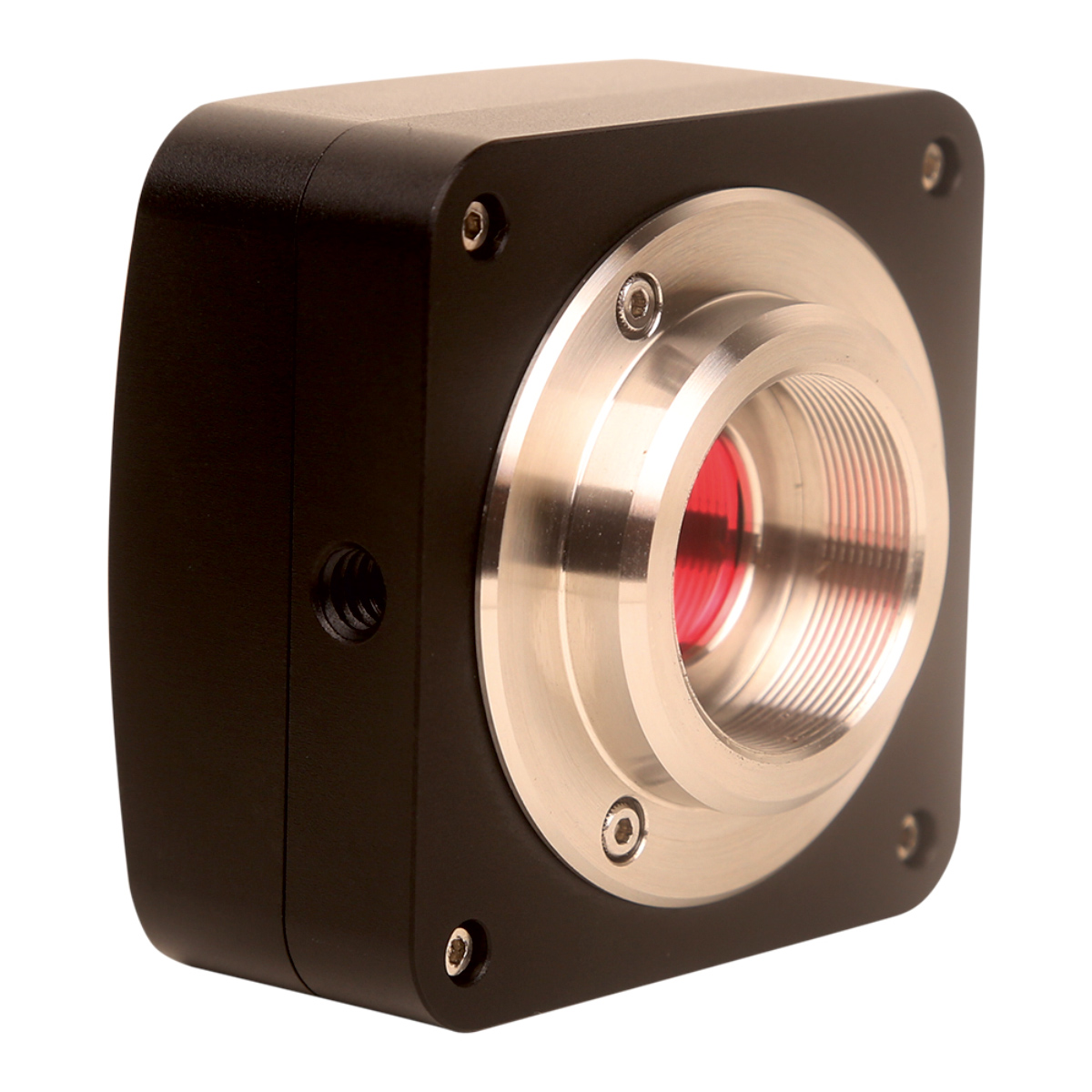

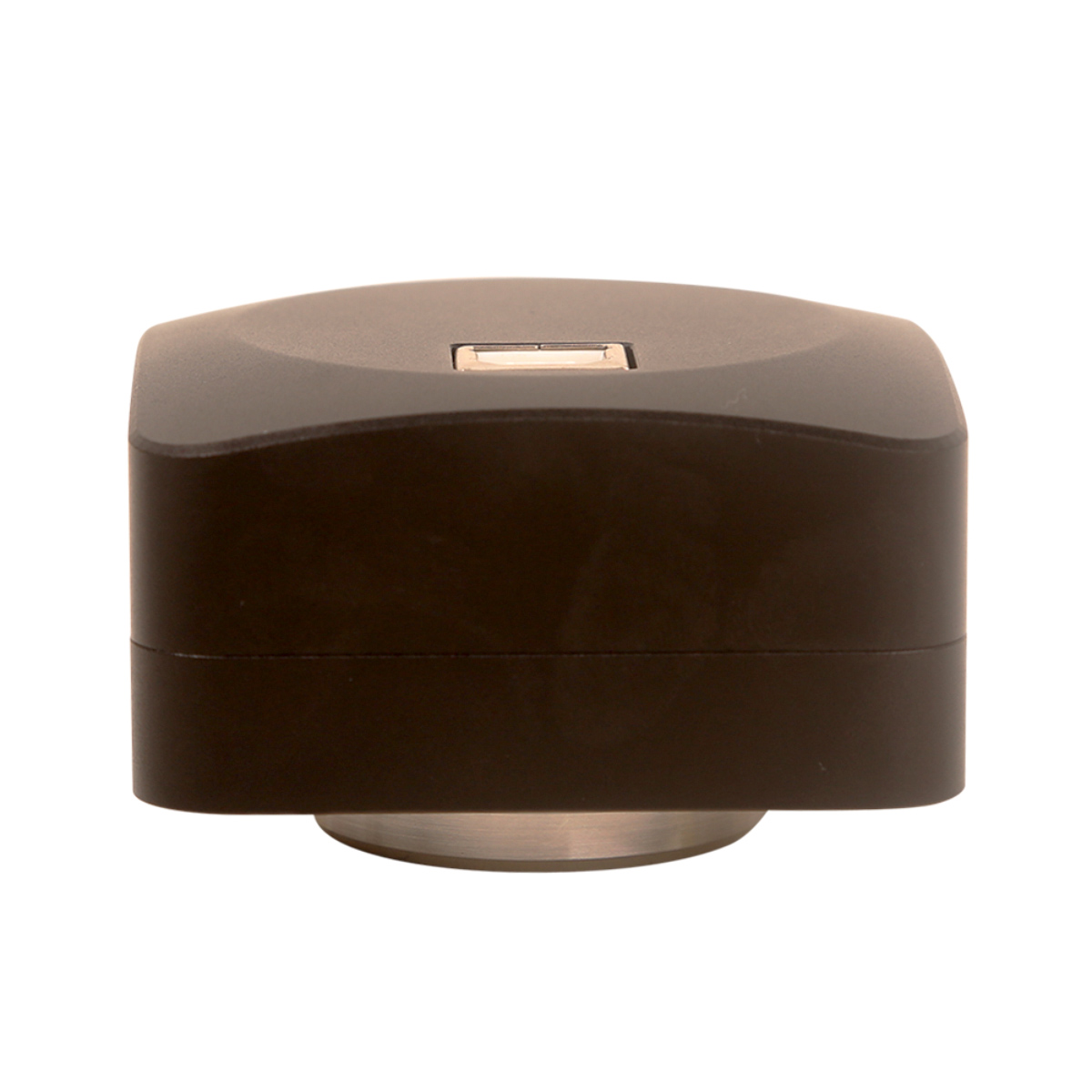

The STC4D body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
|
