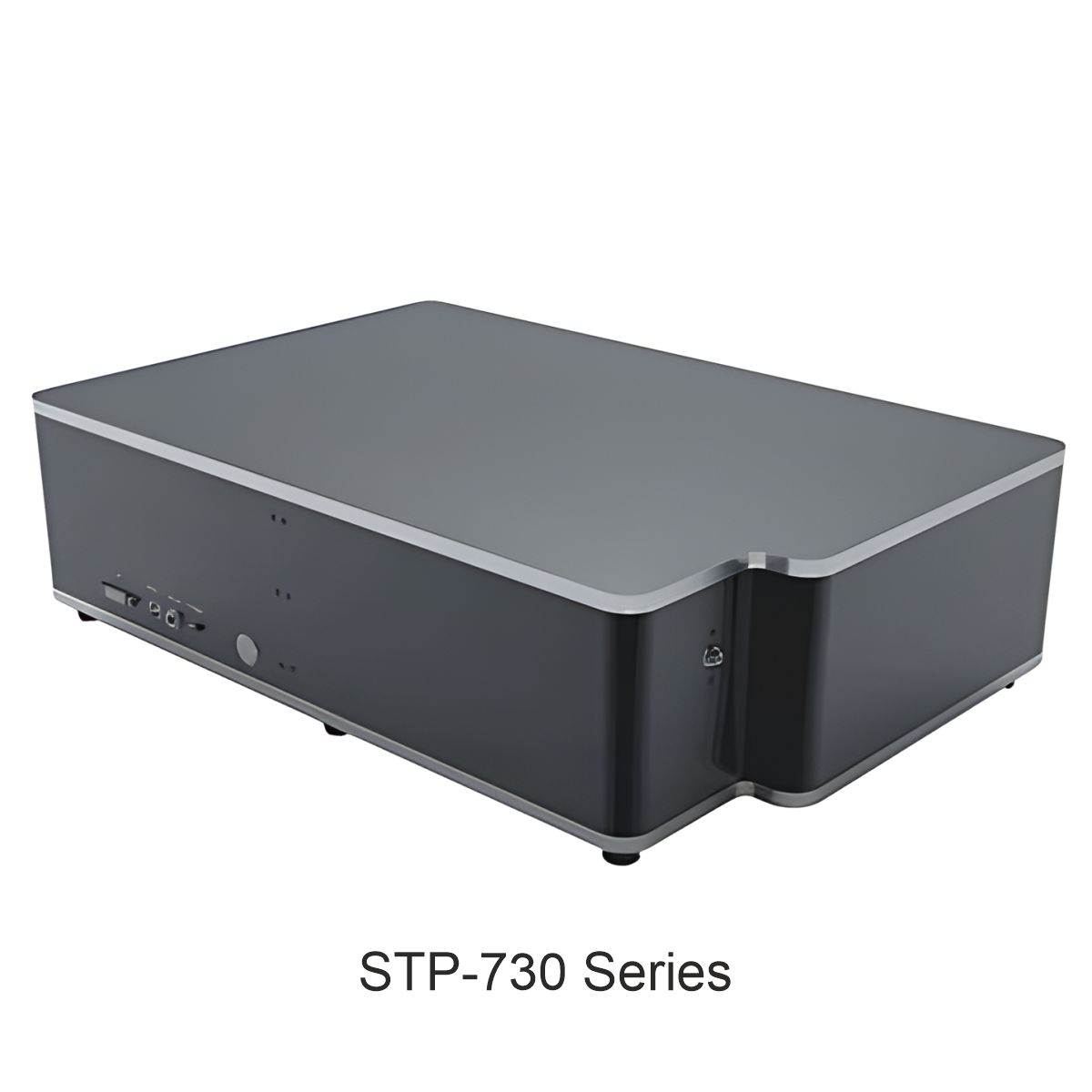

STP-730 Series
Ultra High Resolution Grating Spectrometer

STP-730 spectrometer is an ultra-high resolution spectrometer developed by Stalwart with 20 years of spectrometer development experience. After five years of research and development, STP-730 spectrometer adopts reflective grating, which is convenient for quick replacement. The grating tower wheel is controlled by software, which can accurately locate the grating and test wavelength.
The STP-730 system uses a simulated and optimized optical system to ensure high resolution. This design provides the possibility of multi fiber imaging at the same time by correcting the aberration. STP-730 series has multiple input and output options, providing endless possibilities, scalability and diversity for researchers. Both single point detectors and array cameras can be used.
STP-730 spectrometer has four models with different focal lengths: 210, 350, 510 and 760mm. Different from prism spectrum or transmission grating, each STP-730 can cover applications from ultraviolet to near-infrared and short wave infrared bands. Just select the appropriate grating, you can have more freedom in the selection of wavelength and resolution.
STP-730 spectrometer can receive SMA905 fiber input light or free space light, and output the measured spectral data through USB2.0 or UART port.
STP-730 spectrometer only needs a + 12V DC power supply, which is very easy to use. All the controls can be electrically controlled by software.

Quantity :
  • Features
  • Specifications
  • Application
  • Accessories
  • Literature

Features

  • Ultra high resolution, up to 0.01nm;
  • Four different lengths customized: 210, 350, 510, 760mm
  • Wavelength range: 150nm-25 um (Customized)
  • Tower rotation grating, built-in 3 gratings, multiple gratings optional: 90, 150, 300, 400, 500, 600, 900, 1200, 800, 2400, 3600 line;
  • Power supply: DC 12V@<4A;
  • ADC depth: 18 bit (output 16bit);
  • Multiple optical input interfaces: SM905 fiber interface or free space input;
  • Dual-output with two CCD configured (Si CCD & InGaAs CCD);
  • Crossed C-T light path and toroidal aberration calibration design;
  • The control of the instrument (such as grating conversion, wavelength scanning, etc.) is all controlled by computer
  • Data output interface: USB2.0 & UART;
  • 15-pin expansion interface;
  • SMA external trigger signal;
  • Multiple attachment can be select.

Specifications

Detector

Model

TE Cooled CCD, TE Cooled InGaAs CCD, PbS, Pyroelectric

Wavelength Range

150nm-25 um

Effective Pixels

CCD: 2048, SWIR InGaAs CCD: 512, PbS & Pyroelectric: 256

Optical Parameter

Wavelength Range

150nm-25 um, Customized

Optical Resolution

10 pm ~ 5 nm (Depend on different focal length, slit size, spectral range)

Max. Dynamic Range

SCMOS & CCD: >1400; SWIR InGaAs: >10000

Light Path Parameter

Optical Design

Asymmetric Cooled C-T Optical Path

Focal Length

210, 350, 510 & 760mm

Grating

Tower rotation grating, built-in 3 gratings, multiple gratings optional: 90, 150, 300, 400, 500, 600, 900, 1200, 1800, 2400, 3600 line;

Grating Rotation Mode

Electronic Control

Grating Rotation Angle

0.36 μrad

Input Slit Width

5, 10, 25, 50, 100, 150, 200 μm Customized

Incident Light Interface

Support dual entry: SMA905 fiber interface, free space

Output Optical Interface

Support dual entry.

Electrical Parameters

Integration Time

10μs - 256s

Data Output Interface

USB 2.0

ADC depth

18bit(output 16bit)

Power Support

12V DC±5%

Working Current

<4A

Working Temp.

-20°C ~ +45°C

Storage Temp.

-30°C ~ +70°C

Max. Working Humidity

< 90%RH (No Condensation)

Physical Parameters

Dimension & Weight

STP-730FL2: 600*400*155mm,15kg

STP-730FL3: 23 Kg

STP-730FL4: 35Kg

STP-730FL5: 45Kg



Application

  • Raman Spectroscopy;
  • Fluorescence Spectroscopy;
  • Photoluminescence Spectroscopy;
  • Absorption, Reflection & Transmission Spectroscopy;
  • LIBS;
  • Microscope.


Selection Table

PN

Focal Length

Aperture Ratio

PMT Resolution*

CCD Resolution**

Linear Dispersion

STP-730FL2

210mm

F/3.5

0.4 nm

0.4 nm

4.17 nm/mm

STP-730FL3

350mm

F/4.2

0.1 nm

0.14 nm

2.38 nm/mm

STP-730FL4

510mm

F/6.5

0.07

0.09

1.65nm/mm

STP-730FL5

760mm

F/9.7

0.04

0.05

1.03nm/mm



Notes
1. with 1200 g/mm grating @ 435.8 nm and 10μm slit width and 4 mm slit height

2. with 1200g/mm grating @ 435.8nm 14μm pixel, 20μm slit width



Accessories

  • Various fibers.
  • Filter runner;
  • Light source;
  • 17 kinds of gratings optional;
  • Wavelength calibration and intensity calibration system;

Detachable Three-stage Grating Tower Wheel

  • Each tower wheel can be installed with three gratings, which can be freely selected when order in.
  • The tower wheel has optical installation interface, which can be calibrated automatically after installation.
  • Wavelength coverage, luminous flux and resolution can be optimized according to requirements.

 Customize Detector

Spectral range

Model

Types

Material

Response range

Pixels

Cooled

<1100nm

STP-S1

Cooled back-illuminated area array CCD

Si

50~1100nm

2048X64

-20℃

STP-S2

Deep-cooling back-illuminated area array

2048X264

-70℃

STP-S3

Deep-cooling area array EMCCD

1600 x 200 1600 x 400

-100℃

STP-S4

Unit Si detector

1X1

-10℃

STP-S5

ultra-low temperature cooled CCD

2048X264

-130℃

STP-S6

Liquid nitrogen cooled CCD

2048X264

-190℃

900~2500nm

STP-S7

Cooled linear array InGaAs CCD

InGaAs J11

900~1700nm

512X1

-20℃

STP-S8

Refrigerated linear array InGaAs CCD

InGaAs J13

900~2500nm

512X1

-20℃

STP-S9

Unit InGaAs detector

InGaAs J11

900~1700nm

1

-20℃

STP-S10

Unit InGaAs detector

InGaAs J13

900~2500nm

1

-20℃

>2.5μm













STP-S11

Unit PbS detector

PbS

1~3μm

1

-20℃

STP-S12

Cooled line array PbS detector

PbS

1~3μm

256X1

-20℃

STP-S13

Cooled unit pyroelectric detector

Pyroelectric

1~25μm

1

-20℃

STP-S14

Cooled linear array pyroelectric detector

Pyroelectric

1~25μm

256X1

-20℃
