Features

Multi-channel modular combination, which can combine multiple dosing units; supports 4 dosing units to work at

the same time, free combination, no need to install and disassemble parts, and each module can be simply sideby-

side to form an instrument system

4 types of standard burettes for adding liquid can be selected arbitrarily, and the experimental application is more

targeted; standard 10mL, optional 1mL, 5mL, 25mL

Built-in dosing unit, multiple guarantees against the danger of reagent spillage; minimize the risk of operators

Multiple self-check functions, simplify the operation process and avoid misoperation

With the application editing function, the user can generate a special titration mode according to the experiment

and store it, and the next one-click retrieval

With the audit trail function, the effective operation of the instrument will be recorded in the background and

cannot be deleted

Have user hierarchical authority management, and can check the specific use authority when creating an account

With the function of password aging, each account can set the validity period of the password. After the

expiration, it is mandatory to change the password before logging in to the instrument.

With password complexity setting, you can set the password complexity according to your needs

Support the manual setting of endpoints and save as associated data to reduce unnecessarily repeated

experiments

Hybrid Synchronized Liquid Feeding System

Up to 4 channels, any combination of titrants, additives or auxiliary reagents frees the complicated liquid feeding

requirements from manual operations.

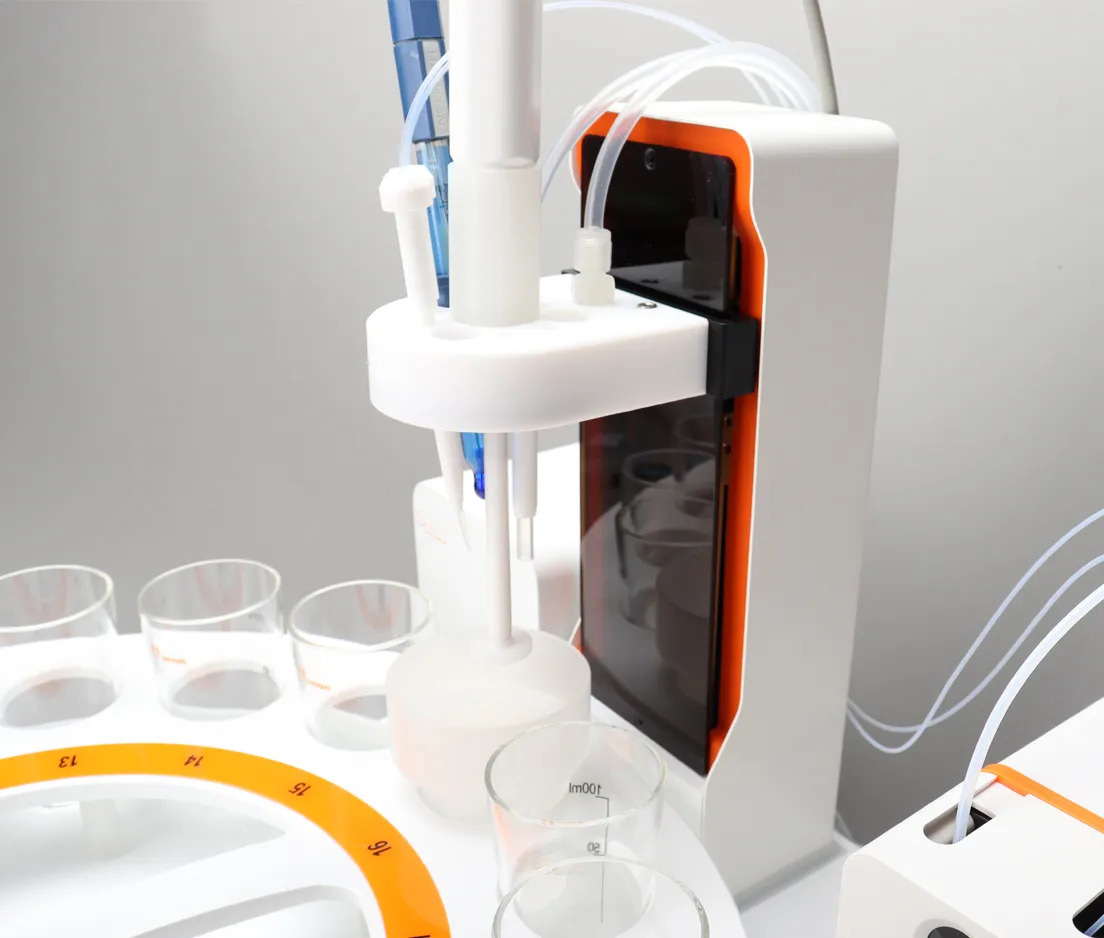

Built-in Burette

Built-in burette, the burette is built into the instrument, and the burette can be observed externally through the

window, so that the solution is separated from the personnel during the running process and avoids spillage and

damage to the operator. Volumetric burette optional: 1mL/5mL/10mL/25mL.

Multiple Measurement Modes

MEAS: measure pH/mV/T, CAL: pH calibration, SET setting end point mode, MET equivalent titration, MET

equivalent titration second-order derivative method (chlorine ion measurement), DET dynamic titration, constant

pH titration, manual titration, etc.

Multiple Titration Modes

Acid-base titration, redox titration, silver volume titration, complexometric titration, dead-stop titration.

Wireless Wi-Fi Module

W9605 wireless Wi-Fi module, the wireless connection between the computer and the titrator, remote control of

the instrument, reducing the time when the experimenter is in close contact with chemical reagents.

Specifications

Models	T960 Basic	T960 Pro
Titration module	Potentiometric	Potentiometric, Dead-stop
mV Measuring range:	-2000.0mV～+2000.0mV	Standard
mV Measuring:	Resolution: 0.1mV, Accuracy: 0.1mV±0.03%	Standard
pH Measuring range:	-20.000pH～+20.000pH	Standard
pH Measuring:	Resolution: 0.001pH Accuracy: 0.003pH	Standard
Temp.Measuring range:	-5～120℃	Standard
Temp. Accuracy:	±0.1℃	Standard
Maximum number of titration modules	4 (2 modules in the standard package)	Standard
Maximum number of simultaneous filling modules:	4 (2 modules in the standard package)	Standard
Burette optional	1mL 5mL 10mL 25mL(10ml burette in the standard package )	Standard
Burette resolution	1/1500000	Standard
Burette refill time:	16 seconds (100% filling speed)	Standard
User grading management system	3 level (Customizable operation permissions)	Standard
Audit trail	Optional	Standard
Controlled by	PC	Standard
WiFi module	Optional	Standard

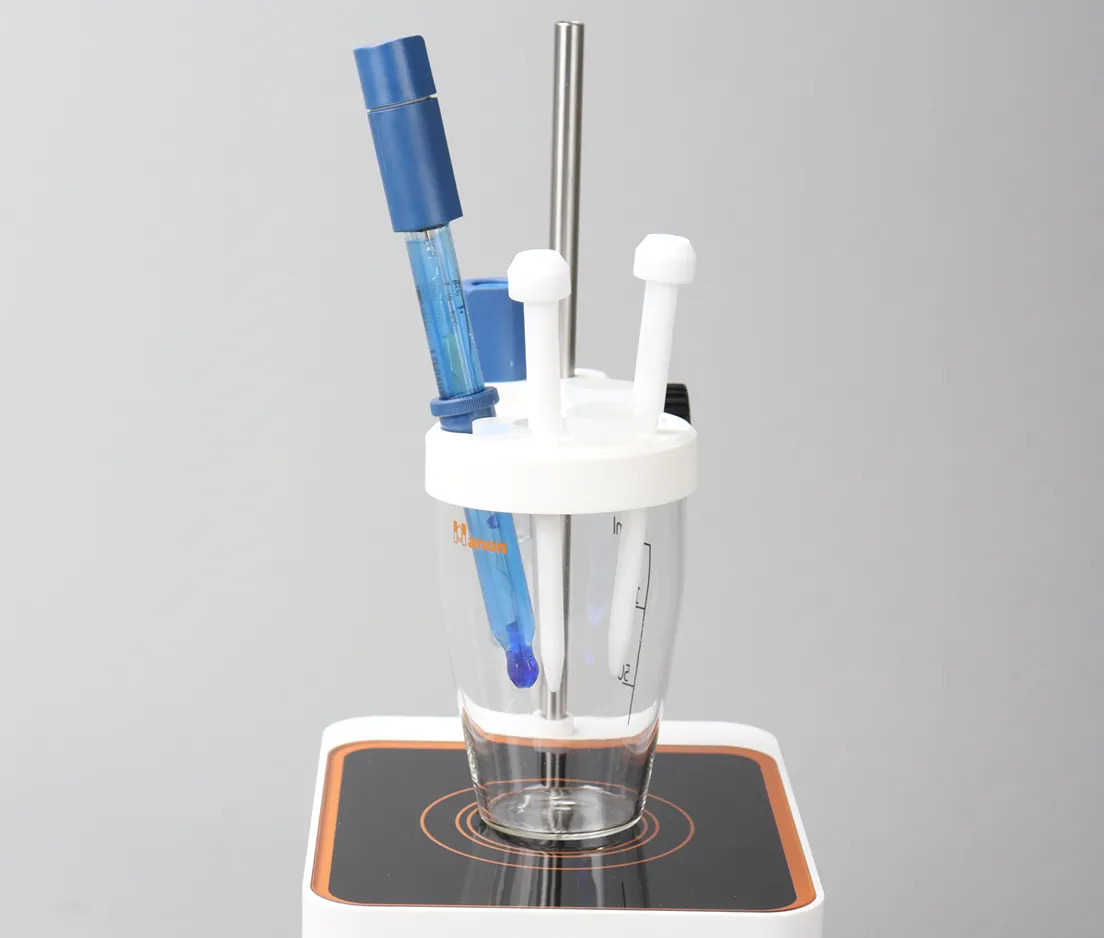

Stirring	Magnetic stirring, upper stirring (optional)	Standard
Electrode interface type:	mV/pH measuring electrode interface, reference electrode interface,	mV/pH measuring electrode interface, reference electrode interface,
Electrode interface type:	PT1000 temperature electrode interface	PT1000 temperature electrode interface, polarized electrode interface

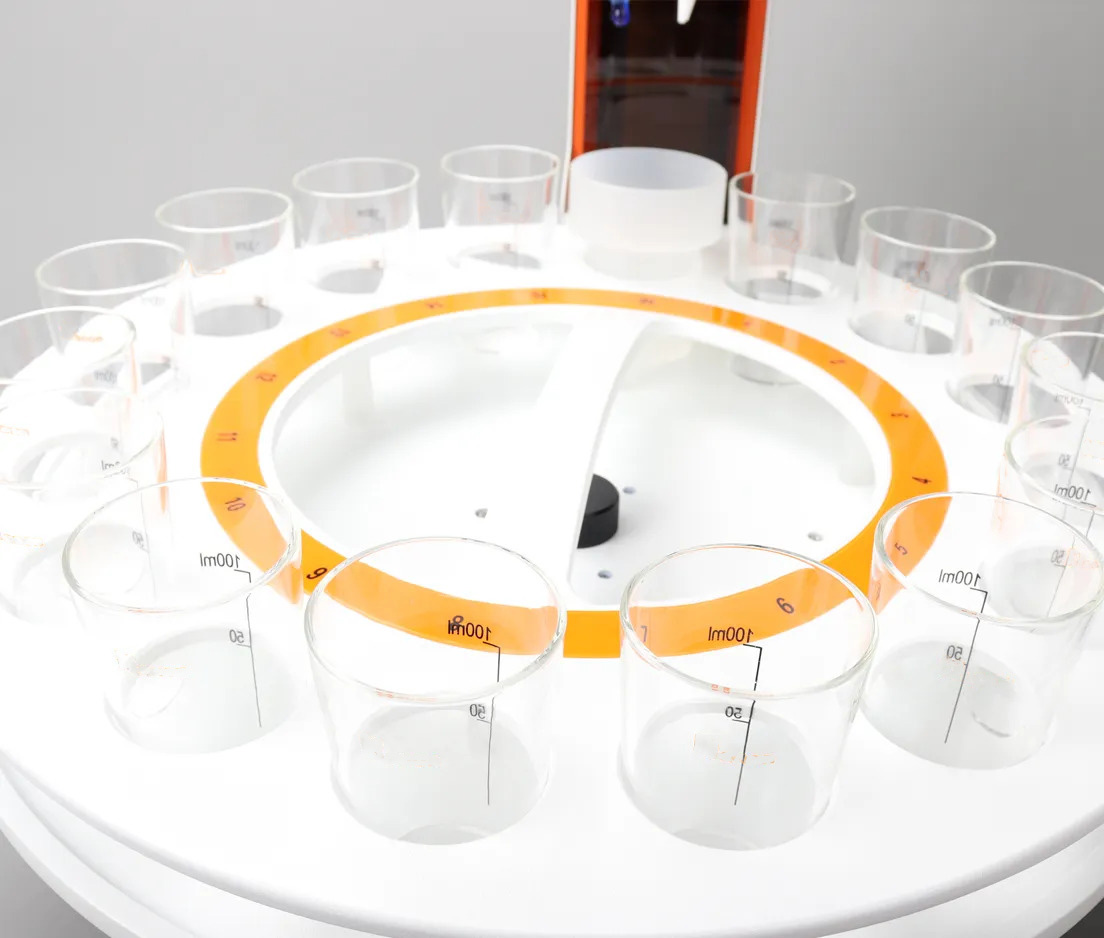

Autosampler (Optional)	Equipped with 1 independent analysis station, optional 16-position 100mL autosampler, 12-position 250mL autosampler, and 18-position 50mL autosampler

Literature

ST-961.pdf
