Stalwart

Features
Specifications
Application
Literature
User Manual

Features

New machining facility and advanced alignment technology;
Comfortable operation with updated and ergonomic design;
LED light illumination, save energy and long working life;
Compact and flexible, ideally suited for desktop, laboratory worktable;
Eyepoint height and interpupillary distance can be adjusted to fit for oSTMervation.

Specifications

Item	Specification	STM-2022M	STM-2022B	STM-2022T	STM-2022BD
Viewing Head	Seidentopf Monocular Head, Inclined at 30°, 360° Rotatable	Standard
	Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm,		Standard

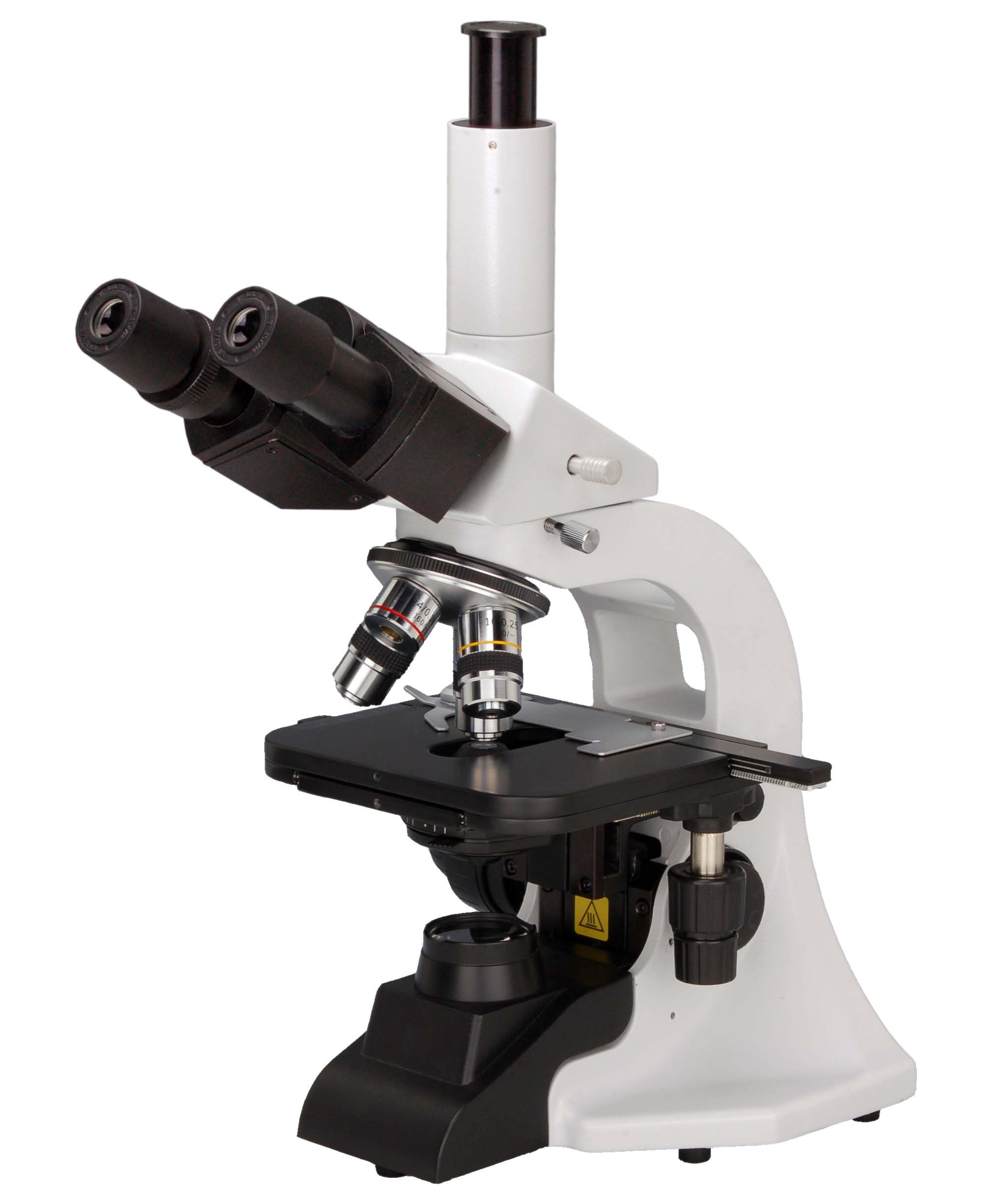

	Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm			Standard

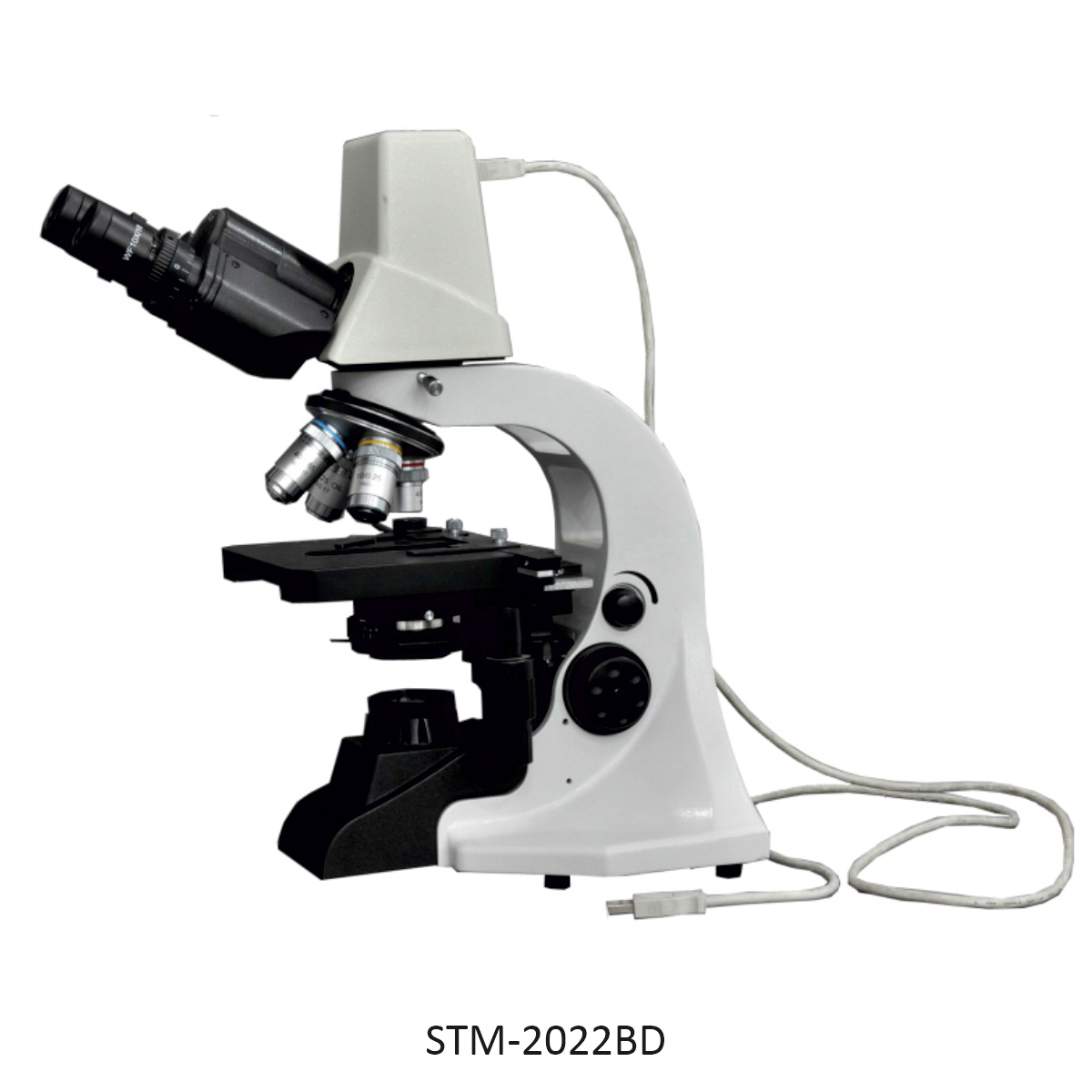

	Seidentopf Binocular Head with 3.2MP digital camera, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm, the software is ScopeImage 9.0				Standard
Eyepiece	WF10×/18mm	Standard	Standard	Standard	Standard
Eyepiece	WF16×/11mm	Optional	Optional	Optional	Optional
Objective	Achromatic Objective 4×, 10×, 40×, 100×(Oil)	Standard	Standard	Standard	Standard
	Plan Achromatic Objective 4×, 10×, 40×, 100×(Oil)	Optional	Optional	Optional	Optional
	Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×(Oil)	Optional	Optional	Optional	Optional
Nosepiece	Backward Quadruple Nosepiece	Standard	Standard	Standard	Standard
Stage	Double Layer Mechanical Stage 132×142mm/ 75×40mm	Standard	Standard	Standard	Standard
Focusing	Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm	Standard	Standard	Standard	Standard
Condenser	Abbe NA 1.25 with Iris Diaphragm and Filter	Standard	Standard	Standard	Standard
Illumination	1W S-LED illumination, Brightness Adjustable	Standard	Standard	Standard	Standard
	12V/ 20W Halogen Lamp, Brightness Adjustable	Optional	Optional	Optional	Optional
	Kohler illumination	Optional	Optional	Optional	Optional
Optional Accessories	Phase Contrast Kit	Optional	Optional	Optional	Optional
	Dark Field Attachment	Optional	Optional	Optional	Optional
	Polarization Attachment	Optional	Optional	Optional	Optional
	Rechargeable battery	Optional	Optional	Optional	Optional
	Photo Adapter: used for Nikon or Canon DSLR camera	Optional	Optional	Optional	Optional
	Video Adapter: 1X or 0.5X C-mount adapter	Optional	Optional	Optional	Optional
Package	1pc/carton, 32cm26cm44cm, 6kg	Standard	Standard	Standard	Standard

Application

STM-2022 series microscopes are ideally suited for school biological education and medical analyses area to oSTMerve all kinds of slides. They can be widely used in clinics, hospitals, schools, academic laSTM and scientific research department.

Literature

STM-2022 Series Brochure

User Manual

STM-2022 User Manual
