Order Code |
Active Area(Inch) |
Video Fomat |
Resolution |
Contrast |
Color(Million) |
View Angle |
|
SD1080LCD |
11.6 |
HDMI |
1080P |
1000:1 |
16.7 |
IPS Full View |
|
Basic Performance |
|
|
LCD Panel |
Panasonic IPS LCD Screen(Super TFT) |
|
Input Video Format |
HDMI |
|
Native Resolution |
1920 x 1080 |
|
Display Type |
16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD |
|
Typical Contrast Ratio |
1000:1 |
|
Colors |
16.7 Million |
|
Viewing Angle(L/R/U/D) |
IPS Full Vew |
|
Active Display Area |
258mm(W) × 145mm(H) |
|
Pixel Pitch |
0.134(W) X 0.134(H) mm |
|
Brightness |
350 cd/ sq.m ;400cd sq.m / Optional |
|
Backlight |
LED Backlight, 50000 hours |
|
Outline Parameter |
|
|
Color |
Black |
|

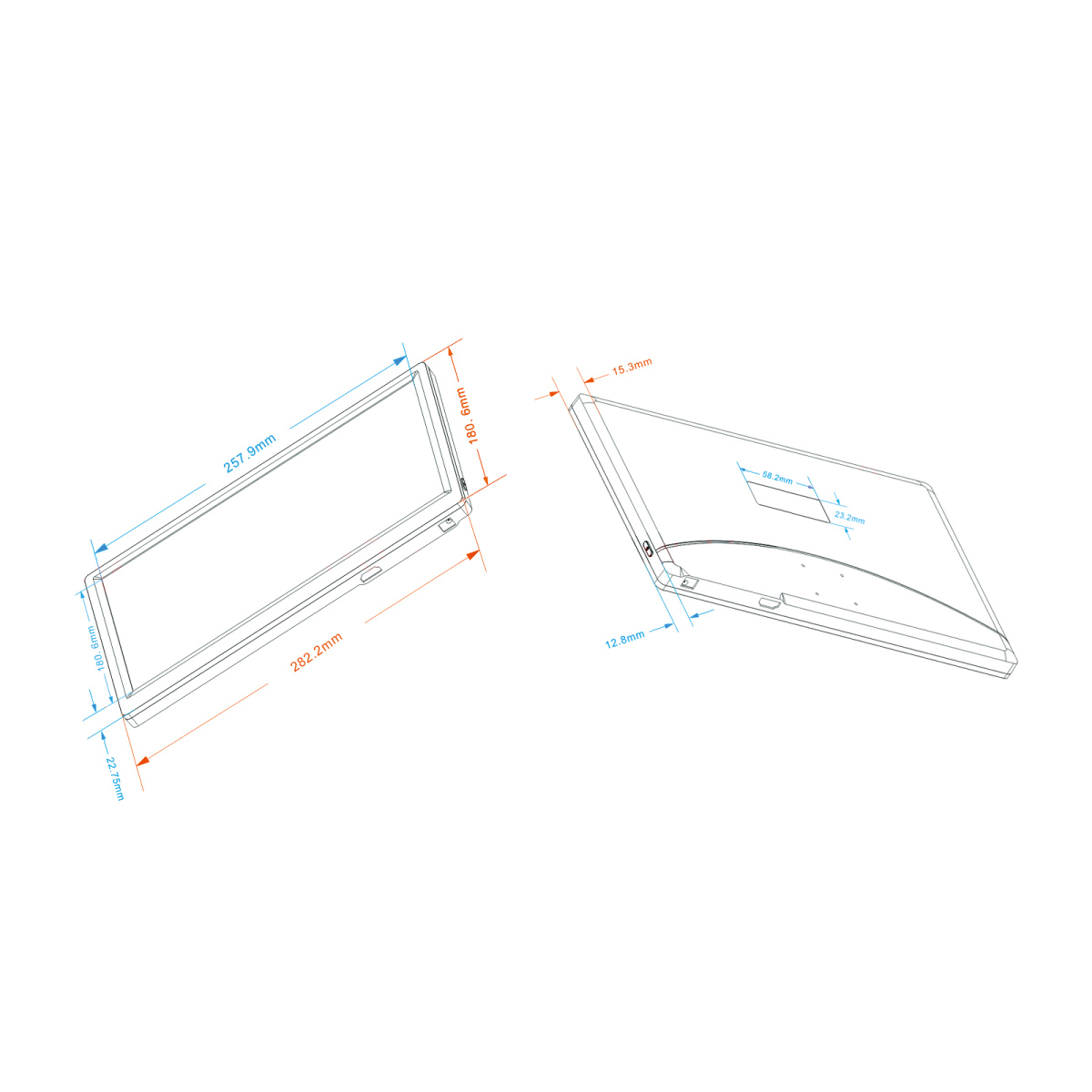

Dimension |
281(L)*179(H)*15.6(W) mm |
|
Weight |
400g |
|
Operating Environment |
|
|
Operating Temperature |
-15 Degree~55 Degree |
|
Humidity Non Condensing |
Operating:10%-90%, Storage: 5%-90% |
|
Synchronization Range |
30-80 KHz Horizontal, 55-75 Hz Vertical |
|
Power Supply |
AC110V-220V /DC12V(1A ) |
|
Power Consumption |
Max 12W |
|
