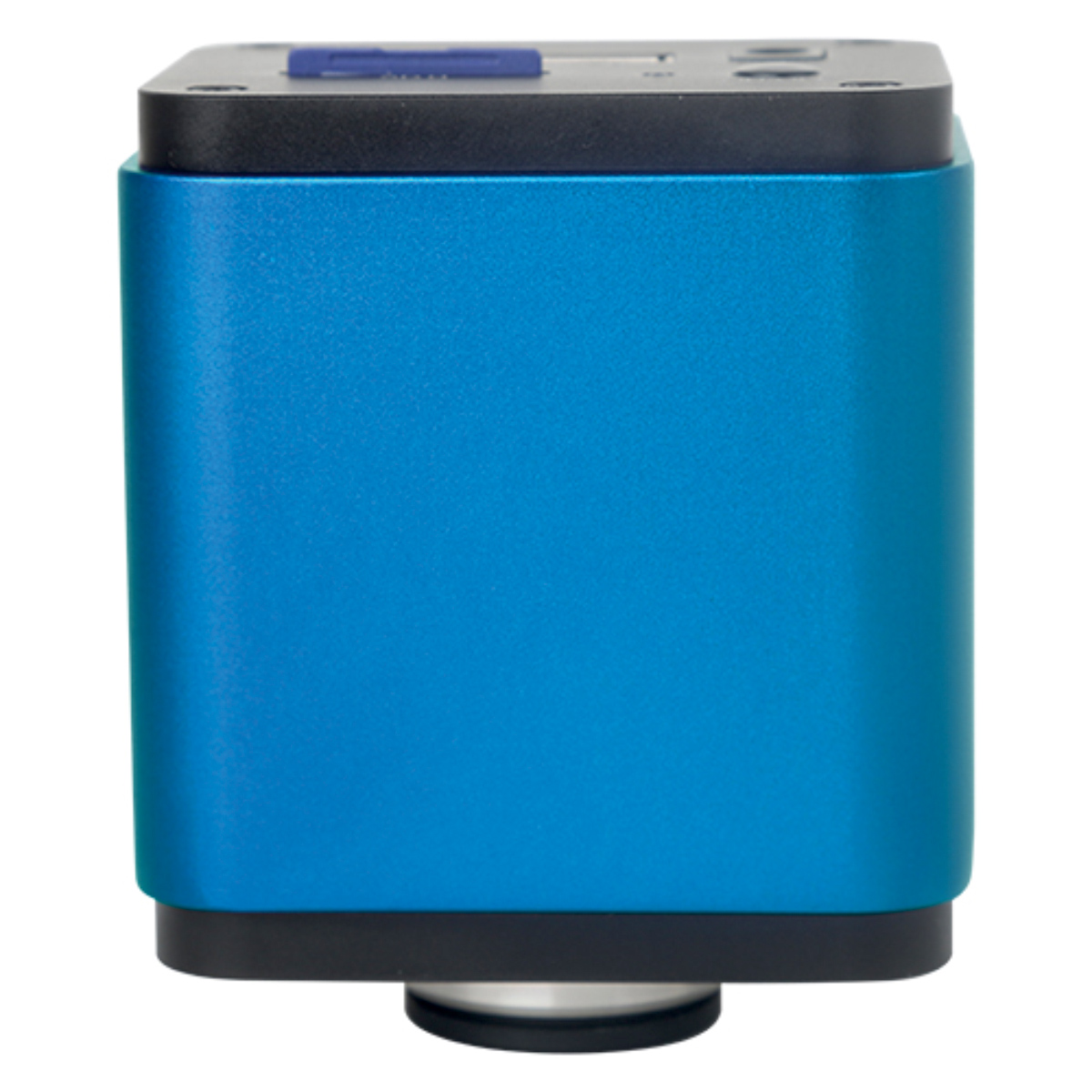

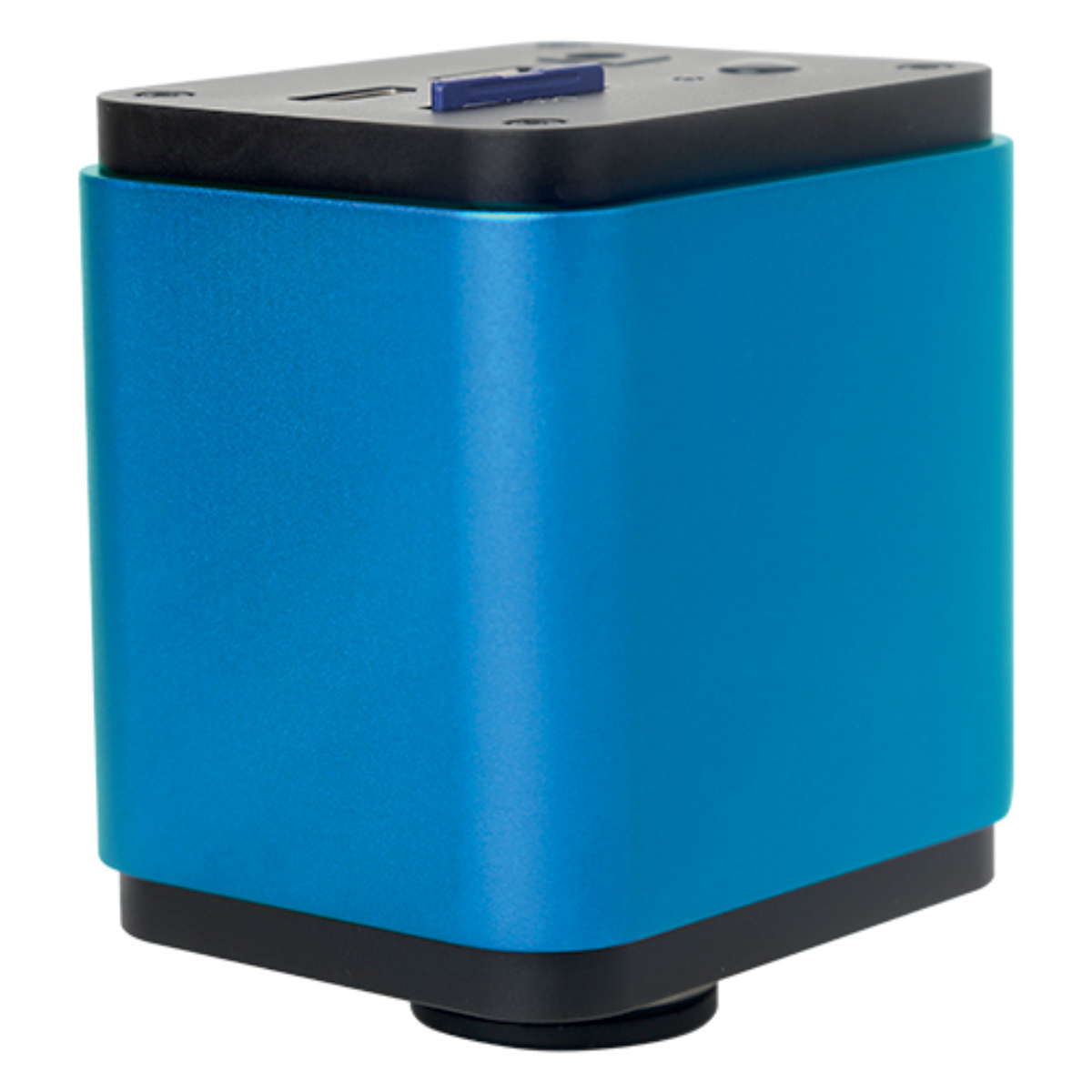

SHC4-1080P
HDMI Color Digital Camera

SHC4-1080P is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony IMX236 CMOS sensor as the image capture device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.

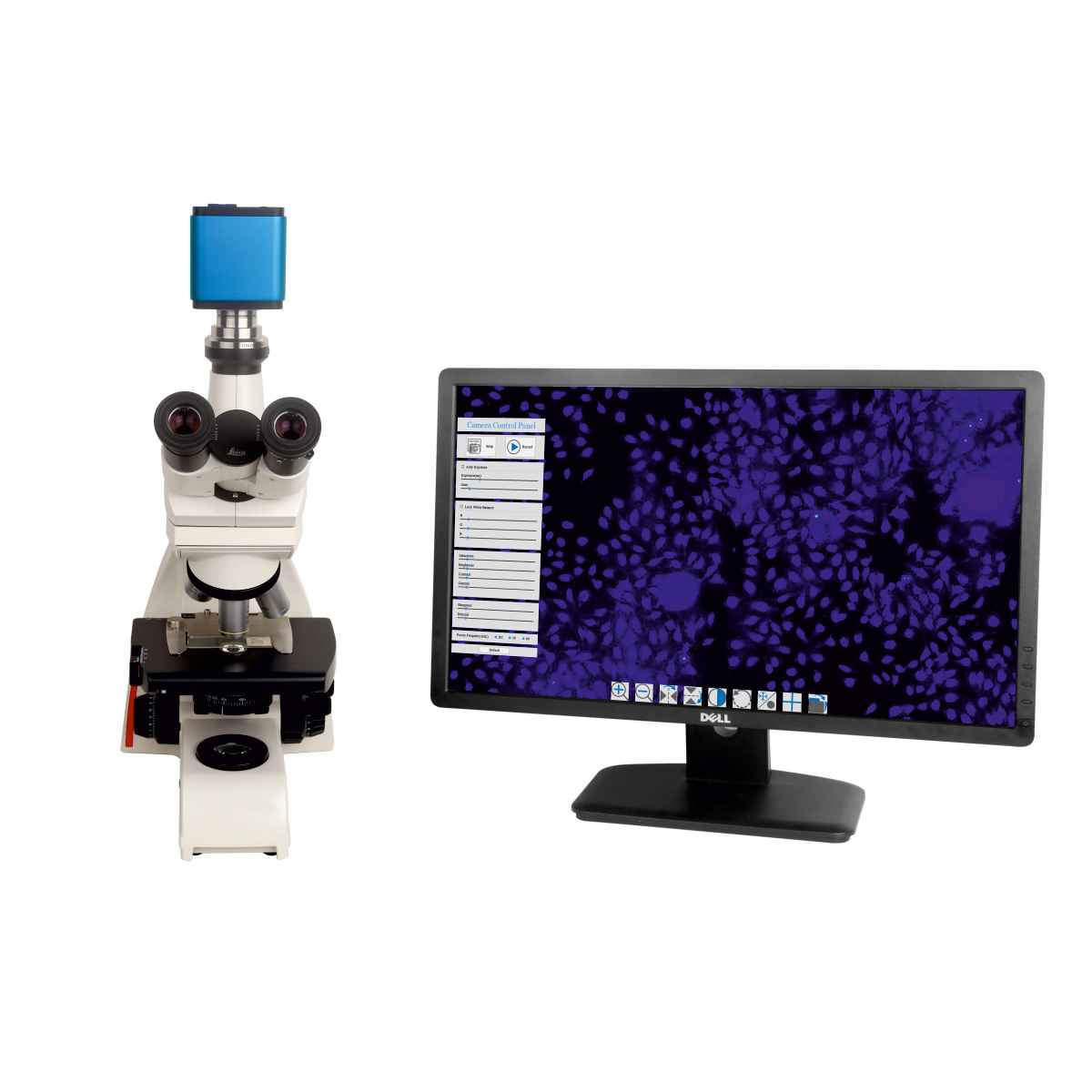

For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView. With ImageView, you can control the camera, process the image as other USB series camera.
Quantity :
  • Features
  • Specifications
  • Application
  • Literature

Features

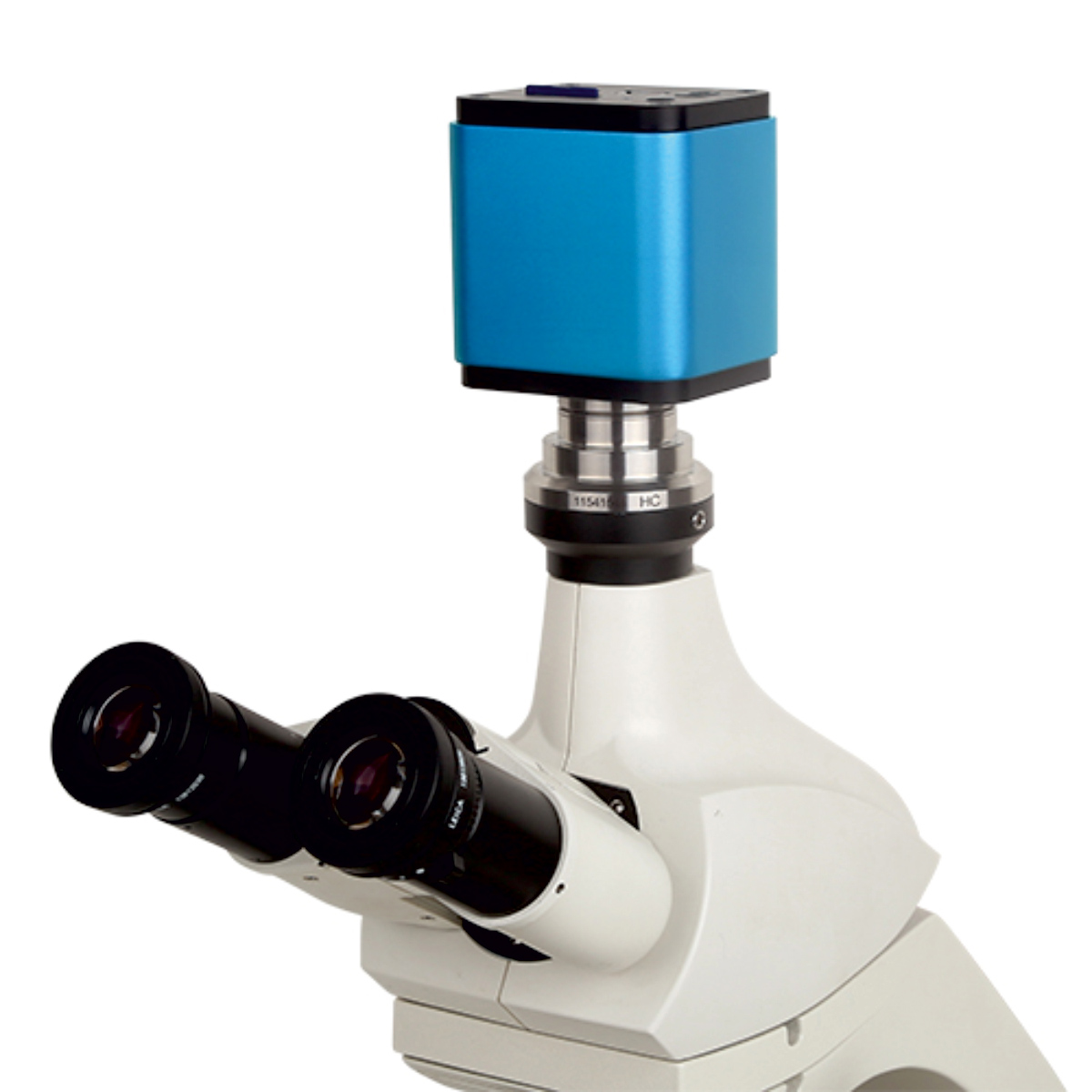

  • All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
  • Simultaneous HDMI & USB output;
  • CNC precision machining shell;
  • Built-in mouse control;
  • Built-in image capture & video record to SD card;
  • Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control;
  • Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
  • Built-in image & video browsing, display & play;
  • Ultra-Fine color engine with perfect color reproduction capability(USB);
  • With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
  • Support standard UVC for Windows/Linux/Mac(USB).

Specifications

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

SHC4-1080P

1080P/Sony IMX236
1/2.8”(5.38x3.02)

2.8x2.8

510 mv with 1/30s

0.15 mv with 1/30s

30@1920X1080(HDMI)
30@1920X1080(USB)

1x1

0.1ms~999ms

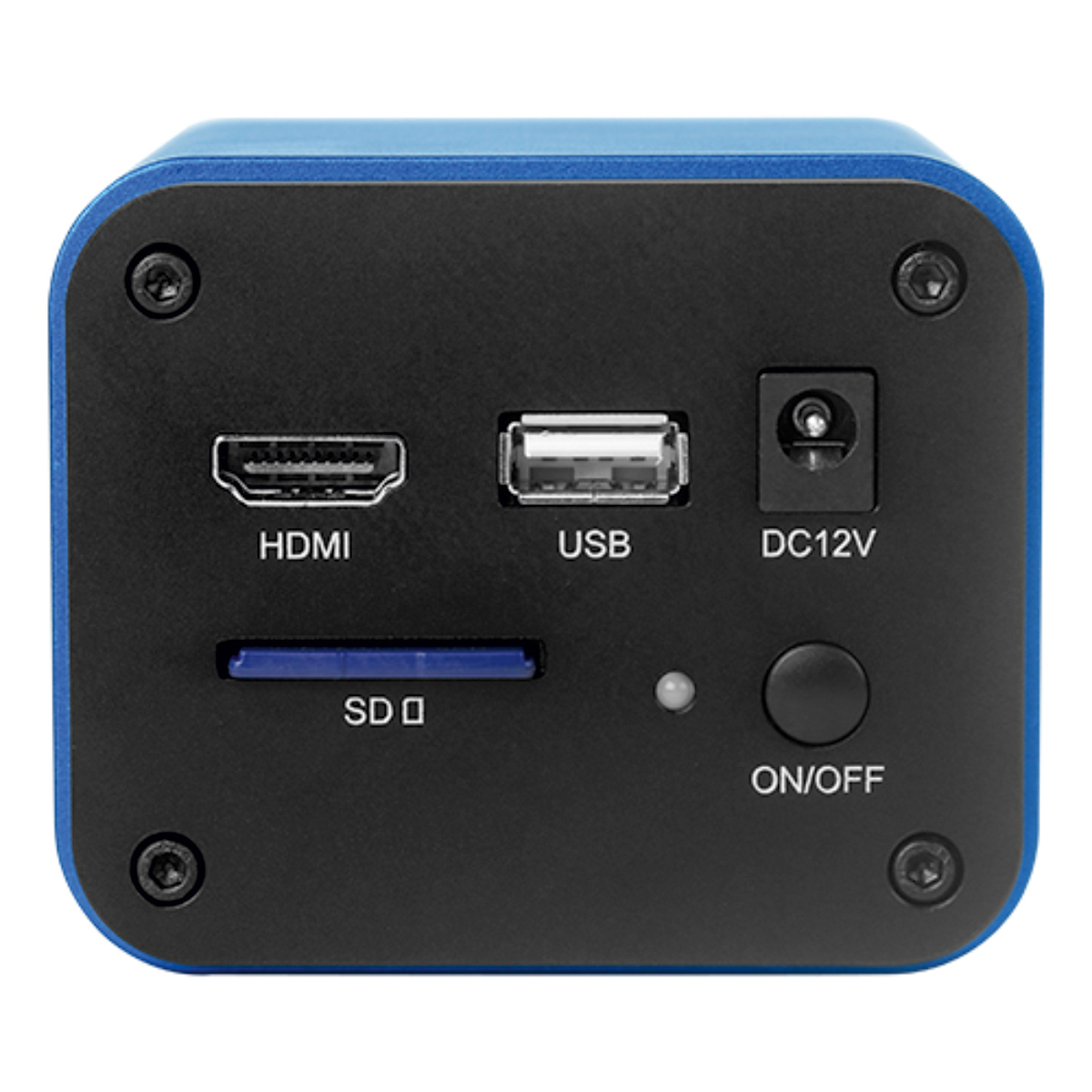

Interface & Button Functions



USB

USB Camera or USB Mouse

HDMI

HDMI Output

DC12V

12V Power in

SD

SD Card Slot

ON/OFF

Power On/off Switch

Other Specification for HDMI Output

UI Operation

With USB Mouse

Image Capture

High Speed in SD Card(8G)

Video Record

1080P 30fps in SD Card(8G)

Camera Control Panel

Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control

Toolbar

Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function

Other Specification for USB Output

White Balance

Auto White Balance

Color Technique

Ultra-FineTM Color Engine (USB)

Capture/Control API

Standard UVC for Windows/Linux/Mac(USB)

Recording System

Still Picture or Movie (USB)

Software Environment (for USB2.0 Connection)

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:4GB or More

USB Port:USB2.0 High-speed Port

Display:19” or Larger

CD-ROM

Operating Environment

Operating Temperature(in Centigrade)

-10~ 50

Storage Temperature(in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter





Application

  • Scientific research, education (teaching, demonstration and academic exchanges);
  • Digital laboratory, medical research;
  • Industrial visual (PCB examination, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aerospace, military (high sophisticated weapons).

Literature

SHC4-1080P Brochure
