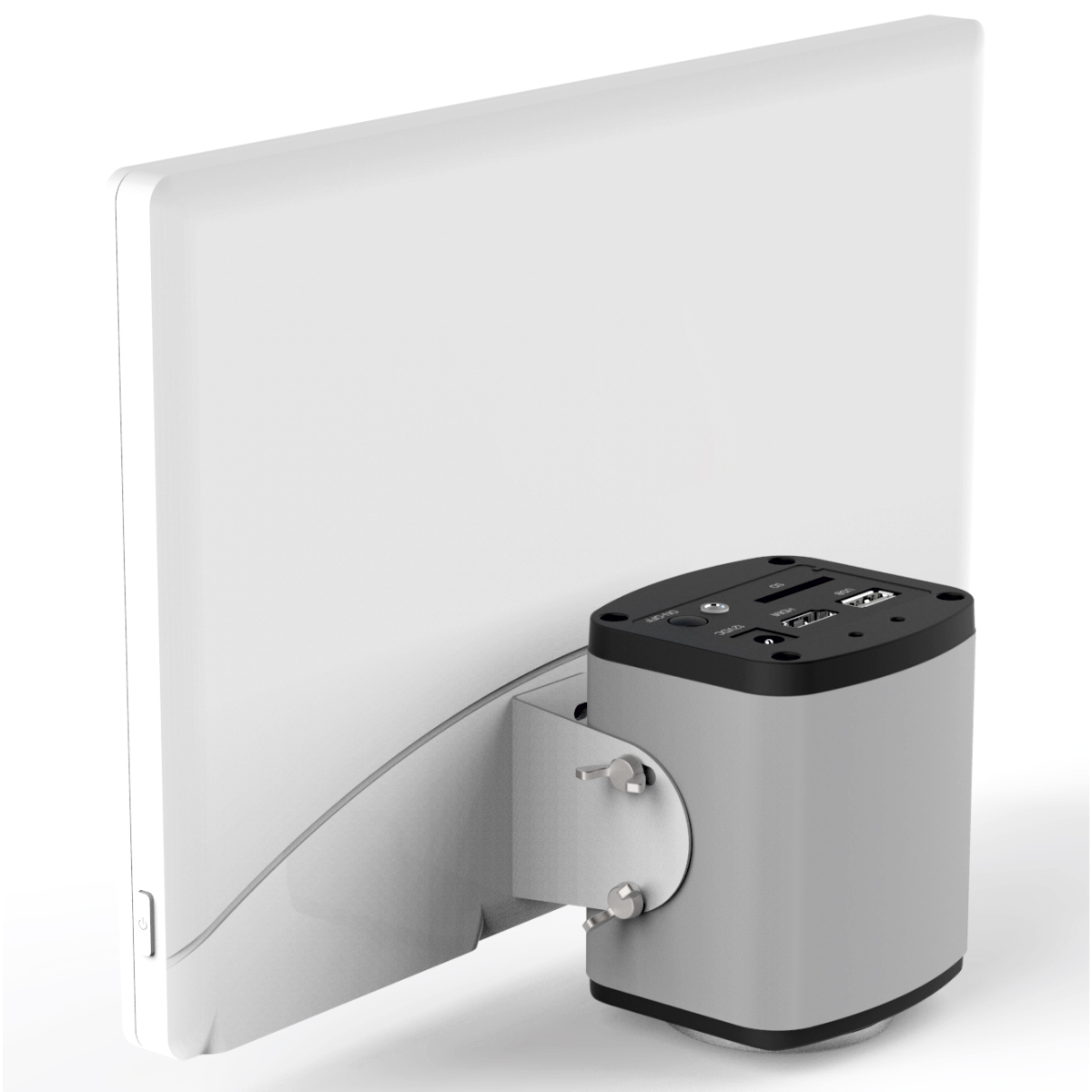

SLC-450
HD LCD Color Digital Camera

SLC-450 HD LCD Digital Camera is a brand new high performance and highly cost-effective, super reliable HD LCD camera which combines an full HD camera and a retina HD LCD screen. With the built-in software, the SLC-450 can be controlled by a mouse to take pictures, take videos and save to SD card.

Quantity :
  • Features
  • Specifications
  • Application
  • Literature

Features

  • Control camera with mouse from USB port, no shaking.
  • 11.6” retina HD LCD Screen, high definition and high quality color reproduction.
  • 5.0MP still image capture and 1080P Video Recording.
  • Save image and video to SD card.
  • Also can be connected to PC and take picture, take video, do measurement and analyze images.
  • Standard C-mount Interface for different microscopes.

Specifications

HDMI Camera

Image Sensor

CMOS, Aptina MT9P031

Sensor Size

1/2.5"

Video Resolution

1920 × 1080

Image Resolution

2592 × 1944

Frame Rate

1920 × 1080 15fps via  USB2.0

1920 × 1080 15fps via  HDMI

Data Record

SD Card (4G)

Video Record

1080p 15fps @ SD Card

1080p 15fps @ PC

Scan Mode

Progressive

Electronic Shutter

Electronic Rolling Shutter

A/D conversion

8 bit

Color Depth

24bit

Sensitivity

510mV

Dynamic Range

60dB

S/N ratio

40.5dB

Exposure time

0.001 sec ~ 10.0 sec

Exposure

Auto/Manual

White balance

Auto

Settings

Gain,Gamma,Saturation,Contrast

Built- in software

Cloud 1.0 version

PC software

Capture2.0

Output model 1

USB2.0

Output model 2

HDMI

System Compatible

Windows XP/Vista/Win 7/Win 8/10(32 and 64-bit ), MAC OSX

Optical port

C- Mount

Power Supply

DC 12V /2A

Operational Temperature

0-60°C

Humidity

45%-85%

Storage Temperature

-20-70°C

Retina Screen

Screen Size

11.6 inch

Aspect Ratio

16:9

Display Resolution

1920 × 1080

Display Type

IPS-Pro

Brightness

320cd/m2

Static Contrast Ratio

1000:1

Input

1*HDMI Port

Power Supply

DC 12V /2A External Adapter

Dimension

282mm×180.5mm×15.3mm

Net Weight

600g



Application

SLC-450 HDMI LCD digital camera is specifically developed for different microscopy applications. It can be widely used in medical diagnosis, industrial production and inspection, laboratory research and related microscopy field for image, video capture and analysis. It is mainly used for following areas:

  • Biological Teaching Digital Imaging
  • Live Cell Imaging
  • Surgical Microscopic Imaging
  • Pathology
  • Cytology
  • Defect Analysis
  • Semiconductor Inspection
  • Navigation for Processed Imaging
  • Industrial Optical HD Digital Imaging
  • Astronomical Observation



Literature

SLC-450 Brochure
