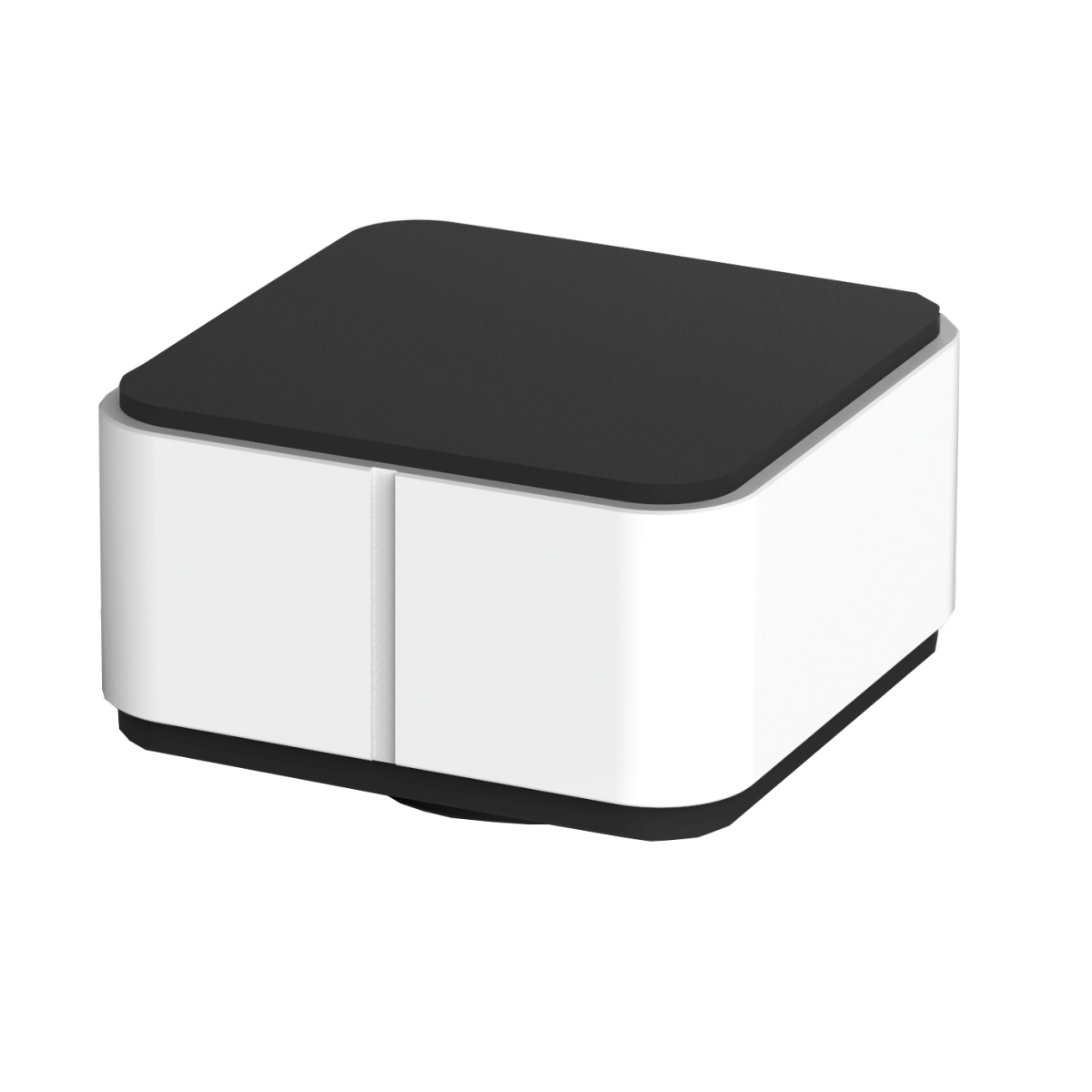

STC2D Series
Graphics Accelerated Microscope Camera
With Innovative customized ISP technology, the STC2D series cameras’ frame rate has been greatly improved. The frame rate of uncompressed original imaging is 2MP@30fps, 5MP@22fps, 12MP@15fps. This series digital cameras provide simple and economical microscopy imaging. They are widely used in academic and medical fields for precision and high resolution microscope image capturing and processing.
Quantity :
  • Specifications
  • Literature

Specifications

Model

STC2D-200C

STC2D-500C

STC2D-1200C

Sensor Model

Sony, IMX323LQN-C

Sony, IMX335LQN-C

Panasonic, MN34120

Sensor Size

1/2.9"

1/2.8"

1/2.33"

Resolution

2MP, 1920x1080

5MP, 2560x1920

12MP, 4000x3000

Pixel Size

2.8μmx2.8μm

2.0 μmx2.0μm

1.335μmx1.335μm

Frame Rate

30fps

22fps

15fps

Color/Mono

Color

Shutter Type

Rolling Shutter

Exposure Mode

Auto/Manual

Picture Format

TIFF/JPG/PNG/DICOM

Operating System

Windows 7/8/10 (32 Bit/64 Bit)

PC Software

Capture 2.0

SDK

C/C++, C#, Directshow

Optical Interface

C-Mount

Data Interface

USB2.0

Operating Temperature

0-60℃

Operating Humidity

10%-85%

Camera Size

68X68X42.5(mm)

Camera Weight

253g

Note:

Capture 2.0 software does not support the dark field image processing module, real-time image  stitching and real-time depth of field fusion function module when it is used with STC2D cameras.
