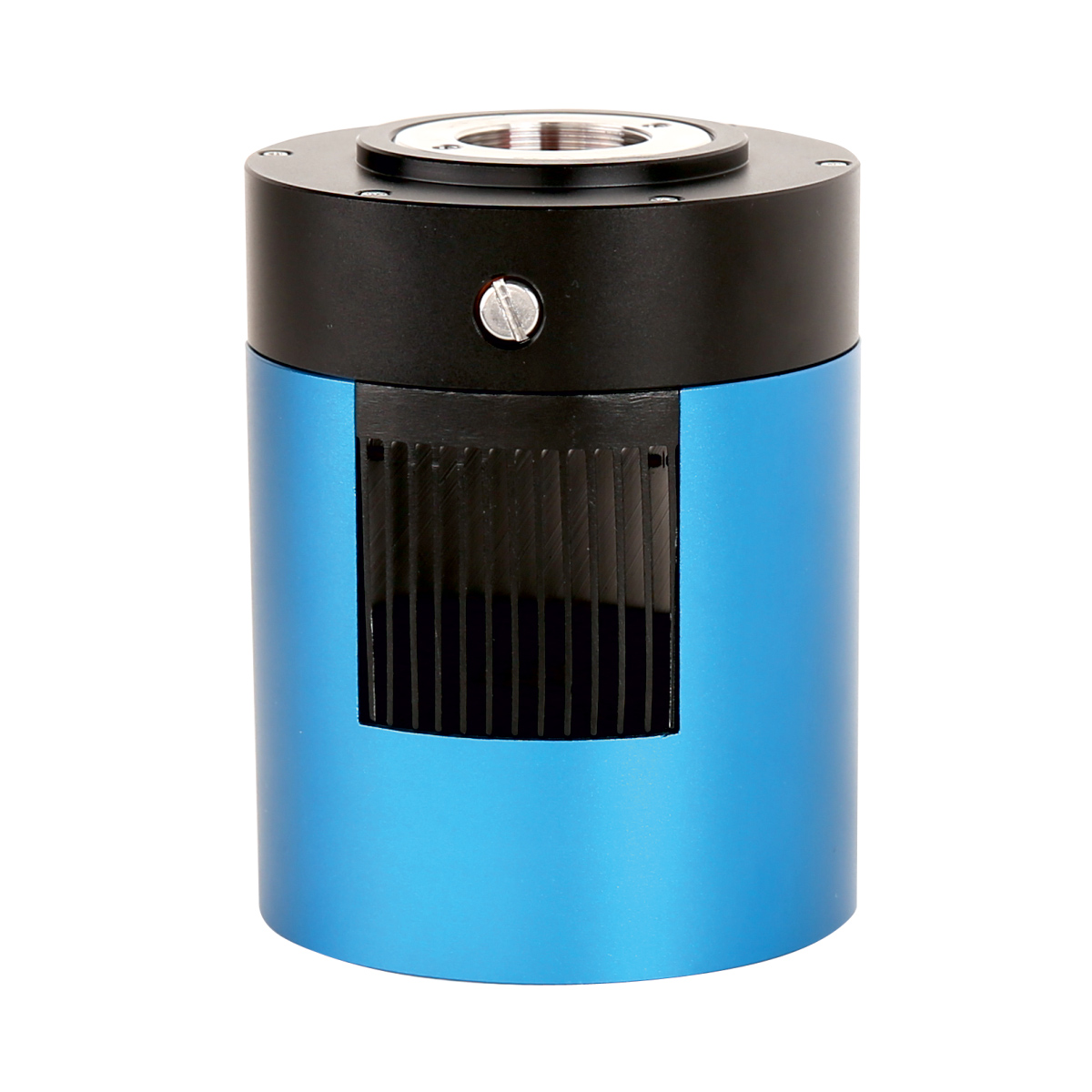

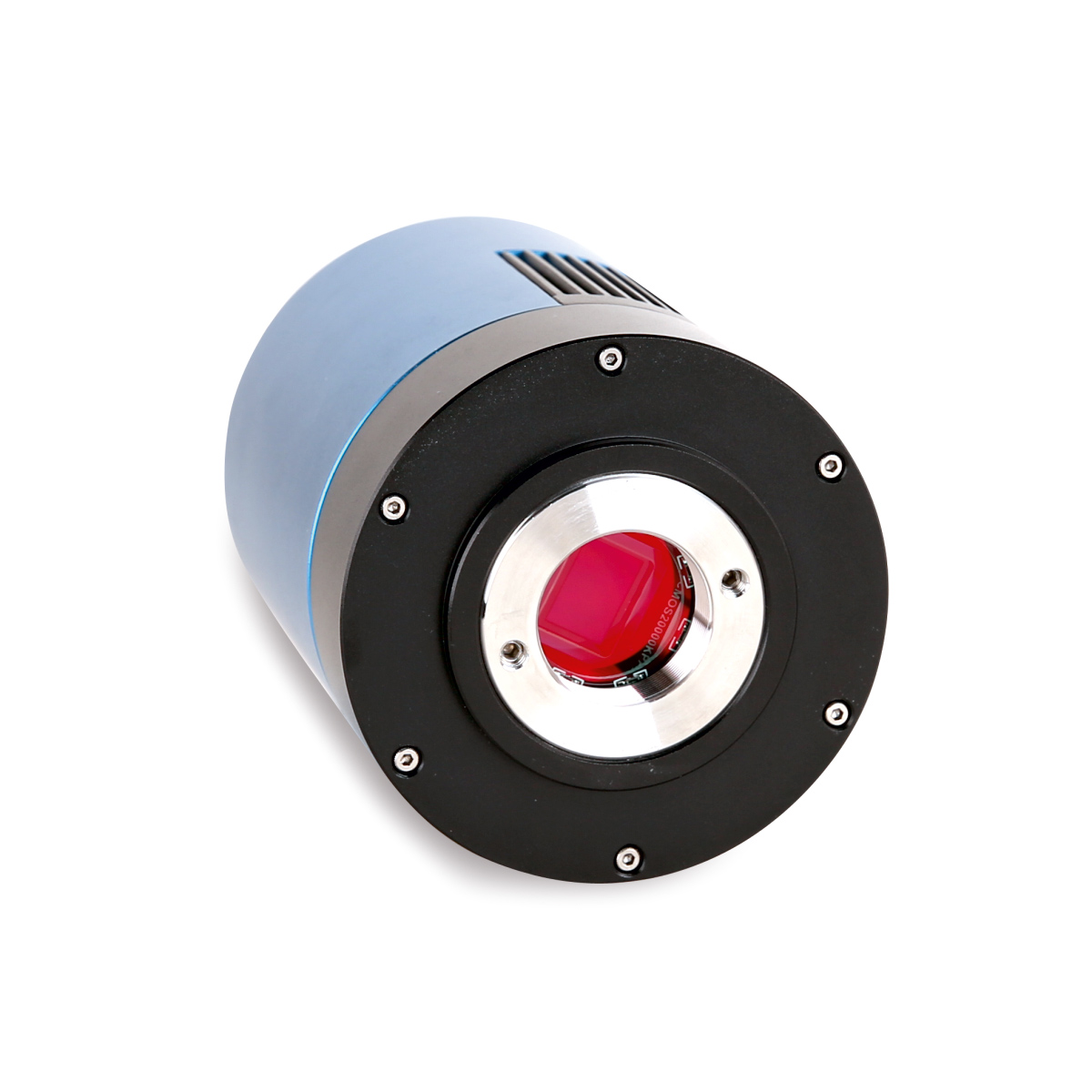

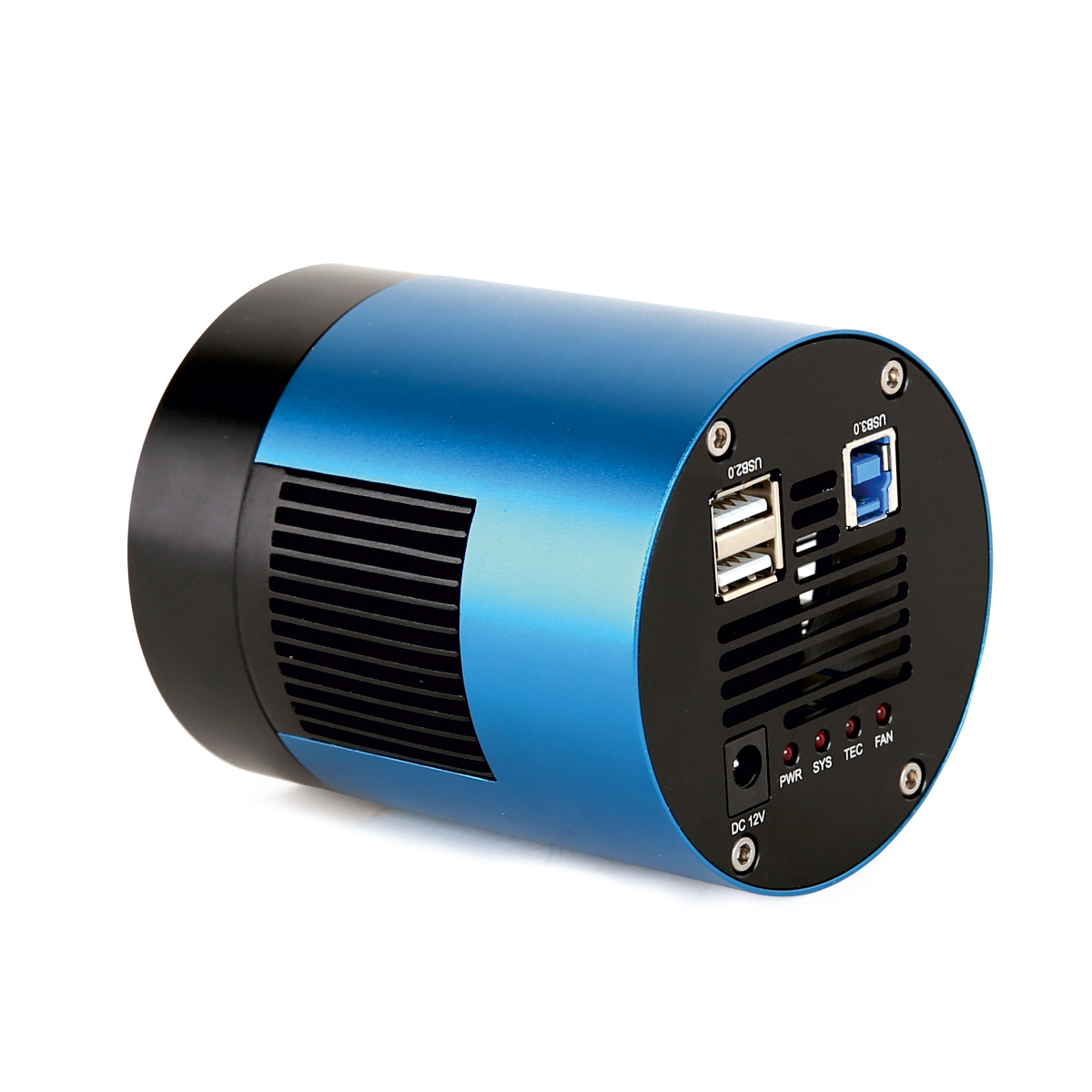

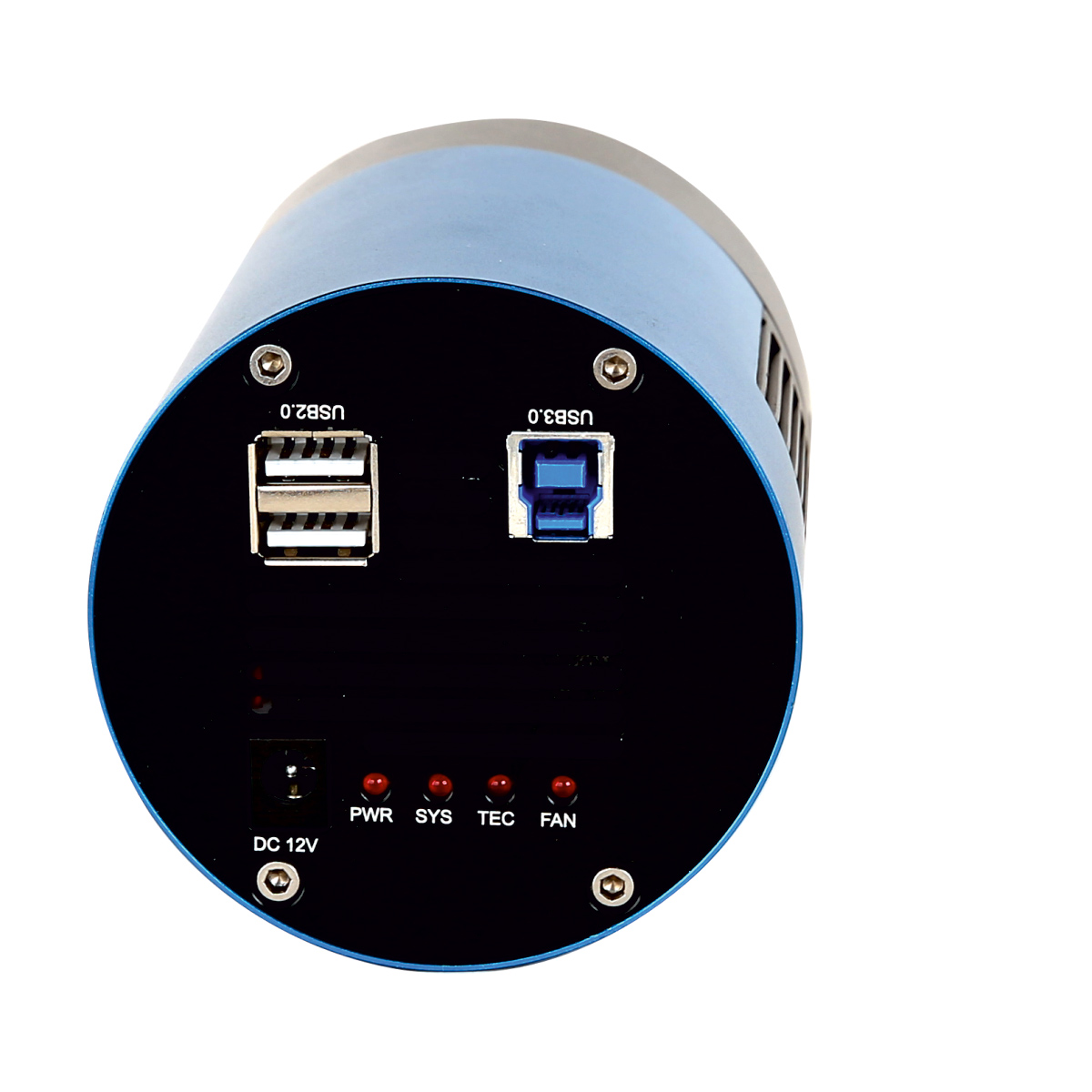

STC5IB Series
Cooled C-mount USB3.0 CMOS Camera

STC5IB series cameras have adopted SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.

With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.

STC5IB series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

The STC5IB series cameras can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky applications
Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature

Features

  • Standard C-Mount camera with SONY Exmor CMOS sensors from 1.7M to 20M;
  • Two-stage TE-cooling with controllable electric fan;
  • Sensor chip cooling up to 42°C below ambient temperature;
  • Working temperature can be regulated to specified temperature in 5 minutes;
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
  • IR-CUT/AR coated windows;
  • Up to 1 hour long time exposure;
  • USB3.0 5Gbit/second interface ensuring high speed data transmission;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application ImageView;
  • Support both video and trigger modes;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.NET, DirectShow, Twain control API.

Specifications

Model

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

STC5IB-2100C

21M/IMX269(C)
4/3 “(17.4x13.1)

3.3 x3.3

400mv with 1/30s
0.1mv with 1/30s

5@5280x3956

6@3952x3952

15@2640x1978

50@1760x1318

100@584x440

1x1

1x1

2x2

3x3

9x9

0.1ms~3600s

STC5IB-2000C

20M/IMX183(C)
1 “(13.056x8.755)

2.4 x2.4

462mv with 1/30s
0.21mv with 1/30s

5@5440x3648

10@4096x2160

15@2736x1824

30@1824x1216

1x1,
1x1,
2x2,
3x3

0.1ms~3600s

STC5IB-2000M

20M/IMX183(M)
1 “(13.056x8.755)

2.4 x2.4

388mv with 1/30s
0.21mv with 1/30s

(F8.0)

17.8@5440x3648

41@4096x2160

51@2736x1824

64@1824x1216

1x1,
1x1,
2x2,
3x3

0.1ms~3600s

STC5IB-1600C

16M/MN34230PLJ(C)
4/3“ (17.6x13.3)

3.8x3.8

2413LSB
89.1LSB
(Gain = 0dB)

6@4640x3506
20@2304x1750
48@1536x1160

1x1
2x2
3x3

0.15ms~3600s

STC5IB-1600M

16M/MN34230ALJ(M)
4/3“ (17.6x13.3)

3.8x3.8

2650LSB
89.1LSB
(Gain = 0dB)

22.5@4648x3506
43.0@2304x1750
48.0@1536x1168

1x1
2x2
3x3

0.15ms~3600s

STC5IB-1030C

10.3M/IMX294(C)
4/3 “(17.47x12.86)

4.63 x4.63

419mv with 1/30s
0.12mv with 1/30s

7.5@3704x2778
8.5@4096x2160
30@2048x1080
60@1360x720

1x1,
1x1,
2x2,
3x3

0.15ms~3600s

STC5IB-700C

7.0M/IMX428(C, G)
1.1 “(14.4x9.9)

4.5 x4.5

2058mv with 1/30s
0.15mv with 1/30s

12@3200x2200

33@1600x1100

1x1

1x1

0.1ms~3600s

STC5IB-700M

7.0M/IMX428(M, G)
1.1 “(14.4x9.9)

4.5 x4.5

3354mv with 1/30s
0.15mv with 1/30s

51@3200x2200
133@1600x1100

1x1

2x2

0.1ms~3600s

STC5IB-170C

1.7M/IMX432(C, G)
1.1 “(14.4x9.9)

9.0 x9.0

4910mv with 1/30s
0.3mv with 1/30s

33@1600x1100

1x1

0.1ms~3600s

STC5IB-170M

1.7M/IMX432(M, G)
1.1 “(14.4x9.9)

9.0 x9.0

8100mv with 1/30s
0.3mv with 1/30s

94@1600x1100

1x1

0.1ms~3600s



Other Specification for STC5IB Cameras

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Two-stage TE-cooling System -45 °C below Camera Body Temperature

Operating Environment

Operating Temperature (in Centidegree)

-10~ 50

Storage Temperature (in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

External Power Adapter for Cooling System, DC12V, 3A

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port: USB3.0 High-speed Port

Display: 17” or Larger

CD-ROM



Dimension

The STC5IB body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.
