Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
STC2E-830C |
8.3M/IMX274(C) 1/2.5”(6.22x3.50) |
1.62x1.62 |
236mv with 1/30s 0.1mv with 1/30s |
4@3840x2160 16@1920x1080 |
1x1 2x2 |
0.244ms~15s |
|
STC2E-660C |
6.6M/IMX326(C) 1/2.9”(4.98x3.50) |
1.62x1.62 |
236mv with 1/30s 0.1mv with 1/30s |
5@3072x2160 6@2592x1944 6@3072x1728 7@2160x2160 |
1x1 1x1 1x1 1x1 |
0.244ms~15s |
|
STC2E-530C |
5.3M/IMX178(C) 1/1.9“ (7.37x4.15) |
2.4x2.4 |
425mv with 1/30s 0.15mv with 1/30s |
5.5@3072 x1728 |
1x1, 2x2 |
0.105ms~15s |
|
STC2E-500C |
5.0M/IMX335(C) 1/2.8“ (5.18x3.89) |
2.0x2.0 |
505mv with 1/30s 0.13mv with 1/30s |
6.4@2592 x1944 |
1x1, 2x2 |
0.1ms~15s |
|
STC2E-310C |
3.1M/IMX123(C) 1/2.8“ (5.12x3.84) |
2.5x2.5 |
600mv with 1/30s 0.15mv with 1/30s |
10.5@2048x1536 |
1x1 |
0.105ms~15s |
|
STC2E-200C |
2.0M/IMX290(C) 1/2.8“(5.56x3.13) |
2.9 x2.9 |
1300mv with 1/30s 0.15mv with 1/30s |
17@1920x1080 |
1x1 |
0.105ms~15s |
|
STC2E-120C |
1.2M/IMX224(C) 1/3“(4.80x3.60) |
3.75 x3.75 |
2040mv with 1/30s 0.15mv with 1/30s |
27@1280x960 54@640x480 |
1x1, 2x2 |
0.105ms~15s |
|
Other Specification for STC2E Camera |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C# /VB.Net, DirectShow, Twain |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Operating Environment |
|
|
Operating Temperature (in Centigrade) |
-10~ 50 |
|
Storage Temperature (in Centigrade) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB Port: USB2.0 Port |
|
|
Display: 17” or Larger |
|
|
CD-ROM |
|
Dimension of STC2E

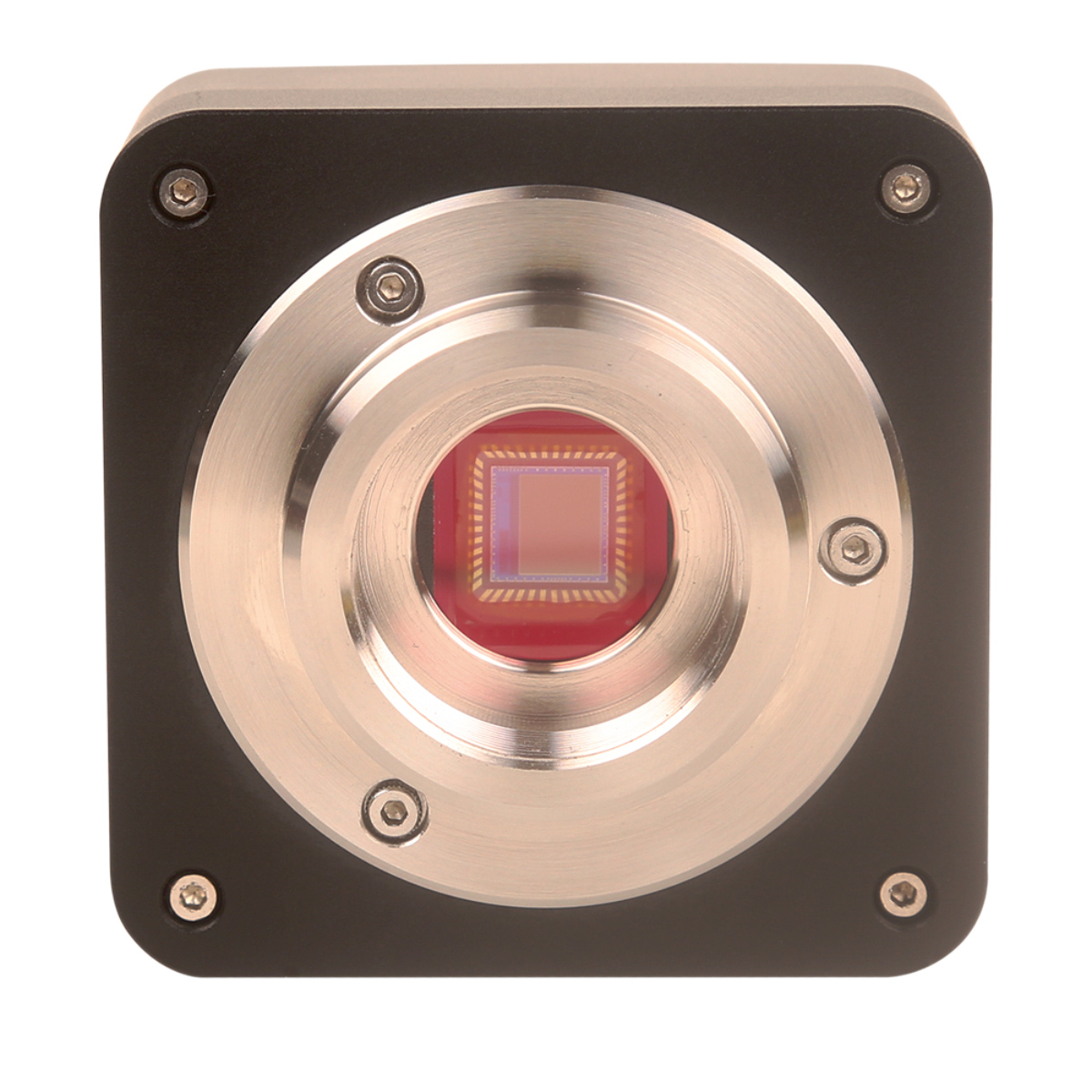

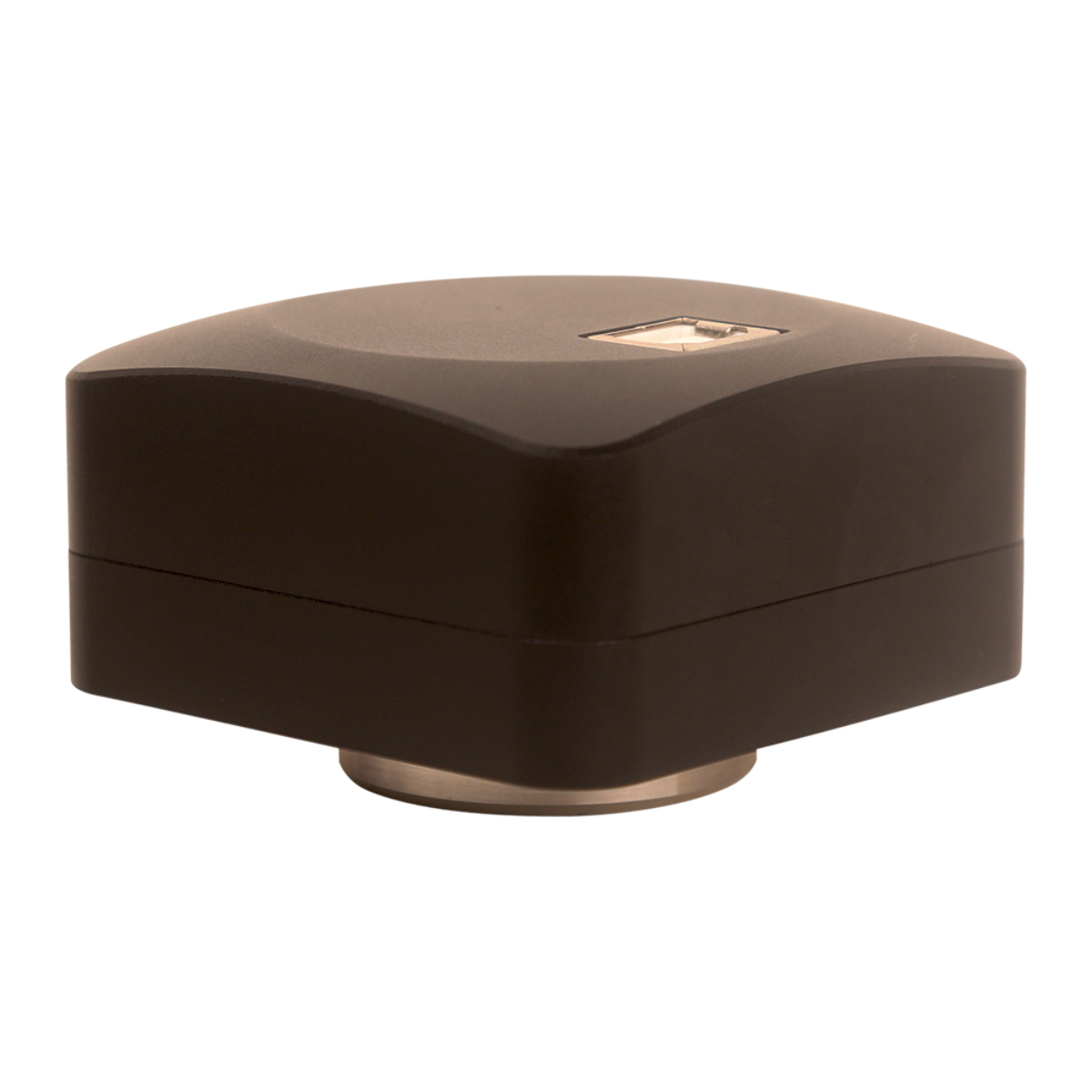

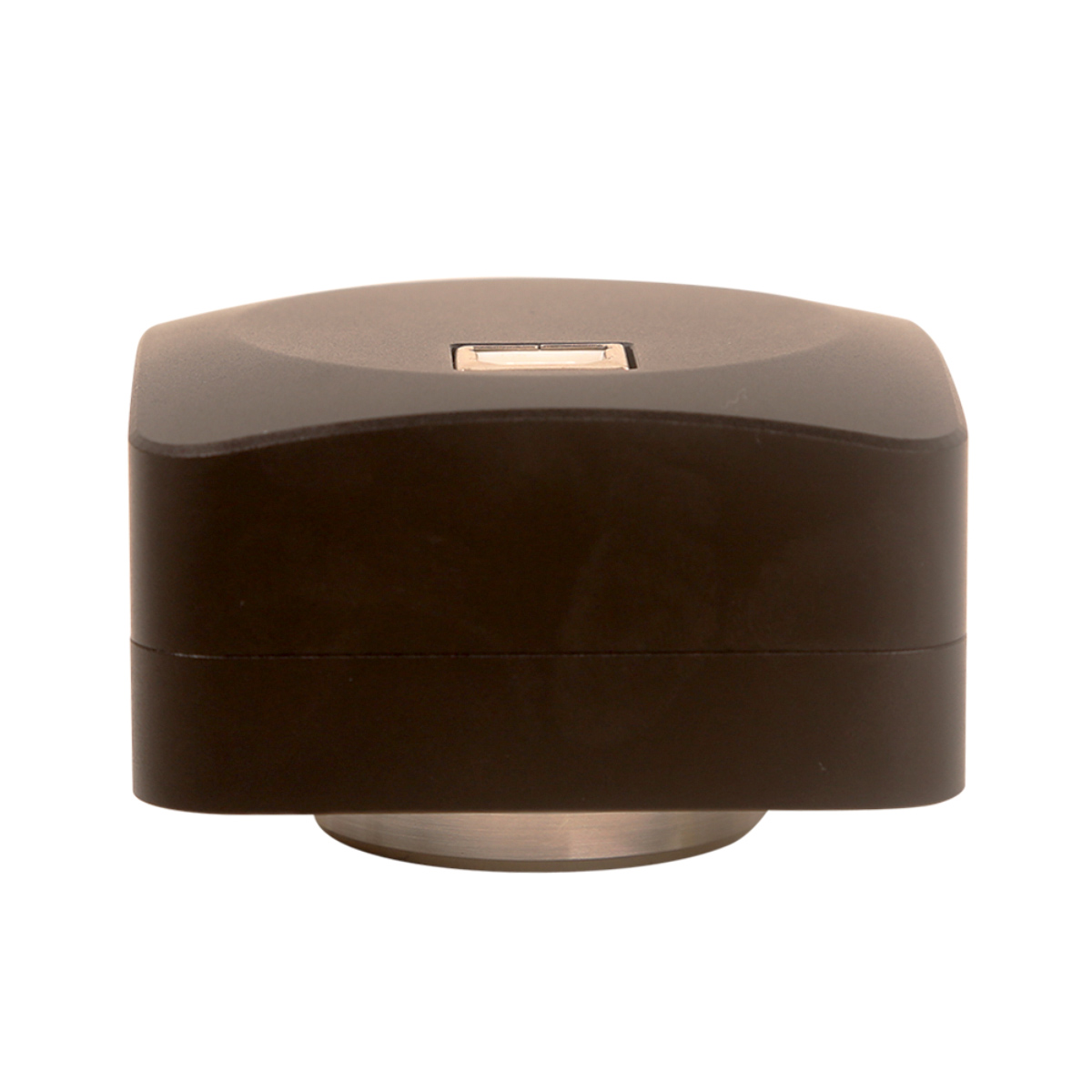

The STC2E body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
|
