Stalwart

SWC Series

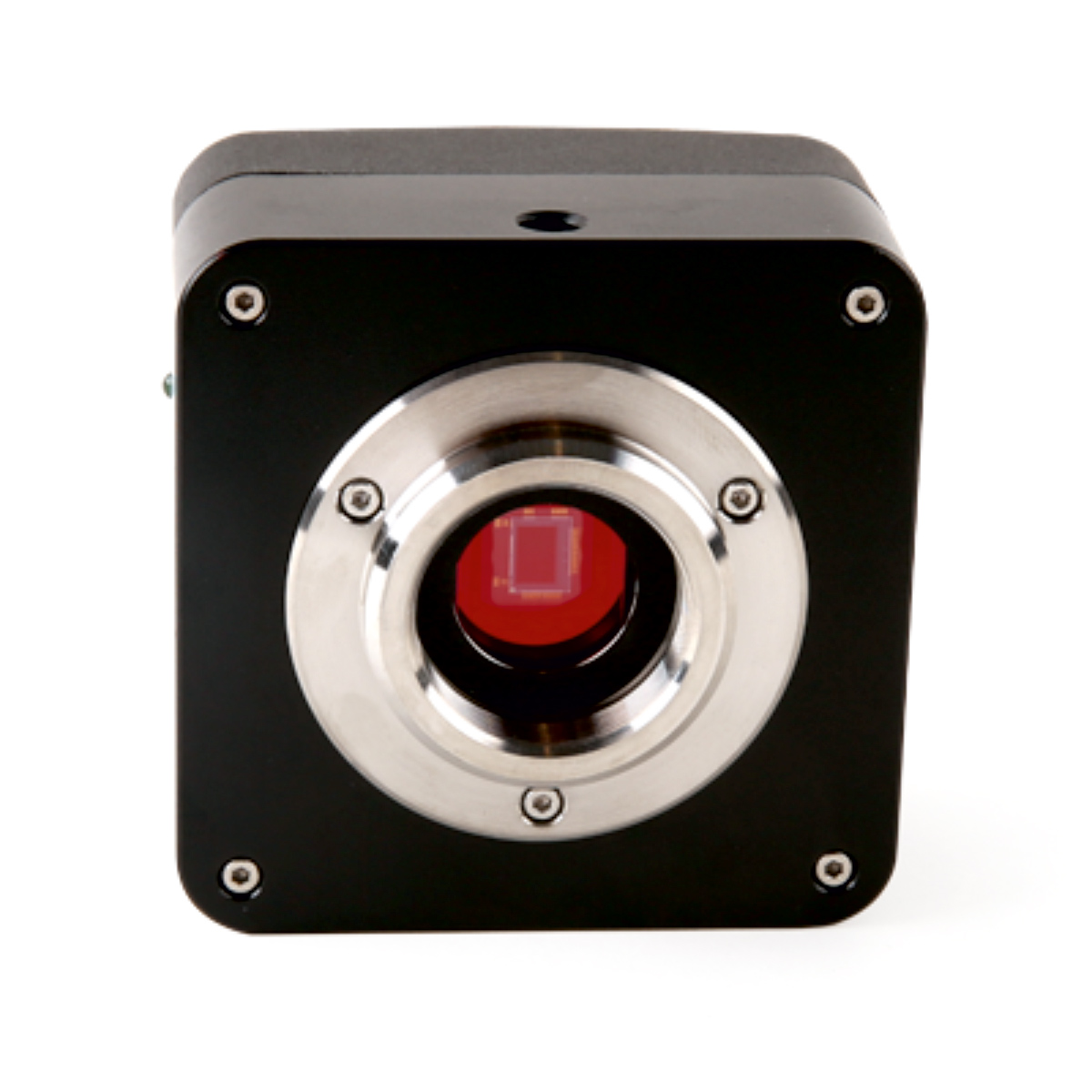

C-mount WiFi CMOS Color Digital Camera

SWC series cameras are WiFi cameras and they adopt ultra-high performance CMOS sensor as the image capture device. WiFi is used as the data transfer interface.

When a SWC camera is attached to the eyepiece or trinocular head of a microscope and started, it will generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously.

The camera includes ImageView image software for quantifying, measuring and annotating images and for using with an interactive white board. It also works with the free, downloadable ImageView app for viewing, capturing, and editing images.

Quantity :

Add to Inquiry Basket

Features
Specifications
Literature

Features

C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch.
Scientific research grade camera with Aptina CMOS sensor.
Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers and tablets with iOS, Android and Windows operating systems;
Streams images to several devices simultaneously;
Integrated zinc aluminum alloy housing;
Ultra-Fine^TM color engine with perfect color reproduction capability;With advanced video & image processing application ImageView (only support simple video viewing capturing for IOS/ android system);
Custom programmable with SDK provided(Windows/Linux/OS).

Specifications

Order Code

Sensor Size(mm)

Pixel(μm)

G Responsivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure(ms)

SWC-1080

1080P/IMX222 (C)
1/2.8“ (5.38x3.02)

2.8x2.8

510mV with 1/30s
0.15mv with 1/30s

25@1920x1080

1x1

0.059ms~1941ms

SWC-720

720P/MT9P001 (C)
1/2.5“ (5.63x3.17))

2.2x2.2

1.0 V/lux-sec

61dB

43dB

10@1280x720

2x2

Auto Exposure

Other Specification for SWC Camera
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	Whole Area White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-Fine^TM Color Engine/NA for Monochromatic Sensor
Capture/Control API	Native C/C++, C#/VB.NET, DirectShow, Twain and Labview
Recording System	Still Picture and Movie
Cooling System	Natural
Maximum Connected Devices	<=3
Operating Environment
Operating Temperature(in Centigrade)	-10~ 50
Storage Temperature(in Centigrade)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	USB Charger, Not Recommend PC USB Port
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) IOS IPAD or IPhone, Android PAD and Phone
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:2GB or More
	WiFi Adapter with DHCP Enabled
	Display:17” or Larger
	CD-ROM
PAD	IPAD or PAD with Android System
Mobile Phone	IPhone or Smart Phone with Android System

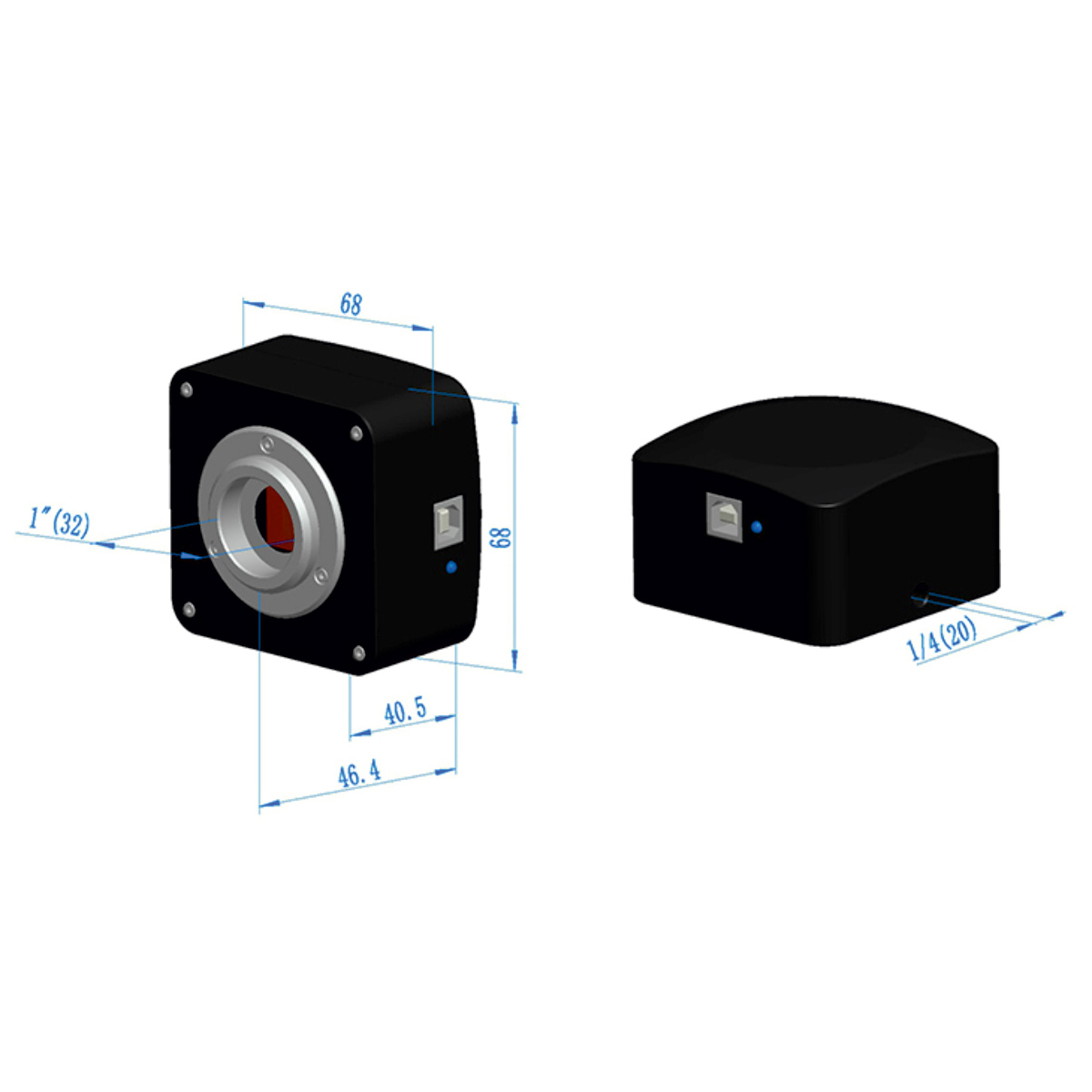

Dimension

The SWC body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Literature

SWC Series Brochure
