STC5F Series
C-mount CMOS Color Digital Camera

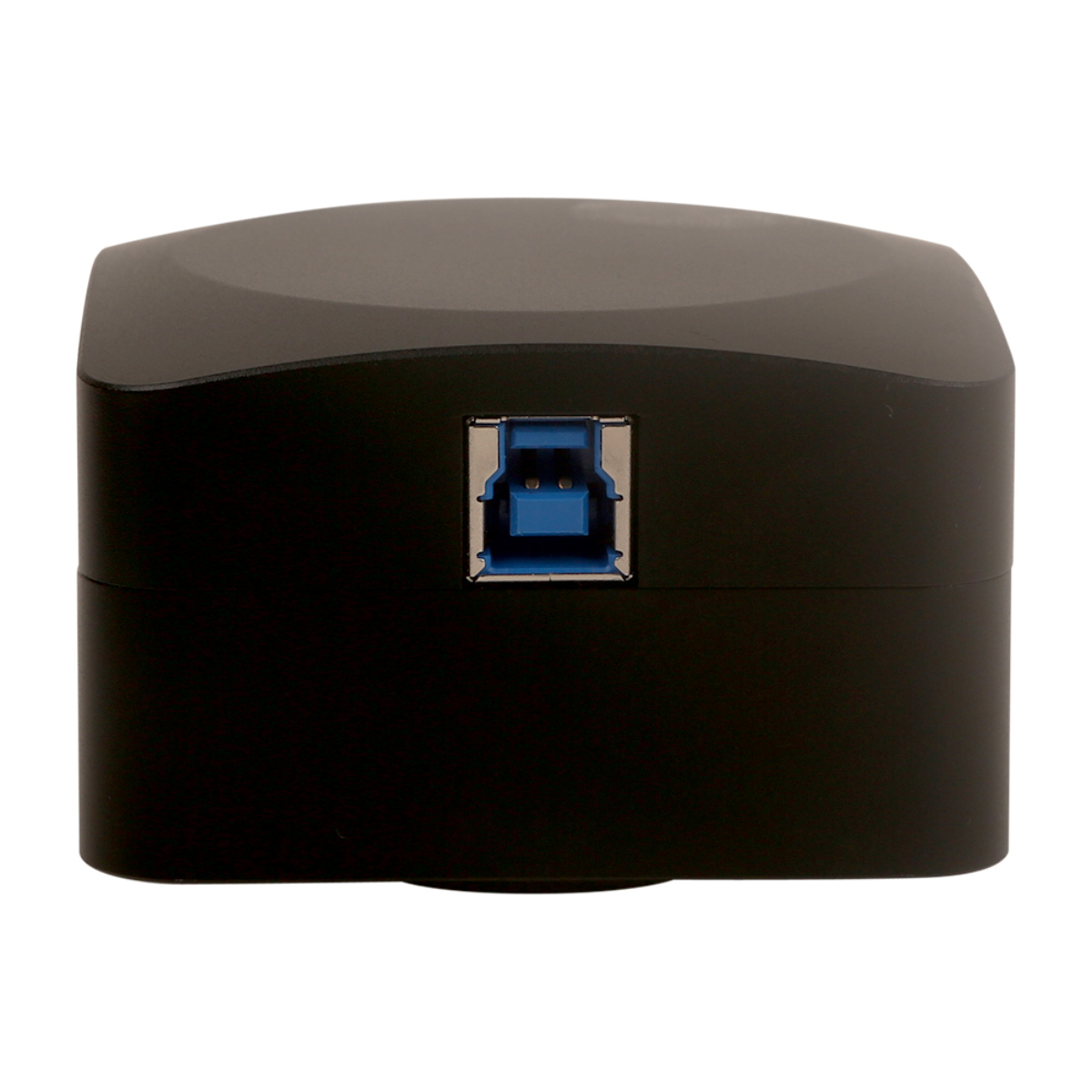

STC5F series USB3.0 digital cameras adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.

STC5F series cameras hardware resolutions range from 1.5MP to 21MP and come with the integrated CNC aluminum alloy compact housing.

STC5F series cameras integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit out. This will move the heavy burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.

STC5F series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The STC5F series cameras can be widely used in bright field, dark field, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.

Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature

Features

  • SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
  • Real-time 8/12bit depth switch(depending on sensor);
  • Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates (Up to 17 frames for 21MP Resolution);
  • Super high sensitivity up to 2350mV(IMX385);
  • Ultra low noise and low power dissipation by using column-parallel A/D conversion;
  • With hardware resolution among 1.5M to 21M;
  • Rolling Shutter or Global Shutter;

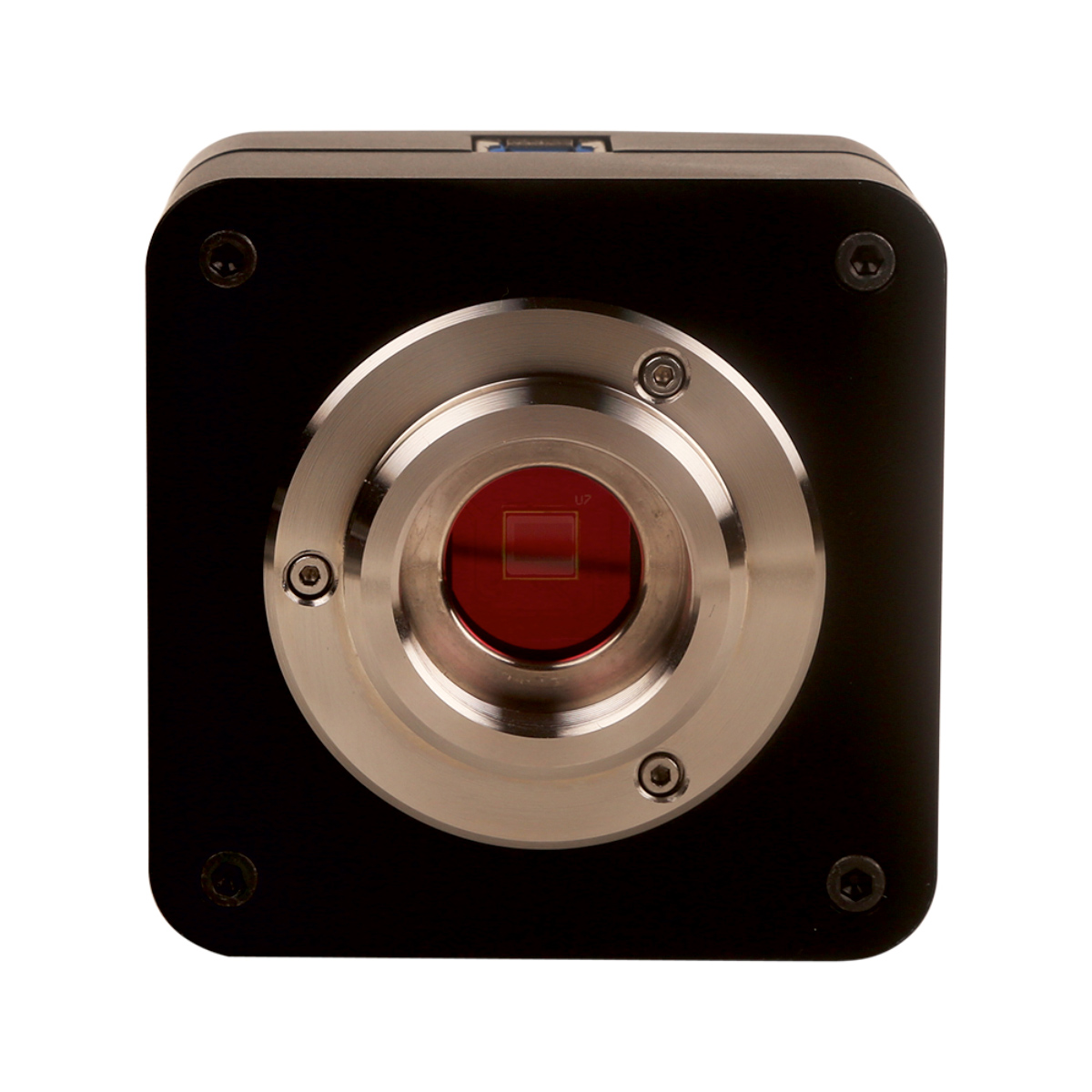

  • Standard C-Mount camera;
  • CNC aluminum alloy housing;
  • With advanced video & image processing application ImageView;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.Net, DirectShow, Twain, LabView.

Specifications

Order Code

Sensor & Size(mm)

Pixel Size(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

STC5F-2100C

21M/IMX269 (C)
4/3 “(17.4x13.0)

3.3 x3.3

399mv with 1/30s
0.1mv with 1/30s

17@5280x3954

17@3952x3952

56@2640x1976

67@1760x1316

192@584x438

1x1

1x1

2x2

3x3

9x9

0.1ms~15s

STC5F-2000C

20M/IMX183(C)
1”(13.06x8.76)

2.4 x2.4

462mv with 1/30s
0.21mv with 1/30s

15@5440x3648

50@2736x1824

60@1824x1216

1x1
2x2

3x3

0.1ms~15s

STC5F-1800C

18M/SONY Special(C)
1/2.2” (5.86x4.46)

1.2 x1.2

130mv with 1/30s
0.1mv with 1/30s

17@4880x3720

40@2448x1836

50@1728x1296

1x1

2x2

3x3

0.1ms~15s

STC5F-1560C

15.6M/SONY Special (C)
1.1 “(13.0x13.0)

3.3 x3.3

399mv with 1/30s
0.1mv with 1/30s

17@3952x3952

56@1976x1976

67@1316x1316

1x1

2x2

3x3

0.1ms~15s

STC5F-1230C

12.3M/IMX304(C, GS)

1.1”(14.13x10.35)

3.45x3.45

1146mv with 1/30s
0.1mv with 1/30s

23.4@4096x3000

46.3@2048x1500

1x1

1x1

0.244ms~15s

STC5F-1200C

12M/IMX226(C)
1/1.7“(7.40x5.55)

1.85x1.85

280mv with 1/30s
0.1mv with 1/30s

25@4000x3000
50@2048x1080

1x1

2x2

0.1ms~15s

STC5F-900C

9.0M/IMX305(C, GS)
1“ (14.13x7.45)

3.45x3.45

1146mv with 1/30s
0.15mv with 1/30s

34@4096x2160
60@2048x1080

1x1

1x1

0.1ms~15s

STC5F-830C

8.3M/IMX274(C)

1/2.5”(6.22x3.50)

1.62x1.62

236mv with 1/30s
0.1mv with 1/30s

32@3840x2160

65@1920x1080

1x1

2x2

0.244ms~15s

STC5F-830BC

8.3M/IMX334(C)

1/1.8”(7.68x4.32)

2.0x2.0

505mv with 1/30s
0.1mv with 1/30s

35@3840x2160

60@1920x1080

1x1

2x2

0.02ms~15s

STC5F-830CC

8.3M/IMX485(C) 1/1.2”(11.14x6.26)

2.9x2.9

2188mv with 1/30s 0.15mv with 1/30s

45@3840x2160 70@1920x1080

1x1 2x2

0.02ms~15s

STC5F-630C

6.3M/IMX178(C)
1/1.8“ (7.37x4.92)

2.4x2.4

425mv with 1/30s
0.15mv with 1/30s

30@3072 x2048
38@1536x 1024

1x1

2x2

0.1ms~15s

STC5F-630BC

6.3M/IMX178(C)
1/1.8“ (7.37x4.92)

2.4x2.4

425mv with 1/30s
0.15mv with 1/30s

59@3072 x2048
59@1536x 1024

1x1

2x2

0.02ms~15s

STC5F-500C

5.0M/IMX264(C, GS)
2/3” (8.45x7.07)

3.45x3.45

1146mv with 1/30s
0.15mv with 1/30s

35@2448x2048

50@1224x1024

1x1

1x1

0.1ms~15s

STC5F-310C

3.1M/IMX123(C)
1/2.8“ (5.12x3.84)

2.5x2.5

600mv with 1/30s
0.15mv with 1/30s

50@2048x1536

50@1920x1080

1x1
1x1

0.1ms~15s

STC5F-310BC

3.1M/IMX265(C, GS)
1/1.8“ (7.07x5.30)

3.45x3.45

1146mv with 1/30s
0.15mv with 1/30s

53@2048x1536

85@1024x768

1x1

1x1

0.1ms~15s

STC5F-200C

2M/IMX385(C)
1/2“ (7.2x4.05)

3.75x3.75

2350mv with 1/30s
0.15mv with 1/30s

125@1920x1080

1x1

0.1ms~15s

STC5F-150C

1.5M/IMX273(C, GS)
1/2.9“ (4.968x3.726)

3.45x3.45

1146mv with 1/30s
0.15mv with 1/30s

164@1440x1080

320@720x540

1x1

2x2

0.1ms~15s



Other Specification for STC5F Series Cameras

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-fineTM HISPVP /NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature (in Centigrade)

-10~ 50

Storage Temperature (in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port: USB3.0 High-speed Port

Display: 17” or Larger

CD-ROM



Dimension

The STC5F body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhouse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions

Literature

STC5F Series Brochure
