STC6A Series
C-mount CCD Color Digital Camera

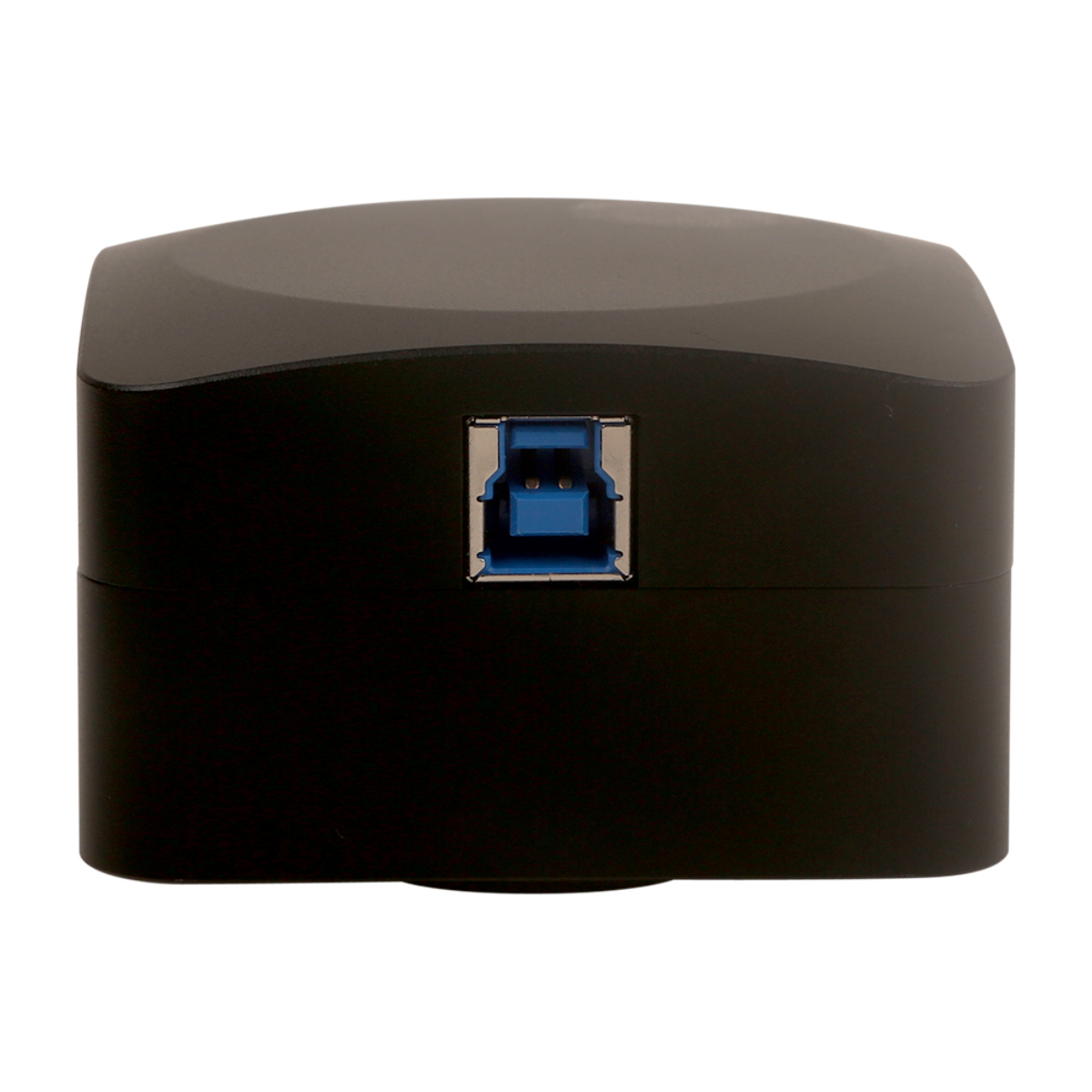

STC6A series USB3.0 CCD digital camera adopt Sony ExView HAD CCD sensor as the image capture device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. USB3.0 is used as the data transfer interface.

STC6A series cameras” hardware resolutions range from 2.8M to 6M and come with the integrated CNC aluminum alloy compact housing.

STC6A series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

The STC6A series cameras can be widely used in bright field, dark field, fluorescent light environment and microscope image capture and analysis with higher frame rate
Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature

Features

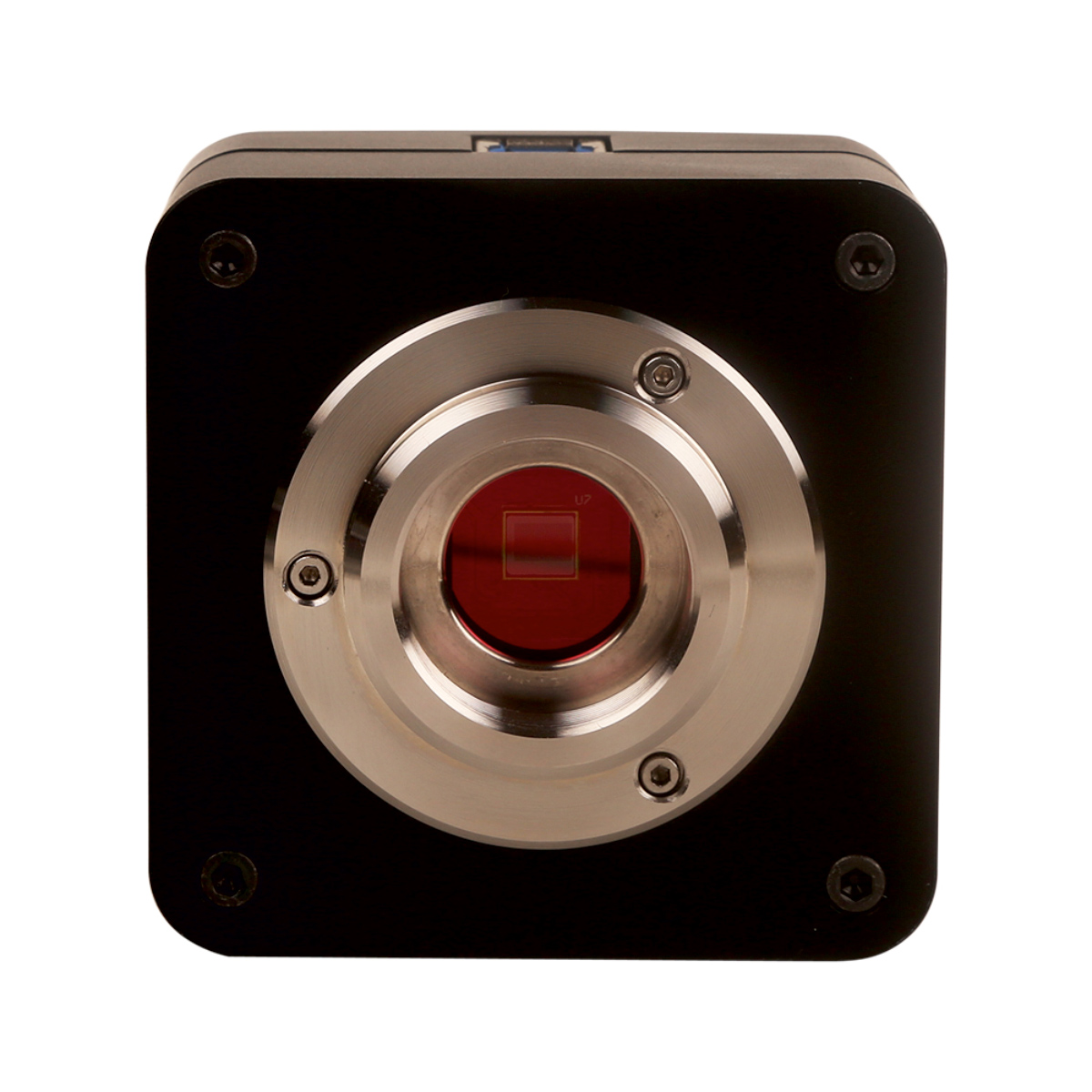

  • Standard C-Mount camera with SONY ExView HAD CCD II sensors from 2.8M ~ 6M;
  • IR-CUT Coated Windows;
  • Up to 1000s long time exposure;
  • USB3.0 5Gbit/second interface ensuring high speed data transmission;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application ImageView;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

Specifications

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

STC6A-1200C

12M/ICX834AQG(C)
1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

15.2mv with 1/30s

3.6@4248x2836
3.6@2124x1418

1x1,

2x2

0.06ms~1000s

STC6A-1200M

12M/ICX834ALG(M)
1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

12mv with 1/30s

(F8.0)

3.6@4248x2836
3.6@2124x1418

1x1,

2x2

0.06ms~1000s

STC6A-900C

9.0M/ICX814AQG(C)
1“ (12.47x9.98)

3.69x3.69

580mv with 1/30s

12mv with 1/30s

4.4@3388x2712
4.4@1694x1356

1x1,

2x2

0.06ms~1000s

STC6A-900M

9.0M/ICX814ALG(M)
1“ (12.47x9.98)

3.69x3.69

660mv with 1/30s

12mv with 1/30s

(F8.0)

4.4@3388x2712
4.4@1694x1356

1x1,

2x2

0.06ms~1000s

STC6A-600C

6.0M/ICX694AQG(C)
1“ (12.48x9.99)

4.54x4.54

880mv with 1/30s

8mv with 1/30s

7.5@2748x2200
14@2748x1092

1x1

0.06ms~1000s

STC6A-600M

6.0M/ICX694ALG(M)
1“ (12.48x9.99)

4.54x4.54

1000mv with 1/30s

8mv with 1/30s

7.5@2748x2200
14@2748x1092

1x1

0.06ms~1000s

STC6A-280C

2.8M/ICX674AQG(C)
2/3“ (8.81x6.63)

4.54x4.54

800mv with 1/30s
4mv with 1/30s

15@1938x1460
17@1610x1212

18@1930x1092

1x1

0.05ms~1000s

STC6A-280M

2.8M/ICX674ALG(M)
2/3“ (8.81x6.63)

4.54x4.54

950mv with 1/30s
4mv with 1/30s

15@1938x1460
17@1610x1212

18@1930x1092

1x1

0.05ms~1000s

STC6A-140C

1.4M/ICX825AQA(C)
2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s
4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1000s

STC6A-140M

1.4M/ICX825ALA(M)
2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s

4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1000s



Other Specification for STC6A Camera

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C# /VB.Net, DirectShow, Twain

Recording System

Still Picture and Movie

Cooling System

Natural

Operating Environment

Operating Temperature (in Centigrade)

-10~ 50

Storage Temperature (in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port: USB3.0 High-speed Port

Display: 17” or Larger

CD-ROM



Dimension of STC6A

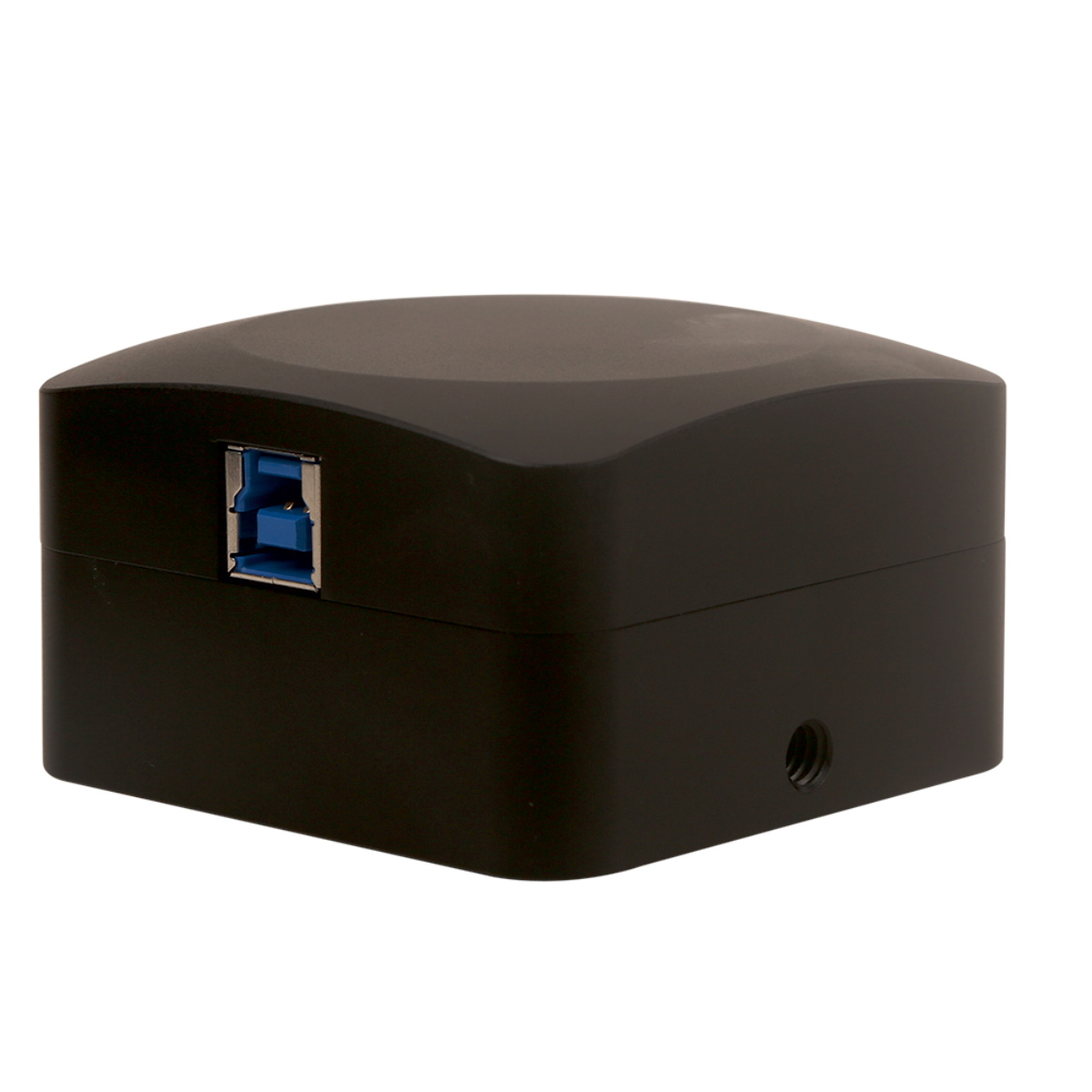

The STC6A body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.



Literature

STC6A Series Brochure
