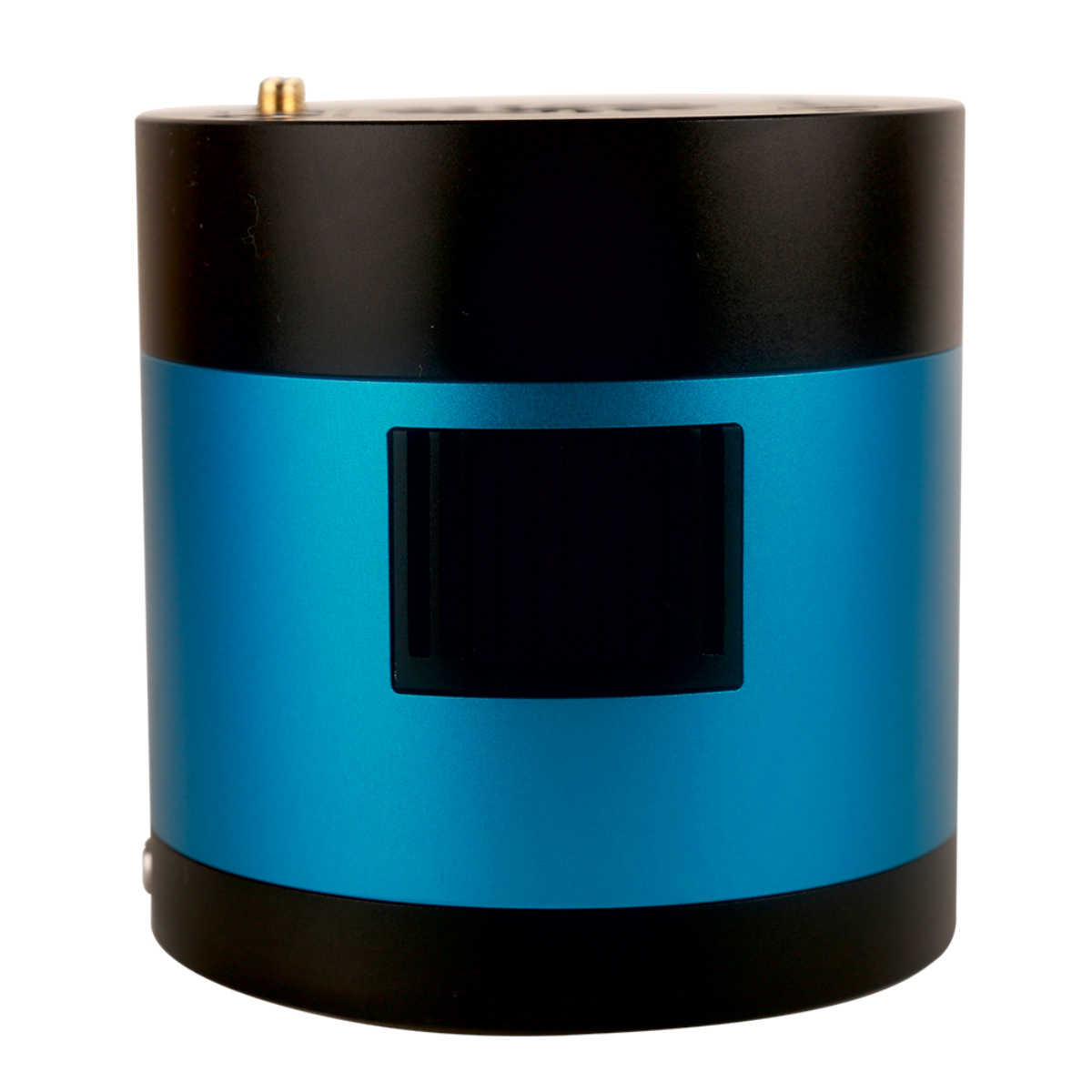

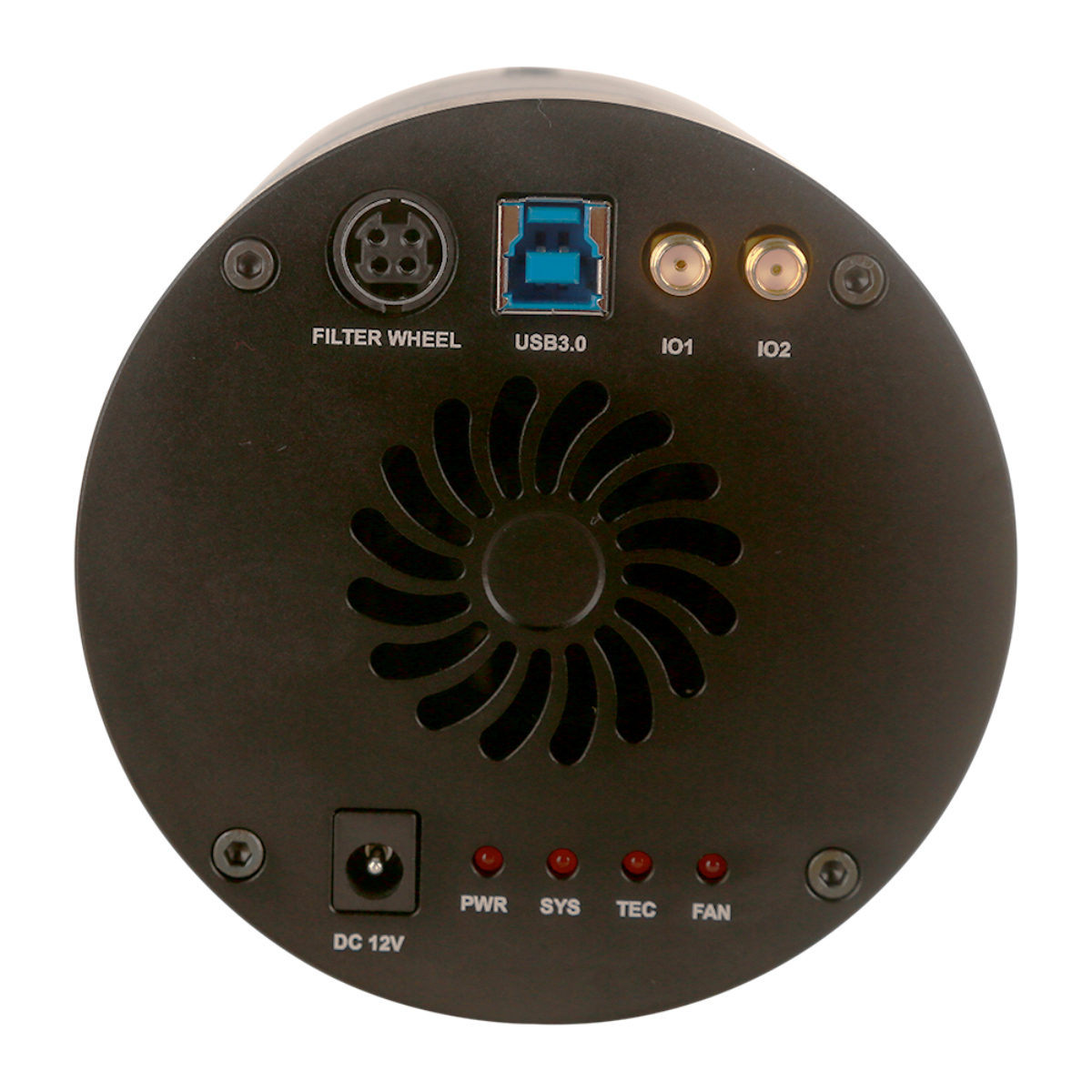

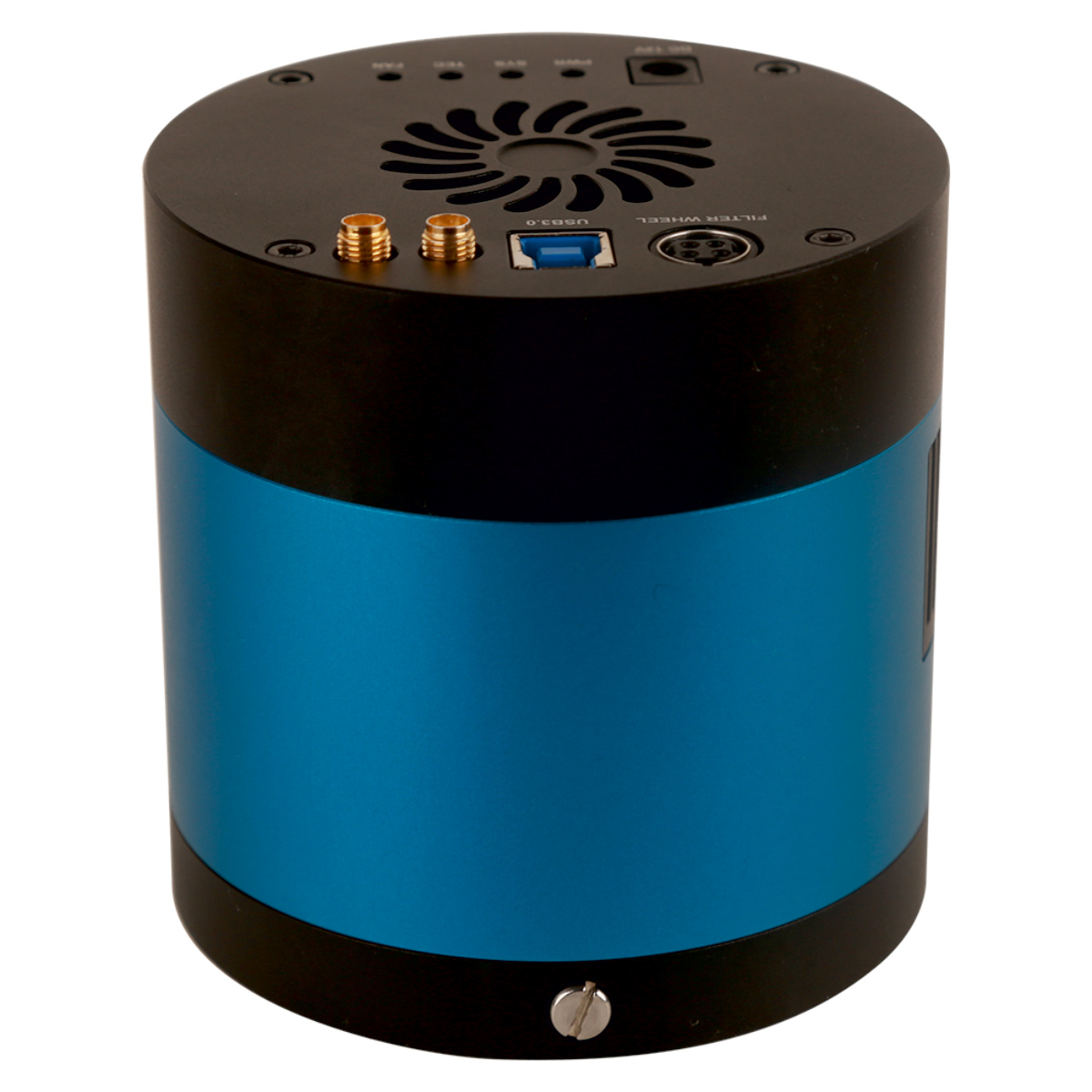

STC6B Series
C-mount CCD Color Digital Camera

STC6B series cameras adopt Sony Exview HAD CCD II sensor as the image capture device with two-stage peltier cooling sensor chip to -40 degree below ambient temperature.

The cooling temperature can be controlled by software to ensure that the photoelectric conversion quantum efficiency is as high as possible. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.

USB3.0 is used as the data transfer interface to increase the frame rate.

STC6B series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

The STC6B can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application
Quantity :
  • Features
  • Specifications
  • Application
  • Literature

Features

  • Standard C-Mount camera with SONY ExView HAD CCD II sensors from 1.4M to 12M;
  • Two-stage TE-cooling with controllable electric fan;
  • Sensor chip cooling up to 40°C below ambient temperature;
  • Working temperature can be regulated to specified temperature in 5 minutes;
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
  • IR-CUT/AR coated windows;
  • Up to 1 hour long time exposure;
  • USB3.0 5Gbit/second interface ensuring high speed data transmission;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application ImageView;
  • Support both video and trigger modes;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.NET, DirectShow, Twain control API.

Specifications

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

STC6B-1200C

12M/ICX834AQG(C)
1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

15.2mv with 1/30s

3.6@4248x2836
3.6@2124x1418

1x1,

2x2

0.06ms~1h

STC6B-1200M

12M/ICX834ALG(M)
1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

12mv with 1/30s

(F8.0)

3.6@4248x2836
3.6@2124x1418

1x1,

2x2

0.06ms~1h

STC6B-900C

9.0M/ICX814AQG(C)
1“ (12.47x9.98)

3.69x3.69

580mv with 1/30s

12mv with 1/30s

4.4@3388x2712
4.4@1694x1356

1x1,

2x2

0.06ms~1h

STC6B-900M

9.0M/ICX814ALG(M)
1“ (12.47x9.98)

3.69x3.69

660mv with 1/30s

12mv with 1/30s

(F8.0)

4.4@3388x2712
4.4@1694x1356

1x1,

2x2

0.06ms~1h

STC6B-600C

6.0M/ICX694AQG(C)
1“ (12.48x9.99)

4.54x4.54

880mv with 1/30s

8mv with 1/30s

7.5@2748x2200
14@2748x1092

1x1

0.06ms~1h

STC6B-600M

6.0M/ICX694ALG(M)
1“ (12.48x9.99)

4.54x4.54

1000mv with 1/30s

8mv with 1/30s

7.5@2748x2200
14@2748x1092

1x1

0.06ms~1h

STC6B-280C

2.8M/ICX674AQG(C)
2/3“ (8.81x6.63)

4.54x4.54

800mv with 1/30s
4mv with 1/30s

15@1938x1460
17@1610x1212
18@1930x1092

1x1

0.05ms~1h

STC6B-280M

2.8M/ICX674ALG(M)
2/3“ (8.81x6.63)

4.54x4.54

950mv with 1/30s
4mv with 1/30s

15@1938x1460
17@1610x1212
18@1930x1092

1x1

0.05ms~1h

STC6B-140C

1.4M/ICX285AQ(C)
2/3“ (8.88x6.70)

6.45x6.45

1240mv with 1/30s
10mv with 1/30s

15@1360x1024

1x1

0.07ms~1h

STC6B-140M

1.4M/ICX285AL(M)
2/3“ (8.88x6.70)

6.45x6.45

1300mv with 1/30s

11mv with 1/30s

15@1360x1024

1x1

0.07ms~1h

STC6B-140BC

1.4M/ICX825AQA(C)
2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s
4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1h

STC6B-140BM

1.4M/ICX825ALA(M)
2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s

4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1h



Other Specification for STC6B Cameras

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System

Two-stage TE-cooling System -45 °C below Camera Body Temperature

Operating Environment

Operating Temperature (in Centigrade)

-10~ 50

Storage Temperature (in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

External Power Adapter for Cooling System, DC12V, 3A

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM



Dimension of STC6B

The STC6B body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Application

The STC6B series USB3.0 cooled CCD digital cameras can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy applications as following:

  • Bright field microscope;
  • Dark field, differential interference (DIC) microscope;
  • live cell imaging, cell or histopathological examination, cytology;
  • Defect analysis, semiconductor inspection, precision measurement;
  • Weak light fluorescence imaging, GFP or RFP analysis, fluorescence in situ hybridization (FISH);
  • Resonance fluorescence transfer microscope, total internal reflection fluorescence microscope, real - time confocal microscopy, failure analysis, astronomy photography.

Features

  • Standard C-Mount camera with SONY ExView HAD CCD II sensors from 1.4M to 12M;
  • Two-stage TE-cooling with controllable electric fan;
  • Sensor chip cooling up to 40°C below ambient temperature;
  • Working temperature can be regulated to specified temperature in 5 minutes;
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
  • IR-CUT/AR coated windows;
  • Up to 1 hour long time exposure;
  • USB3.0 5Gbit/second interface ensuring high speed data transmission;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application ImageView;
  • Support both video and trigger modes;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.NET, DirectShow, Twain control API.

Specifications

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

STC6B-1200C

12M/ICX834AQG(C)
1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

15.2mv with 1/30s

3.6@4248x2836
3.6@2124x1418

1x1,

2x2

0.06ms~1h

STC6B-1200M

12M/ICX834ALG(M)
1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

12mv with 1/30s

(F8.0)

3.6@4248x2836
3.6@2124x1418

1x1,

2x2

0.06ms~1h

STC6B-900C

9.0M/ICX814AQG(C)
1“ (12.47x9.98)

3.69x3.69

580mv with 1/30s

12mv with 1/30s

4.4@3388x2712
4.4@1694x1356

1x1,

2x2

0.06ms~1h

STC6B-900M

9.0M/ICX814ALG(M)
1“ (12.47x9.98)

3.69x3.69

660mv with 1/30s

12mv with 1/30s

(F8.0)

4.4@3388x2712
4.4@1694x1356

1x1,

2x2

0.06ms~1h

STC6B-600C

6.0M/ICX694AQG(C)
1“ (12.48x9.99)

4.54x4.54

880mv with 1/30s

8mv with 1/30s

7.5@2748x2200
14@2748x1092

1x1

0.06ms~1h

STC6B-600M

6.0M/ICX694ALG(M)
1“ (12.48x9.99)

4.54x4.54

1000mv with 1/30s

8mv with 1/30s

7.5@2748x2200
14@2748x1092

1x1

0.06ms~1h

STC6B-280C

2.8M/ICX674AQG(C)
2/3“ (8.81x6.63)

4.54x4.54

800mv with 1/30s
4mv with 1/30s

15@1938x1460
17@1610x1212
18@1930x1092

1x1

0.05ms~1h

STC6B-280M

2.8M/ICX674ALG(M)
2/3“ (8.81x6.63)

4.54x4.54

950mv with 1/30s
4mv with 1/30s

15@1938x1460
17@1610x1212
18@1930x1092

1x1

0.05ms~1h

STC6B-140C

1.4M/ICX285AQ(C)
2/3“ (8.88x6.70)

6.45x6.45

1240mv with 1/30s
10mv with 1/30s

15@1360x1024

1x1

0.07ms~1h

STC6B-140M

1.4M/ICX285AL(M)
2/3“ (8.88x6.70)

6.45x6.45

1300mv with 1/30s

11mv with 1/30s

15@1360x1024

1x1

0.07ms~1h

STC6B-140BC

1.4M/ICX825AQA(C)
2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s
4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1h

STC6B-140BM

1.4M/ICX825ALA(M)
2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s

4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1h



Other Specification for STC6B Cameras

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System

Two-stage TE-cooling System -45 °C below Camera Body Temperature

Operating Environment

Operating Temperature (in Centigrade)

-10~ 50

Storage Temperature (in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

External Power Adapter for Cooling System, DC12V, 3A

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM



Dimension of STC6B

The STC6B body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Application

The STC6B series USB3.0 cooled CCD digital cameras can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy applications as following:

  • Bright field microscope;
  • Dark field, differential interference (DIC) microscope;
  • live cell imaging, cell or histopathological examination, cytology;
  • Defect analysis, semiconductor inspection, precision measurement;
  • Weak light fluorescence imaging, GFP or RFP analysis, fluorescence in situ hybridization (FISH);
  • Resonance fluorescence transfer microscope, total internal reflection fluorescence microscope, real - time confocal microscopy, failure analysis, astronomy photography.
