Stalwart

SMI-700 Series

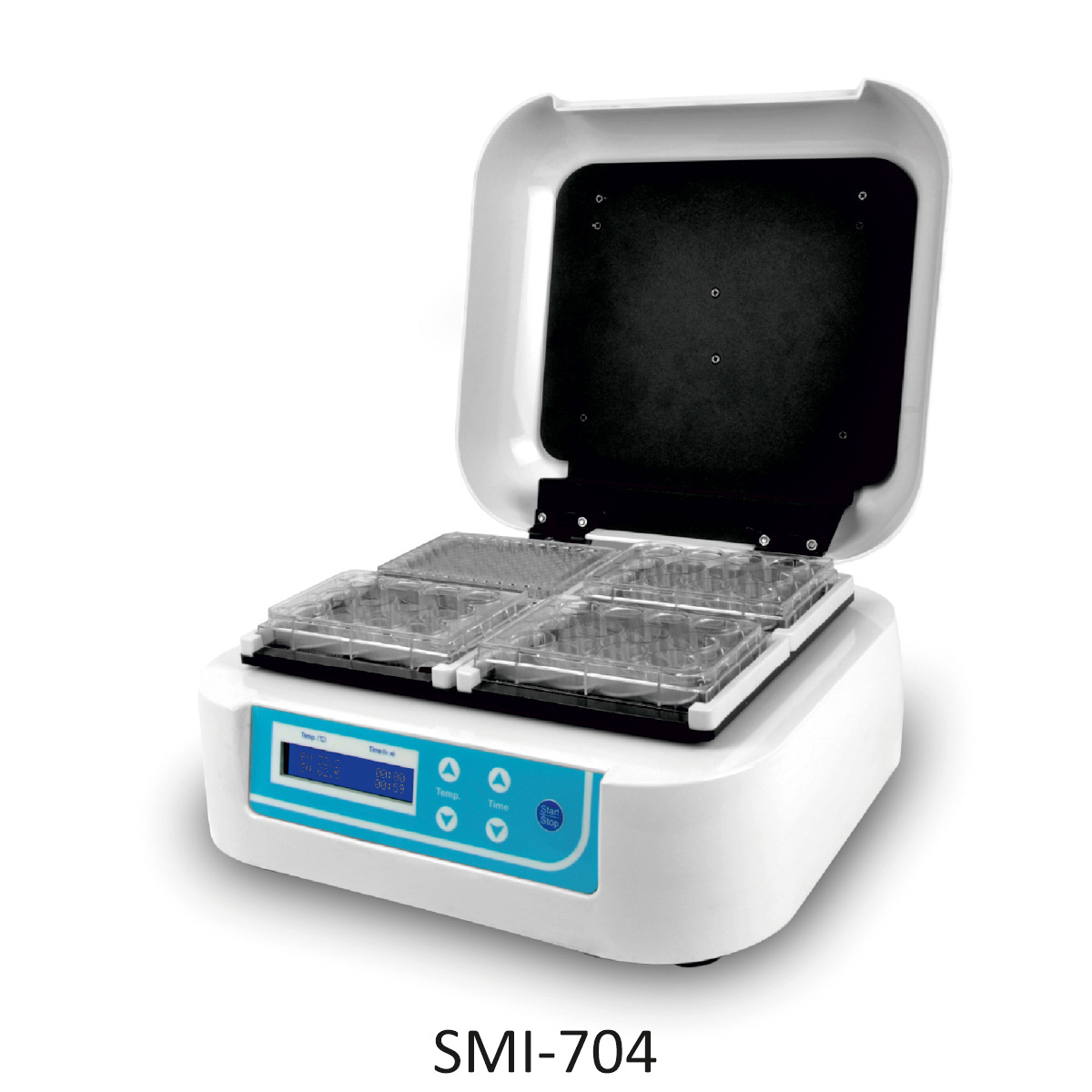

Micro-plate Incubator

Micro-plate incubator is a well-designed micro processing techniques incubator which well combined with PID controlling. It is mainly used for solution incubation of ELISA plate (96-well/384-well), cell culture plate (24-well / 48-well / 96-well) at proper temperature.

Quantity :

Add to Inquiry Basket

Features
Specifications
Literature

Features

LCD display. Setting temperature and actual temperature simultaneously displayed. Diminishing time displayed.
Friendly human-machine operation interface. Streamline shape, pretty and elegant. Convenient for cleaning.
Uniformly upper & down heating for samples in micro plates. The experiment effect is exact correspondence of the setting and actual temperature.
Microprocessor controls temperature and time, good temperature control linear, small fluctuations.
2/4 standard ELISA plates and microplates can be placed, and sound alarm signal after the program finished.

Specifications

Model	SMI-702	SMI-704
Temp. Control Range	R.T.+5℃ ~70℃	R.T.+5℃ ~70℃
Temp. Setting Range	5℃ ~70℃	5℃~70℃
Temp. Stability@37℃	±0.2℃	±0.2℃
Platform Temp. Uniformity	±0.5℃	±0.5℃
Temp. Display Accuracy	0.1℃	0.1℃
Heating Speed	<25min (20℃ to 70℃)	<25min (20℃ to 70℃)
Time Range	1min~99h59min	1min~99h59min
Sample Capacity	2 Pieces of Plates(Height＜35mm)	4 Pieces of Plates(Height＜40mm)
Voltage	AC 220V/AC 110V, 50/60Hz	AC 220V/AC 110V, 50/60Hz
Power	150W	250W
Fuse	250V, 1A/2A, Ф5x20	250V, 3A/5A, Ф5x20
Dimension	W.284 x D.264 x H.157mm	W.345 x D.310 x H.178mm
Net Weight	3.3kgs	4.9kgs

Literature

SMI-700 Series Brochure
