Stalwart

SDB-100 Series

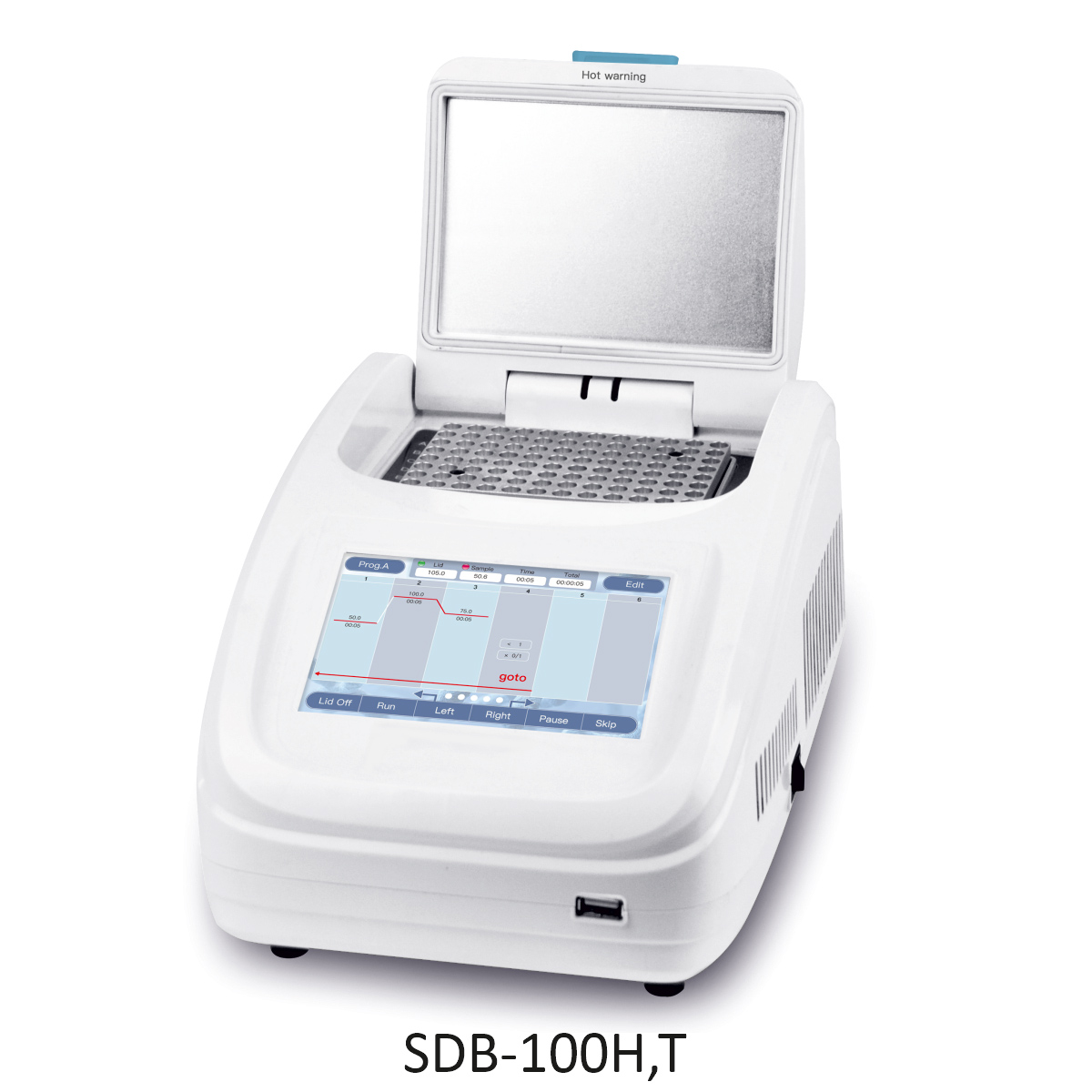

Dry Bath Incubator with Heated Lid

The Dry Bath Incubator with Heated Lid can be widely used in LAMP, NASBA, RPA, sample preservation and reaction and electrophoresis pre-denaturation, serum coagulation, nucleic acid and protein denaturation treatment.

Quantity :

Add to Inquiry Basket

Features
Specifications
Accessories
Literature

Features

Novel and unique appearance, simple interface operation, small size.
Using 5-inch TFT high-definition full-touch color screen, can quickly edit the required documents, temperature curve visual display, the setting is convenient and fast, real-time accurate display temperature curve and instrument operation process status.
Refrigeration type is based on semiconductor heating and cooling technology, and PID temperature control technology design, the rate of heating and cooling is excellent.
Ingenious elastic hot cover structure design, adaptive to different heights of the test tube, to ensure the consistency of the experiment, to achieve the best conditions of the experiment.
The hot cover temperature setting has two modes: independent setting mode, block temperature plus setting value. Built-in 10 groups of programs, each group of programs can add or delete temperature steps or cycle steps. Various types of blocks can be selected at need, easy to install and disassemble.

Specifications

Model	SDB-100H	SDB-100T
Block temp. setting range	- 10ºC~100ºC	0ºC~100ºC
Block temp. control range	(R.T.-25ºC)~100ºC	(R.T.+5ºC)~100ºC
Temp. Max. Decrease	R.T. decreases 25ºC@R.T. 26ºC	/
Hot lid temp. setting range (≤105ºC)	0~105ºC / Block+(0~105ºC)	0~105ºC / Block+(0~105ºC)
Hot lid temp. control range	R.T.+5ºC~105ºC	R.T.+5ºC~105ºC
Time range	1s ~99m59S / 0 is ∞	1s ~99m59S / 0 is ∞
Max. number of steps	10	10
Max. number of cycles	99	99
Block temp. control accuracy	±0.5ºC	±0.5ºC
Hot lid temp. accuracy	±1.0ºC	±1.0ºC
Block temp. uniformity	±0.5ºC	± 0.5ºC
Display accuracy	0.1ºC	0.1ºC
Heating time (R.T.25ºC)	Heating rate（37℃-100℃）≥7℃/min	Heating rate（37℃-100℃）≥7℃/min
Cooling time	Cooling rate（100℃-37℃）≥8℃/min	Fan cooling
Dimension	W.185xD.280xH.160mm	W.185xD.280xH.160mm
Net weight	3.2Kgs	2.7Kgs

Accessories

Cat#	Spec	Dia. of hole	Hole bottom shape	Block dimension
SDB-A	0.2ml×96	6.7mm	Cone bottom	107×71×38mm
SDB-B	0.5ml×54	8mm	Cone bottom	107×71×35mm
SDB-C	1.5ml×35	10.8mm	Cone bottom	107×71×27mm
SDB-D	2.0ml×35	10.8mm	Round bottom	107×71×27mm

Literature

SDB-100 Series Brochure

Features
Specifications
Accessories
Literature

Features

Novel and unique appearance, simple interface operation, small size.
Using 5-inch TFT high-definition full-touch color screen, can quickly edit the required documents, temperature curve visual display, the setting is convenient and fast, real-time accurate display temperature curve and instrument operation process status.
Refrigeration type is based on semiconductor heating and cooling technology, and PID temperature control technology design, the rate of heating and cooling is excellent.
Ingenious elastic hot cover structure design, adaptive to different heights of the test tube, to ensure the consistency of the experiment, to achieve the best conditions of the experiment.
The hot cover temperature setting has two modes: independent setting mode, block temperature plus setting value. Built-in 10 groups of programs, each group of programs can add or delete temperature steps or cycle steps. Various types of blocks can be selected at need, easy to install and disassemble.

Specifications

Model	SDB-100H	SDB-100T
Block temp. setting range	- 10ºC~100ºC	0ºC~100ºC
Block temp. control range	(R.T.-25ºC)~100ºC	(R.T.+5ºC)~100ºC
Temp. Max. Decrease	R.T. decreases 25ºC@R.T. 26ºC	/
Hot lid temp. setting range (≤105ºC)	0~105ºC / Block+(0~105ºC)	0~105ºC / Block+(0~105ºC)
Hot lid temp. control range	R.T.+5ºC~105ºC	R.T.+5ºC~105ºC
Time range	1s ~99m59S / 0 is ∞	1s ~99m59S / 0 is ∞
Max. number of steps	10	10
Max. number of cycles	99	99
Block temp. control accuracy	±0.5ºC	±0.5ºC
Hot lid temp. accuracy	±1.0ºC	±1.0ºC
Block temp. uniformity	±0.5ºC	± 0.5ºC
Display accuracy	0.1ºC	0.1ºC
Heating time (R.T.25ºC)	Heating rate（37℃-100℃）≥7℃/min	Heating rate（37℃-100℃）≥7℃/min
Cooling time	Cooling rate（100℃-37℃）≥8℃/min	Fan cooling
Dimension	W.185xD.280xH.160mm	W.185xD.280xH.160mm
Net weight	3.2Kgs	2.7Kgs

Accessories

Cat#	Spec	Dia. of hole	Hole bottom shape	Block dimension
SDB-A	0.2ml×96	6.7mm	Cone bottom	107×71×38mm
SDB-B	0.5ml×54	8mm	Cone bottom	107×71×35mm
SDB-C	1.5ml×35	10.8mm	Cone bottom	107×71×27mm
SDB-D	2.0ml×35	10.8mm	Round bottom	107×71×27mm

Literature

SDB-100 Series Brochure
