SDY-100 Series
Dry Bath Incubator
SDY-100C/SDY-100H has high precision of temperature control and good sample preparation parallelism with microprocessor-controlled thermostat to replace the traditional water bath devices. It can be widely used in the cultivation and preservation of samples , DNA amplification, the electrophoresis of denaturation and serum coagulation.
Application sectors throughout pharmaceutical, chemical, food safety, environment, quality inspection, etc.
Quantity :
  • Features
  • Specifications
  • Accessories
  • Literature

Features

  • Fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption and no noise.
  • Built in temperature calibration function, automatic fault detection and buzzer alarm function.
  • Built in over-temperature protection device, safe and reliable, enhance the service life of the machine.
  • Product designed compact and tight, occupied little space. Using freer and easier.
  • Various blocks for convenient replacement, easy for cleaning and disinfection.
  • Power recovery function can restore the original run automatically after recovered.(SDY-100C)
  • Programmable function. It can also set continuous operation by uncertain time(Except SDY-4C).
  • LCD display. Cool and compact designed appearance. Simultaneous display temperature and diminishing time(Except SDY--4C).

Specifications

Model

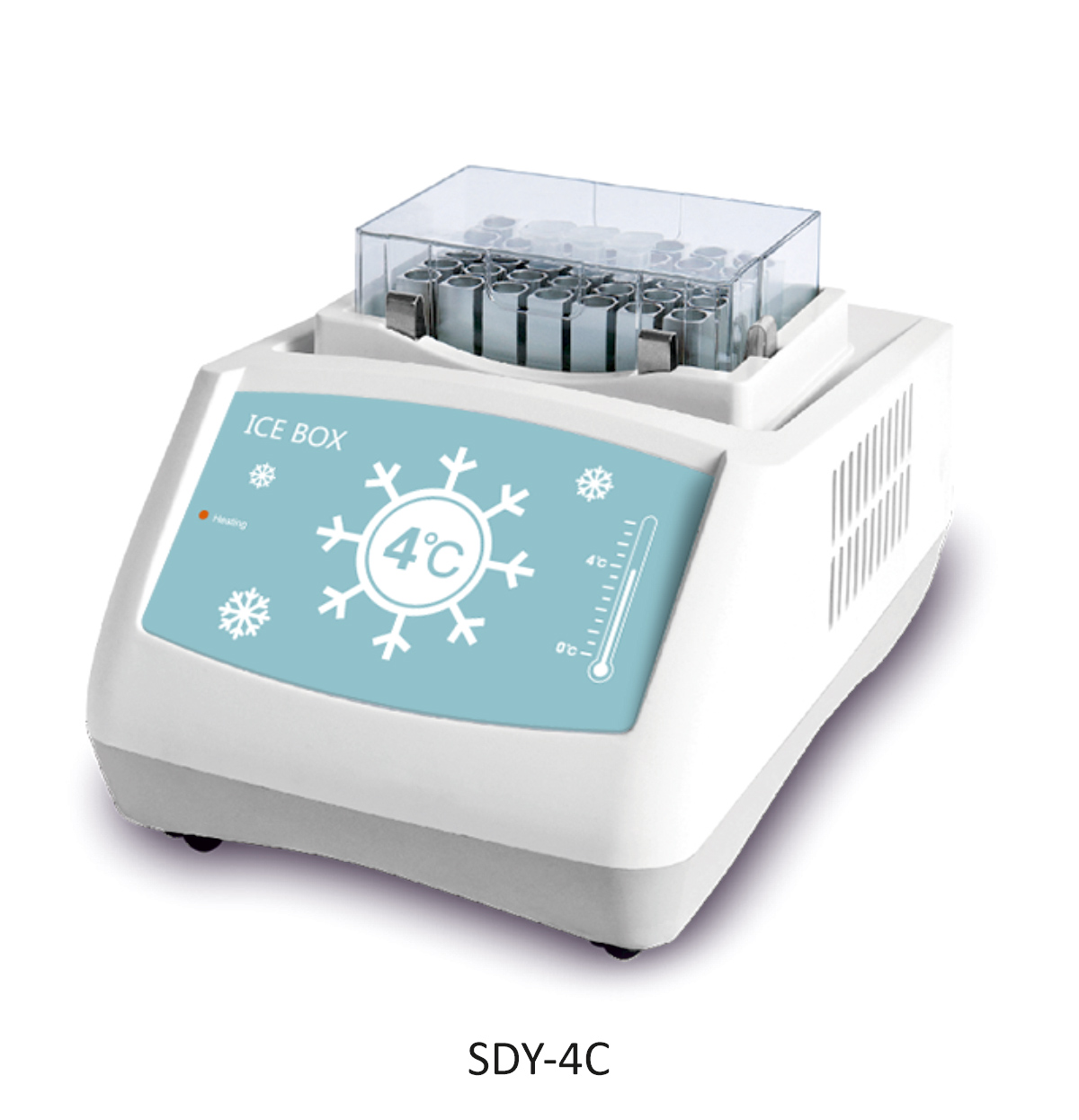

SDY-4C

SDY-100C

SDY-100H

Temp. Control Range

4℃ constant

-10℃ ~100℃

R.T.+5℃~100 ℃

Temp. Max. Decrease

/

R.T. decreases 30℃@R.T. 26℃

/

Temp. Setting Range

4℃

-10℃ ~100℃

5℃~100 ℃

Temp. Stability@100℃

/

0.5℃

0.5℃

Temp. Stability@40℃

/

±0.3℃

±0.3℃

Temp. Stability@4℃

±0.5℃

/

/

Block Temp. Uniformity

±0.5℃

±0.3℃

±0.3℃

Temp. Display Accuracy

/

0.1℃

0.1℃

Heating Speed

/

≤15min (20℃ to 100℃)

≤15min (20℃ to 100℃)

Cooling Speed

≤10min(Depending on blocks)

≤30min (R.T. decreases 30℃) @R.T. 26℃

/

Time Range

/

1min ~ 99h59min or continuous

1min~99h59min or continuous

Voltage

AC90~230V, 50/60Hz

AC90~230V, 50/60Hz

AC 220V / AC 110V, 50/60Hz

Power

100W

150W

150W

Fuse

250V, 3A, Ф5x20

250V, 3A, Ф5x20

250V, 1A/2A, Ф5x20

Dimension

W.196 x D.270 x H.170mm

W.196 x D.270 x H.170mm

W.196 x D.270 x H.170mm

Net Weight

3.5kgs

3.5kgs

2.2kgs



Accessories

Cat#

Spec

Dia.of hole

Hole Bottom Shape

Block Dimension

A

0.2 ml x 96

6.7 mm

Cone bottom

107 x 71 x 20 mm

B

0.5 ml x 54

8 mm

Cone bottom

107 x 71 x 25 mm

C

1.5 ml x 35

10.8 mm

Cone bottom

107 x 71 x 32 mm

D

2.0 ml x 35

10.8 mm

Round bottom

107 x 71 x 32 mm

E

0.5 ml x 20 + 1.5ml x 15

8 mm / 10.8mm

Cone bottom

107 x 71 x 32 mm

F

≤Φ12mm x 24

12 mm

Flat bottom

107 x 71 x 32 mm

G

0.2 ml x 32 + 1.5ml x 25

6.1 mm / 10.8mm

Cone bottom

107 x 71 x 32 mm

H

0.2 ml x 32 + 0.5 ml x 10 + 1.5ml  x 15

6.1 mm / 8 mm / 10.8 mm

Cone bottom

107 x 71 x 32 mm

I

Water Bath

103 x 67 x 30 mm

Flat bottom

107 x 71 x 32 mm

J

Flat bottom plates

Top size 69 x 107 x 12 mm

Flat plate block

116 x 71 x 15 mm

K

5 ml x 24

13.5 mm

Flat bottom

107 x 71 x 32 mm

L

15 ml x 12

16.9 mm

Flat bottom

107 x 71 x 100 mm

M

50 ml x 6

29.5 mm

Flat bottom

107 x 71 x 100 mm

N

Customized

Customized

Customized

Customized
