Stalwart

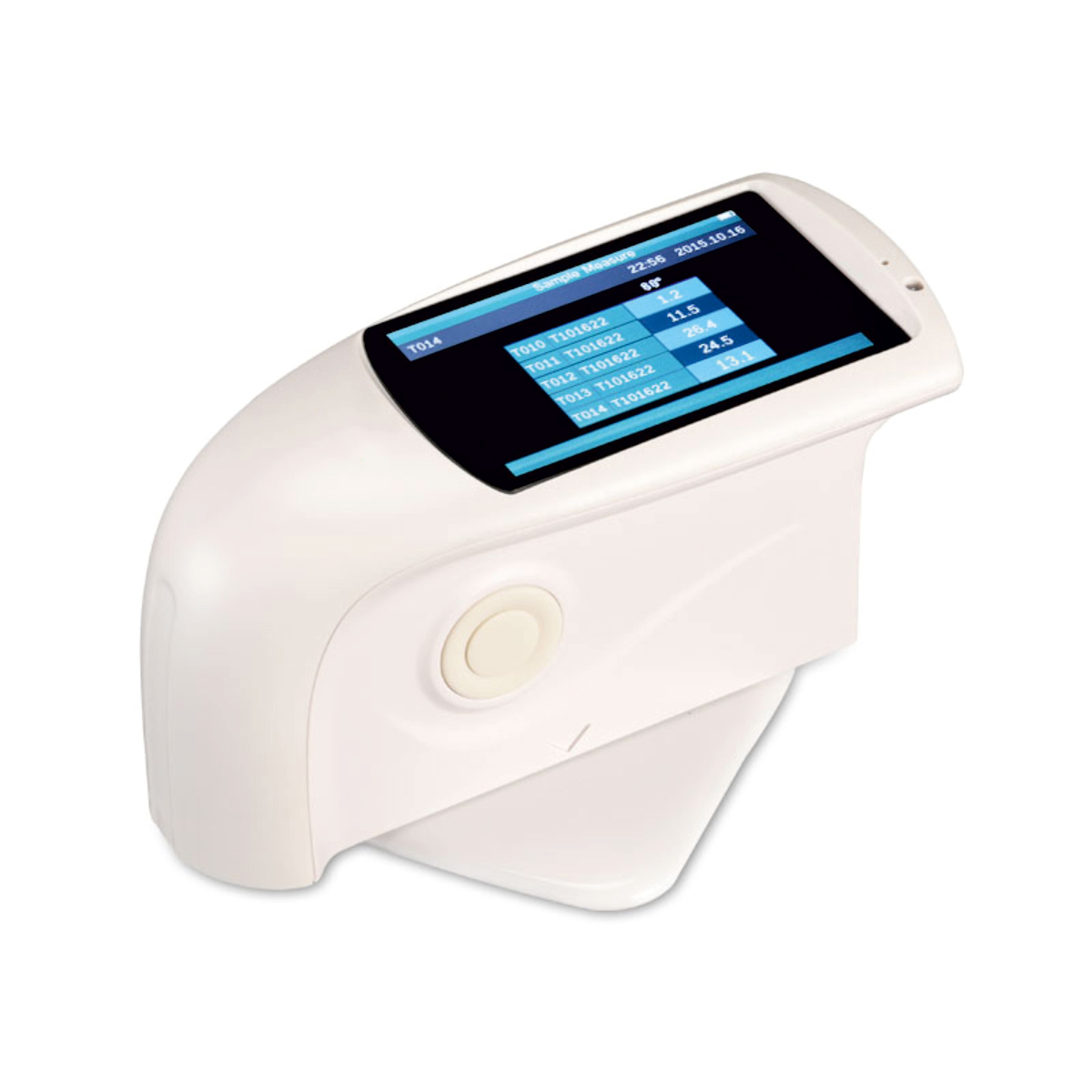

TGM268

Tri-Angle Gloss Meter

TGM268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813. It is also compatible with international standards of ASTM D523, ASTM D2457. TGM268 conforms corresponding with CIE 1931(2°) under CIE C light source. TGM268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products, marble, granite, vitrified polished le, pottery brick and porcelain; plastic, paper; hardware industries, etc.

Quantity :

Add to Inquiry Basket

Features
Specifications
Literature

Features

20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
Concise appearance, feel good
Display 5 sets of measurement data, good for comparison
Built-in lithium ion rechargeable battery
Basic model measurement can meet basic glossiness testing requirements
Connect to PC, more extend functions
One button for all angles measurement at the same location
Comply with international standards
Stable performance, easy to read data.

Specifications

Model	TGM268
Measuring Angle	20°/60°/85°° Comply with standard ISO 2813, ASTM D 523, ASTM D 2457
Measuring Area(mm)	20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range	20°:0~1000GU 60°:0~1000GU 85°:0~160GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU
Chromacity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%
Measuring Time	0.5s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Battery	3200mAh Li-ion Baery, >10000 mes(within 8 hours)
Display	TFT 3.5 inch, capacitive touch screen
Interface	USB/RS-232
Data Save	Basic mode: 1000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40°C (32~104°F)
Storage Temperature	-20~50°C (-4~122°F)
Humidity	<85% relative humidity, no condensation

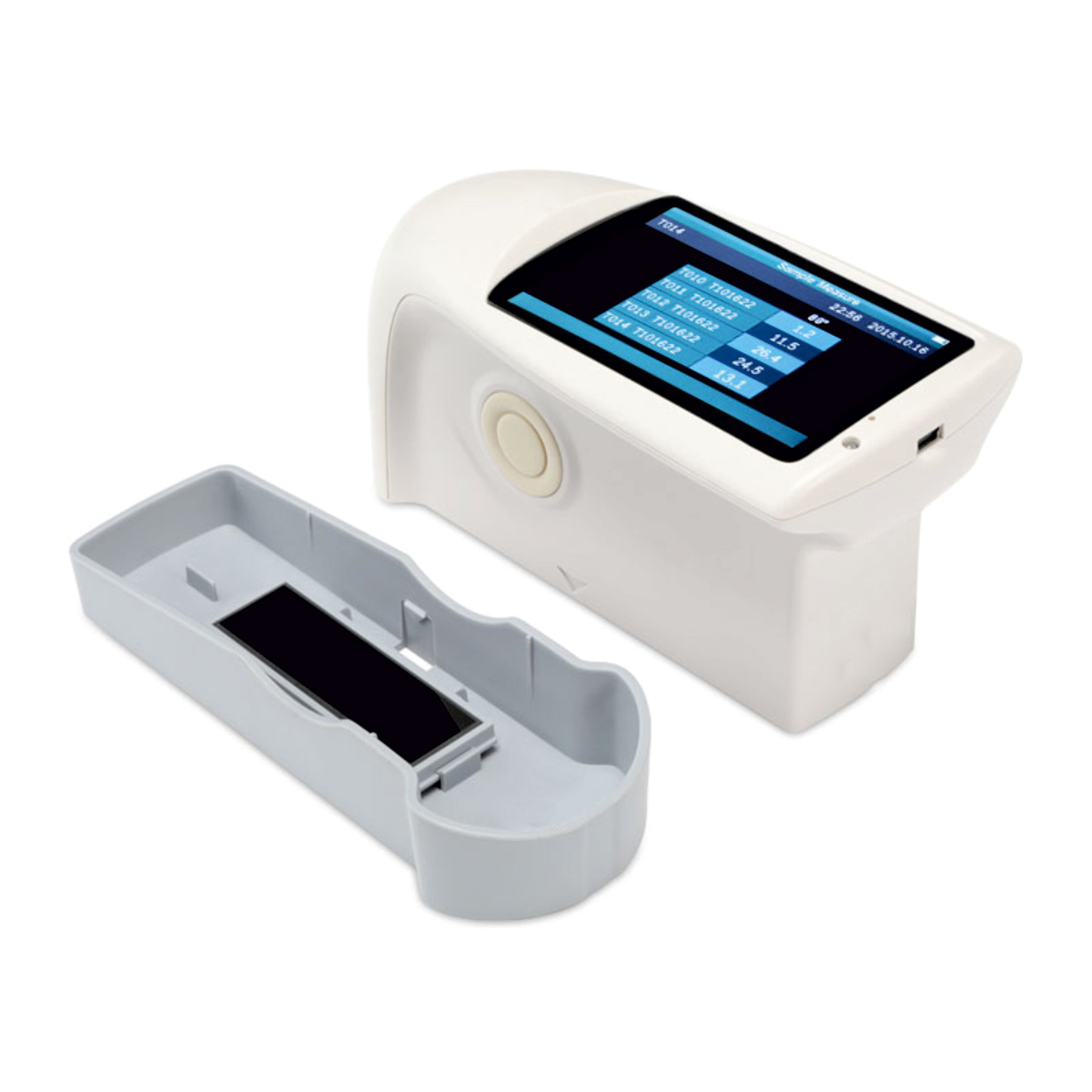

Standard Accessories	Power Adapter, USB cable, User Manual, GQC6 software CD (except TGM268), Calibration Plate
Optional Accessories	Miniature Printer

Literature

TGM268 Brochure
