Stalwart

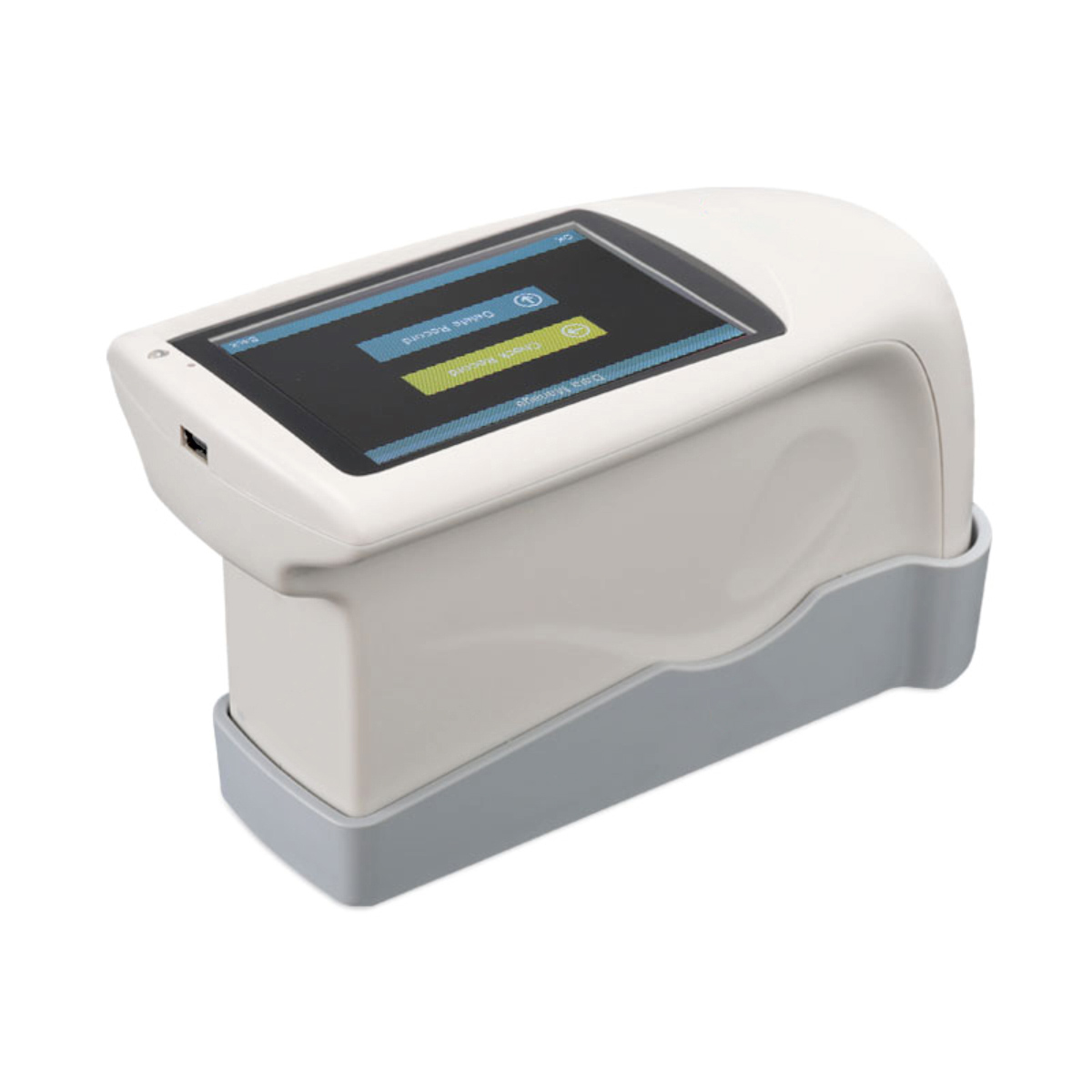

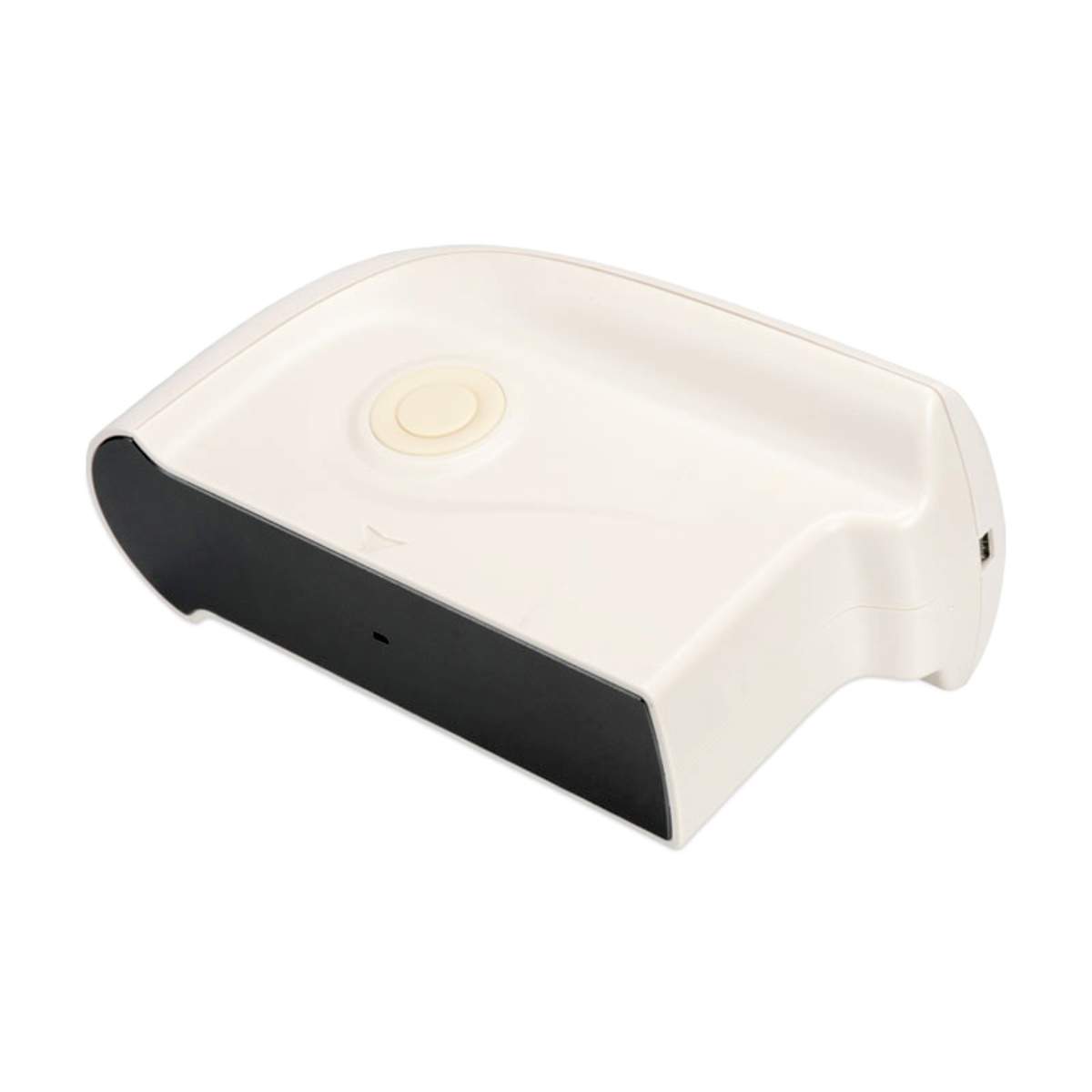

SAG60M

Small Aperture Gloss Meter

SAG60M micro aperture gloss meter adopts small aperture 1.5*2mm, with 60° angle, manufactured according to ISO2813. It is also compatible with the standards of ASTM D523, ASTM D2457. SAG60M conforms corresponding with CIE 1931(2°) under CIE C light source. SAG60M gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished le, pottery brick and porcelain, plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Quantity :

Add to Inquiry Basket

Features
Specifications
Literature

Features

Small aperture: 1.5*2mm
60° angle for semi gloss
Display 5 sets of measurement data, good for comparison
Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
Continuous mode to check uniformity over large areas
Connect to PC, more extend functions
Input gloss value manually
Large touch screen operation, easy to use
Beauty appearance, good man-machine communication interface
Powerful functions to meet many different requirements
Large storage to save over 5000 data
Built-in lithium ion rechargeable battery.

Specifications

Model	SAG60M
Measuring Angle	60° Comply with standard ISO 2813, ASTMD 523, ASTM D 2457
Measuring Area(mm)	1.5*2
Measuring Range	0~1000GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU
Chromacity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%
Measuring Time	0.5s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Battery	3200mAh Li-ion Baery, >10000 mes(within 8 hours)
Viewing Screen	TFT 3.5 inch,capacitive touch screen
Interface	USB/RS-232
Data Save	Basic mode: 1000, Statistical Mode: 5000, Continuous mode: 5000
Storage	Basic mode: 1000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40°C (32~104°F)
Storage Temperature	-20~50°C (-4~122°F)
Humidity	<85% relative humidity, no condensation
Standard Accessories	Power Adapter, USB cable, User Manual, GQC6 software CD (except EGM60S), Calibration Plate
Optional Accessories	Miniature Printer

Literature

SAG60M Brochure
