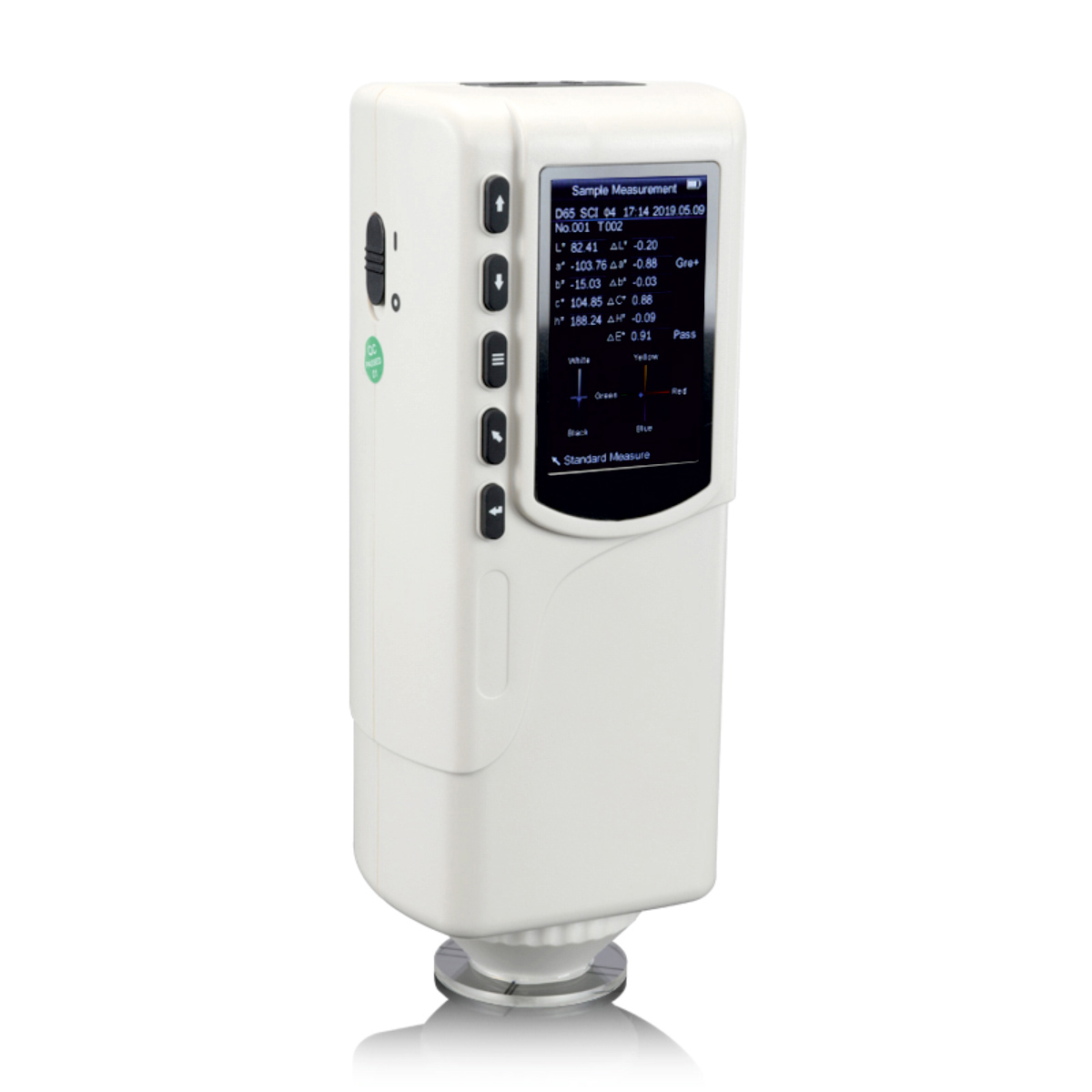

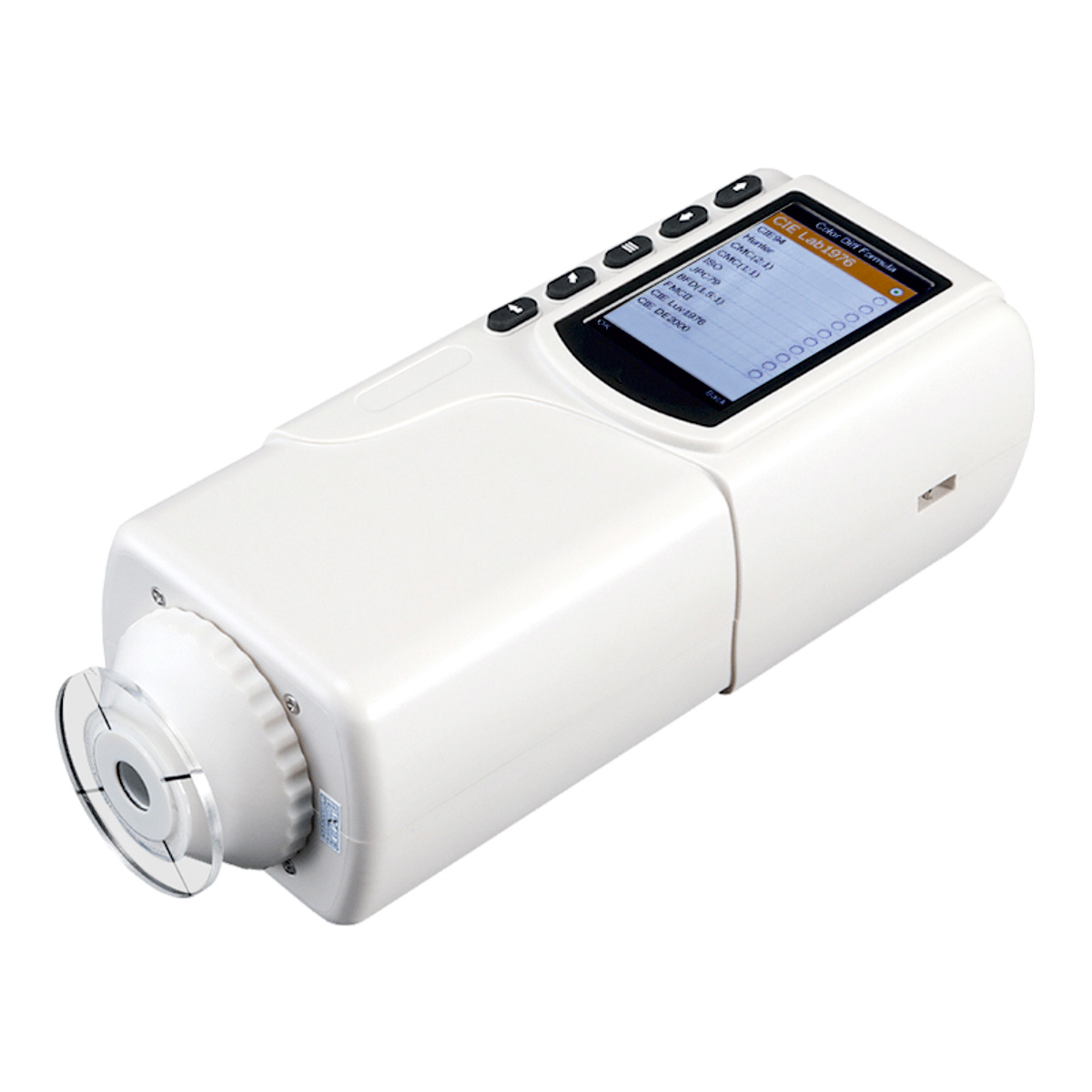

ST-CP60
Colorimeter
ST-CP60 cost-effective colorimeter has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers. Color Measurement is so easy.
Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Application
  • Literature

Features

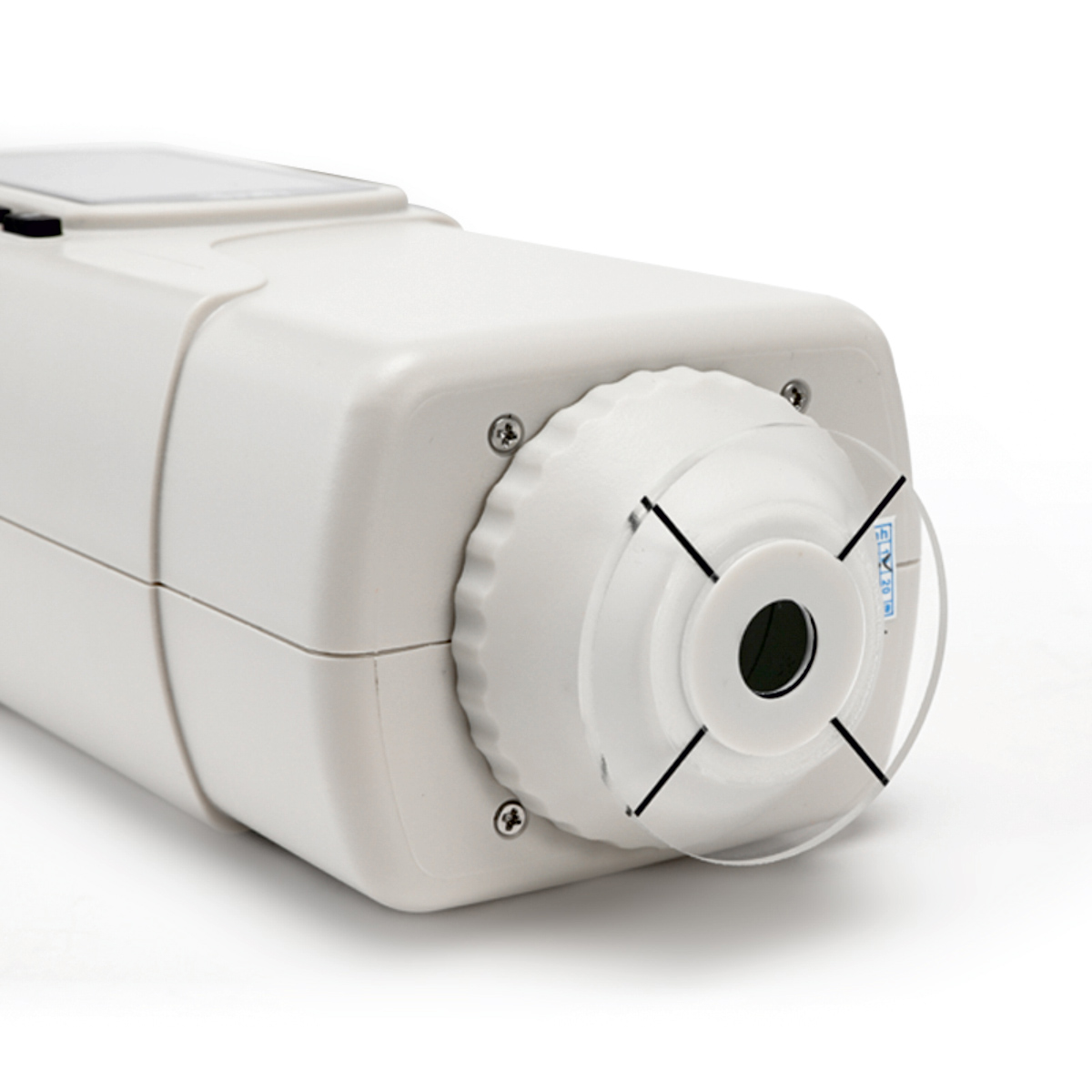

  • Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
  • Higher measurement stability and accuracy, Delta E ab<0.03.
  • More color spaces, various color indexes, extensive applicability.
  • Double locating: illuminating locating and cross locating.
  • Configured with high-capacity rechargeable Li-ion battery.
  • Built-in white plate parameters and physical white calibration board, easy to operate.
  • New integrating sphere optical path design, more stable measurement
  • Measurement data can pass national metrology authentication.

Specifications

Model ST-CP60
Illuminang/Viewing Geometry 8°/ d
Light Source LED Light
Sensor Silicon photoelectric array
Measuring aperture Φ8mmflat aperture; Φ4mmp aperture
Color Space CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Color Difference Formula ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other Chromacity Data WI ( E313,CI E, AATCC ), YI ( D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
Observer CI E 10°
Illuminant D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
Display Data Colorimetric Value, Color Difference Value/Graph, PASS/ FAIL Result, Color Offset,
Measuring Time 0.4s
Repeatability ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)
Errors between each instrument within Delta E*ab 0.2
Dimension 205*67*80mm
Weight 500g
Battery rechargeable lithium-ion baery 3. 7V @ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Screen TFT 2.8 inch? (16: 9)
Interface USB/ RS- 232
Storage 100 Standards, 20000 Samples
Operating Temperature 0~40°C (32~104°F)
Storage temperature 20~50°C (-4~122°F)
PC software CQCS3 software
Optional accessory Miniature thermal printer, powder test box



Application

ST-CP60 Colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achieve more extension functions.

Literature

ST-CP60 Brochure

Features

  • Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
  • Higher measurement stability and accuracy, Delta E ab<0.03.
  • More color spaces, various color indexes, extensive applicability.
  • Double locating: illuminating locating and cross locating.
  • Configured with high-capacity rechargeable Li-ion battery.
  • Built-in white plate parameters and physical white calibration board, easy to operate.
  • New integrating sphere optical path design, more stable measurement
  • Measurement data can pass national metrology authentication.

Specifications

Model ST-CP60
Illuminang/Viewing Geometry 8°/ d
Light Source LED Light
Sensor Silicon photoelectric array
Measuring aperture Φ8mmflat aperture; Φ4mmp aperture
Color Space CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Color Difference Formula ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other Chromacity Data WI ( E313,CI E, AATCC ), YI ( D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
Observer CI E 10°
Illuminant D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
Display Data Colorimetric Value, Color Difference Value/Graph, PASS/ FAIL Result, Color Offset,
Measuring Time 0.4s
Repeatability ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)
Errors between each instrument within Delta E*ab 0.2
Dimension 205*67*80mm
Weight 500g
Battery rechargeable lithium-ion baery 3. 7V @ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Screen TFT 2.8 inch? (16: 9)
Interface USB/ RS- 232
Storage 100 Standards, 20000 Samples
Operating Temperature 0~40°C (32~104°F)
Storage temperature 20~50°C (-4~122°F)
PC software CQCS3 software
Optional accessory Miniature thermal printer, powder test box



Application

ST-CP60 Colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achieve more extension functions.

Literature

ST-CP60 Brochure
