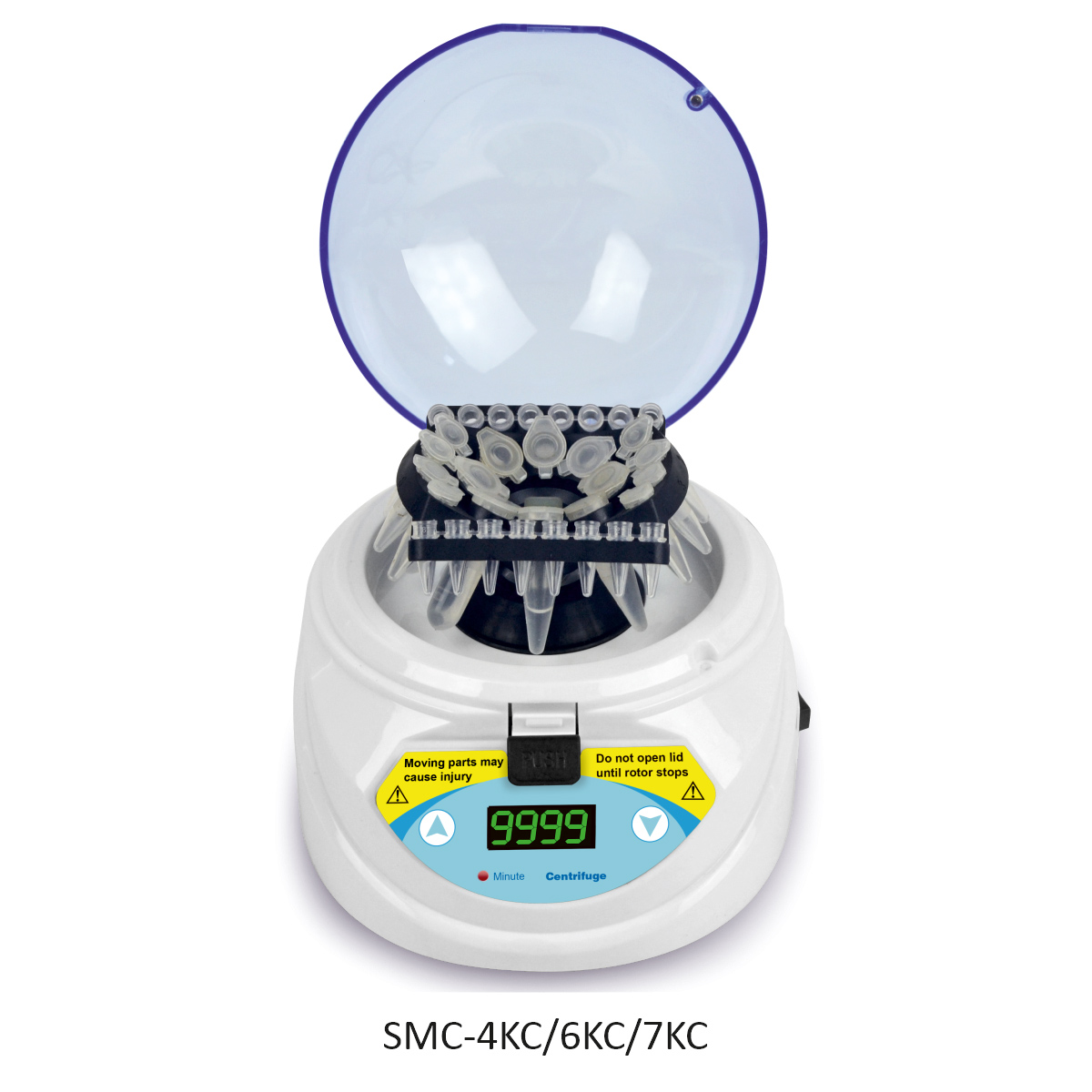

SMC-KC Series
Mini Centrifuge
SMC Centrifuge is perfect designed with novel and unique appearance. It is prey and skillful, equipped with 2 types of rotors and several types of tube carriers for 2.0ml / 0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube strips. It is designer user-friendly. Open/close the cover will automatically start/stop the centrifuge. Mini centrifuge KC series are built-in timing function.
Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature
  • User Manual

Features

  • ​Large radius rotor with 8 tube holes, centrifugal force is 1.7mes bigger than ordinary 6-hole rotor at the same rolling speed.
  • The cover press-button is outward designed with start/stop function. Press the button, the cover will open automatically to 95°, which is very convenient for one-hand operation.
  • The rotor is clip-on fixed. Very convenient for rotors exchanging yet fixed solid reliable.
  • Working is silent and stable. Free-maintenance motor, long-life and safe.
  • Smart appearance. Multi-purpose to meet different experimental demands.

Specifications

Model SMC-4KC SMC-6KC SMC-7KC
Speed Range 4000rpm 6000rpm 7000rpm
RCF approx.700g approx.700g approx.2300g
Rotor capacity 8x1.5/2.0ml, 8x0.5ml, 16x0.2ml(single tube or 2x8x0.2ml strip). (With 0.5ml and 0.2ml tube adapter) 8x1.5/2.0ml, 8x0.5ml, 16x0.2ml(single tube or 2x8x0.2ml strip). (With 0.5ml and 0.2ml tube adapter) 8x1.5/2.0ml, 8x0.5ml. Avoid to use 2x8x0.2ml PCR strips. (With 0.5ml and 0.2ml tube adapter)
Time Range 1s ~9999min or continuous 1s ~9999min or continuous 1s ~9999min or continuous
Working Noise ≤45dB ≤45dB ≤55dB
Voltage AC 220V / AC 110V, 50/60Hz AC 220V / AC 110V, 50/60Hz AC 220V / AC 110V, 50/60Hz
Power ≤45W ≤45W ≤45W
Fuse 250V, 1A, Ф5x20 250V, 1A, Ф5x20 250V, 1A, Ф5x20
Dimension W.156 x D.176 x H.121mm W.156 x D.176 x H.121mm W.156 x D.176 x H.121mm
Net Weight 1.5kgs 1.5kgs 1.5kgs



Literature

SMC-KC-Series Brochure

User Manual

SMC-4KC User Manual

SMC-6KC User Manual

SMC-7KC User Manual

Features

  • ​Large radius rotor with 8 tube holes, centrifugal force is 1.7mes bigger than ordinary 6-hole rotor at the same rolling speed.
  • The cover press-button is outward designed with start/stop function. Press the button, the cover will open automatically to 95°, which is very convenient for one-hand operation.
  • The rotor is clip-on fixed. Very convenient for rotors exchanging yet fixed solid reliable.
  • Working is silent and stable. Free-maintenance motor, long-life and safe.
  • Smart appearance. Multi-purpose to meet different experimental demands.

Specifications

Model SMC-4KC SMC-6KC SMC-7KC
Speed Range 4000rpm 6000rpm 7000rpm
RCF approx.700g approx.700g approx.2300g
Rotor capacity 8x1.5/2.0ml, 8x0.5ml, 16x0.2ml(single tube or 2x8x0.2ml strip). (With 0.5ml and 0.2ml tube adapter) 8x1.5/2.0ml, 8x0.5ml, 16x0.2ml(single tube or 2x8x0.2ml strip). (With 0.5ml and 0.2ml tube adapter) 8x1.5/2.0ml, 8x0.5ml. Avoid to use 2x8x0.2ml PCR strips. (With 0.5ml and 0.2ml tube adapter)
Time Range 1s ~9999min or continuous 1s ~9999min or continuous 1s ~9999min or continuous
Working Noise ≤45dB ≤45dB ≤55dB
Voltage AC 220V / AC 110V, 50/60Hz AC 220V / AC 110V, 50/60Hz AC 220V / AC 110V, 50/60Hz
Power ≤45W ≤45W ≤45W
Fuse 250V, 1A, Ф5x20 250V, 1A, Ф5x20 250V, 1A, Ф5x20
Dimension W.156 x D.176 x H.121mm W.156 x D.176 x H.121mm W.156 x D.176 x H.121mm
Net Weight 1.5kgs 1.5kgs 1.5kgs
