Automatic Door
Just push the chamber door gently, the system will lock automatically, click the open button, and the chamber door will open automatically.
Air Filtration
Equipped with imported air filter, the filtering effect can reach 0.1um level, and the performance is much better than the traditional 0.2um level, so as to ensure that the clean gas enters the cavity.
Rapid Cooling System
After sterilization, the coil type jacket is filled with cold water, and the rapid cooling system is started to speed up the cooling process, especially suitable for cooling after sterilization of liquid culture medium
Pulse pre vacuum+ vacuum drying
Use the world’s first class vacuum pump to ensure good pre vacuum effect and fast vacuum drying speed
PLC industrial control system
Professional industrial control system, with high stability, realizes full-automatic dynamic control of sterilization process, and can be easily maintained, queried, verified, recorder expanded and upgraded
Independent steam generator
It adopts high-power three-way heating devices to automatically generate steam to supply the chamber of sterilizer, and has the functions of automatic control of water inflow, heating, dry burning prevention, overpressure prevention, etc
Six stage steam exhausting
Six different exhaust speeds can be selected after sterilization to speed up the cooling process and prevent overheating.
Zero steam discharge, drainage temperature can be set
Provide large capacity water tank, when can set the temperature of sterilization water discharge

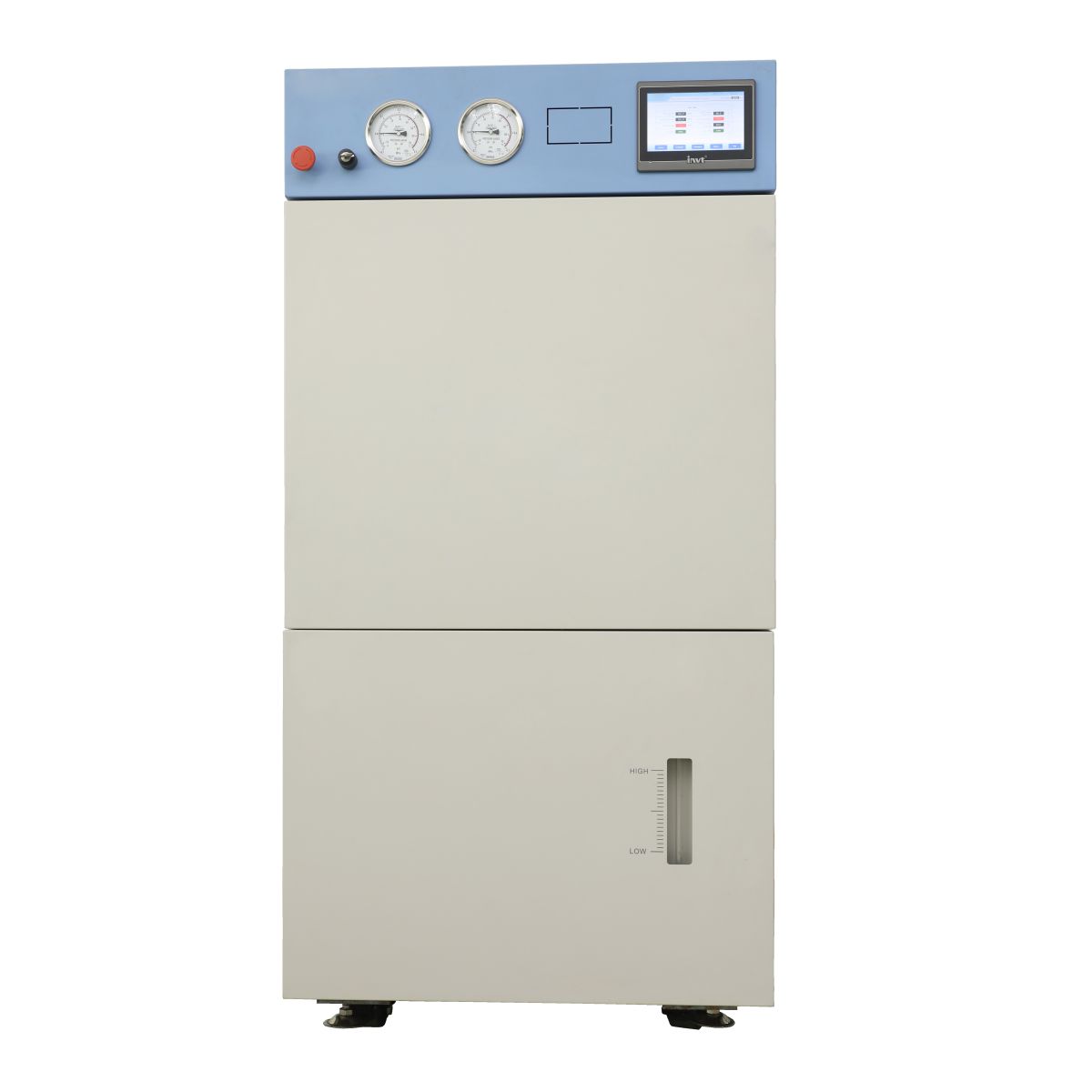

LCD touch screen
Multilingual LCD touch screen, dynamic display of various states by means by text, data and diagram, convenient man-machine dialogue editing operation steps by means of touch control
|
Model |
SGW-180DQ |
SGW-280DQ |
|
Capacity (L) |
180 |
280 |
|
Dimension (LxWxH)(mm) |
800x1450x1500 |
|
|

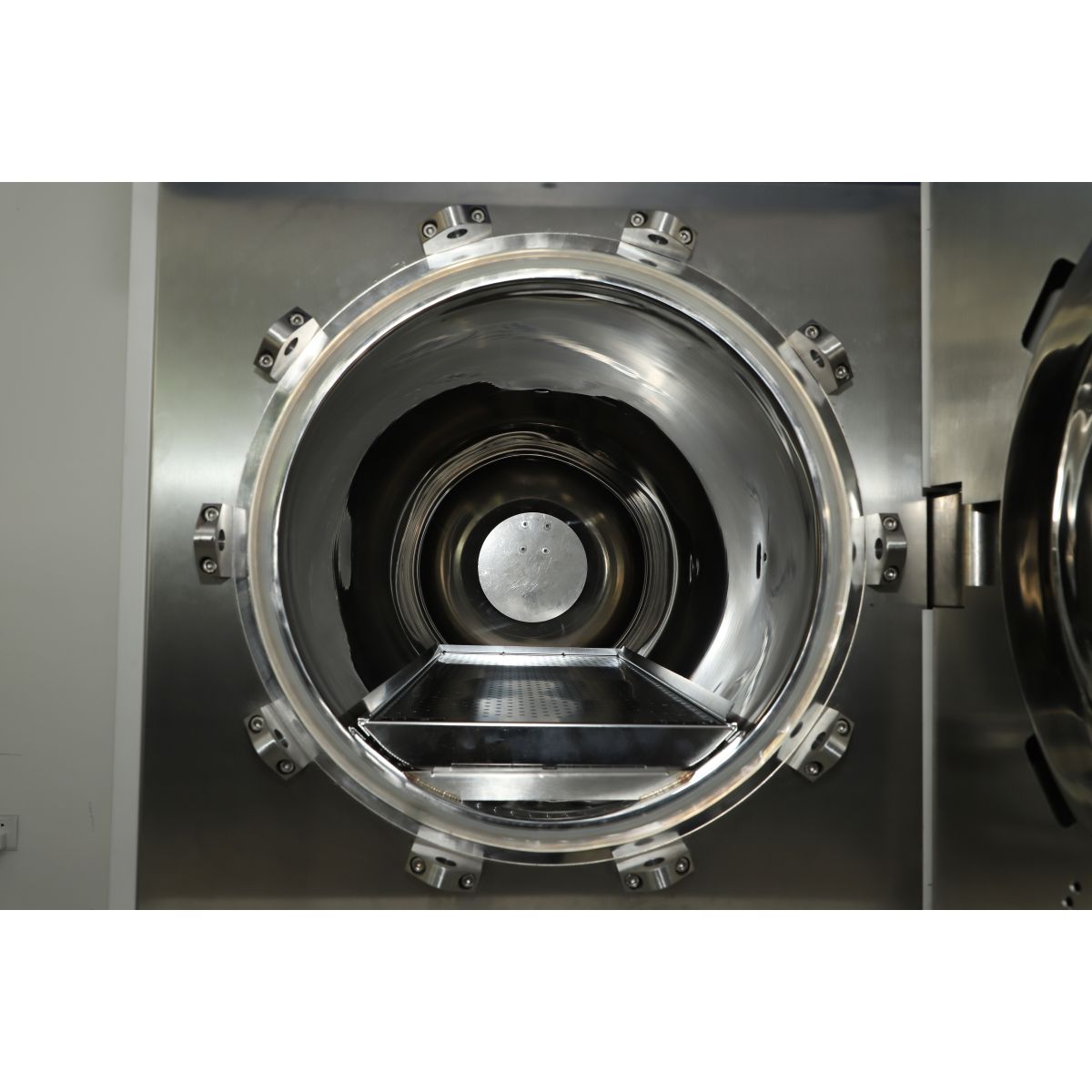

Chamber Dimension(mm) |
Ø500x1000 |
Ø600x1000 |
|
Net Weight |
650Kg |
720Kg |
|
Power |
16W |
|
|
Chamber Material |
SUS304 |
|
|
Sterilization Temperature |
115-135°C |
|
|
Rated Working Pressure |
0.25Mpa |
|
|
Pressure Gauge Range |
-0.1-0.5Mpa |
|
|
Safety valve pipping pressure |
0.29Mpa |
|
|
Sterilization time range |
1-6000 minutes |
|
|
Drying time range |
0-300 minutes |
|
|
Pulse times |
1-99 times |
|
|
Vacuum degree |
≤-93kpa |
|
|
Vacuum leakage rate |
<0.13kpa/minute |
|
|
Controller |
PLC industrial control system |
|
|
Sterilization mode |
Fabric, Device, Liquid, B-D test, Vacuum test, self-defined |
|
|
Safety device |
Evenly distributed inter locker, auto door lock, water level detection, safety valve, over pressure protection, trouble shooting, electric protection. |
|
|
Accessory |
Stainless steel with wheel (x2), storage plate |
|
|
Option |
Load thermometer, printer, water supply pressure sensor, trolley,3Q interface, 3Q/4Q calibration |
|
|
H models |
Material can be updated to SUS316 controller updated to Siemens industrial control system |
|
|
Power supply |
Three phase five wire system,380V, 50/60HZ, |
|
