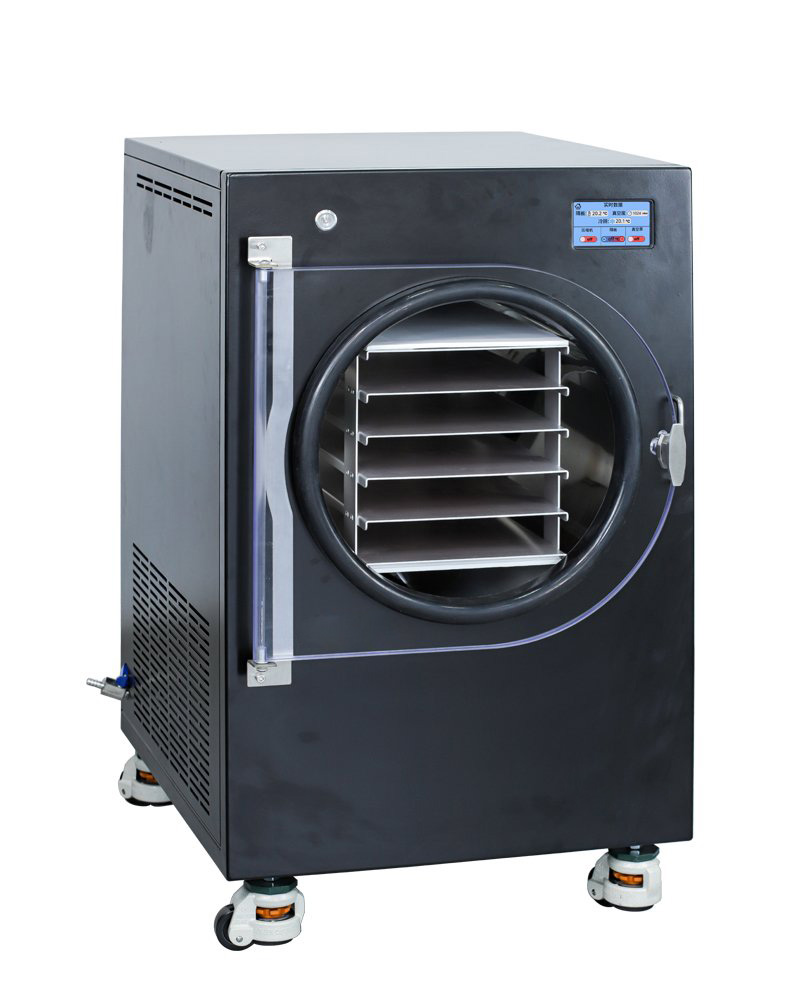

Model |
STFD-50 |
|
|
Basic |
Type |
Floor standing |
|
Door |
Front open |
|
|
Ice condenser |
Temperature |
-45°C |
|
Max. ice capacity |
7 kg |
|
|
Control |
Display |
4.3" Touch screen |
|
Ice condenser temperature display |
Yes |
|
|
Tray temperature display |
Yes |
|
|
Vacuum degree display |
Yes |
|
|
Vacuum gauge type |
Thermocouple |
|
|
Vacuum degree |
0.2 mbar |
|
|
Vacuum venting |
Manual |
|
|
Hot gas defrosting |
Yes |
|
|
Cooling system |
Number of compressor |
1 |
|
Compressor brand |
SECOP |
|
|
Power |
Power supply |
220/50;220/60;120/60（V/Hz) |
|
Rated power |
1300 W |
|
|
Noise level |
Freeze dryer |
52 (dB) |
|
Dimensions |
Main unit (W x D x H) |
560 x 650 x 915 mm |
|
Weight |
Main unit |
100 kg |
|
Tray |
Batch capacity |
6 ~ 8 kg |
|
Usable area |
0.56 ㎡ |
|
|
Number of trays |
5 |
|
|
Tray size |
220 x 510 mm |
|
|
Tray material |
Stainless steel |
|
|
Vacuum pump |
Vacuum pump |
Yes |
|
Oil mist filter |
Yes |
|
|
Vacuum pump hose |
Yes |
|
|
